Ball Valve in Liquid Ammonia Service: Reliable GKV225G Series by GEKO Valves

                                             GKV225G Ball Valve for Liquid Ammonia Service | GEKO Valves

GEKO GKV225G ball valve is specially designed for liquid ammonia service, featuring cryogenic resistance, bubble-tight shut-off and full safety certification. Ideal for refrigeration, chemical and fertilizer ammonia pipeline systems.

Liquid ammonia (NH₃) is a widely used medium in industrial refrigeration, chemical manufacturing, fertilizer production and flue gas denitrification. Characterized by low temperature, corrosiveness, toxicity and flammability, liquid ammonia puts forward extremely strict requirements on pipeline control valves. As a mainstream flow control component, ball valves are the preferred option for liquid ammonia working conditions thanks to fast switching, low flow resistance and excellent sealing performance. Among numerous products, the GEKO GKV225G series ball valve is professionally developed for liquid ammonia service, delivering stable, safe and long-lasting operation for ammonia process systems.

Why Ball Valves Are Preferred for Liquid Ammonia Service

Liquid ammonia operates at a typical temperature of -33°C under normal pressure, and it will cause corrosion and embrittlement to unqualified valve materials. Compared with gate valves, globe valves and other types, ball valves show obvious advantages in ammonia pipelines:

1.Bubble-tight shut-off: Effectively prevent leakage of toxic liquid ammonia and meet international fugitive emission standards.

2.Quarter-turn operation: Realize rapid opening and closing, which is critical for emergency cut-off of ammonia systems.

3.Low pressure loss: Straight-through flow structure ensures high conveying efficiency for liquid ammonia.

4.Strong cryogenic adaptability: Professional material and sealing design keep stable performance under sub-zero temperature.

For safety-critical liquid ammonia service, standard industrial valves cannot meet long-term operating demands. Customized ball valves such as GEKO GKV225G become the reliable guarantee for production.

Core Technical Requirements for Liquid Ammonia Ball Valves

To adapt to liquid ammonia media, valves must comply with IIAR 2, ASME B31.3, API 607 and other industry specifications. Material selection and structural design are the core:

• - Copper, brass and bronze materials are forbidden to avoid stress corrosion cracking caused by ammonia.
• - Valve body, ball and stem need low-temperature resistant steel materials to resist cold brittleness.
• - The sealing assembly must use ammonia-resistant materials to prevent aging and leakage.
• - Equipped with blow-out proof stem, anti-static device and fire-safe structure for full safety protection.
• - All products need strict hydrostatic and pneumatic testing before delivery.

Every design detail of the GEKO GKV225G ball valve fully follows the above standards, targeting the harsh working conditions of liquid ammonia.

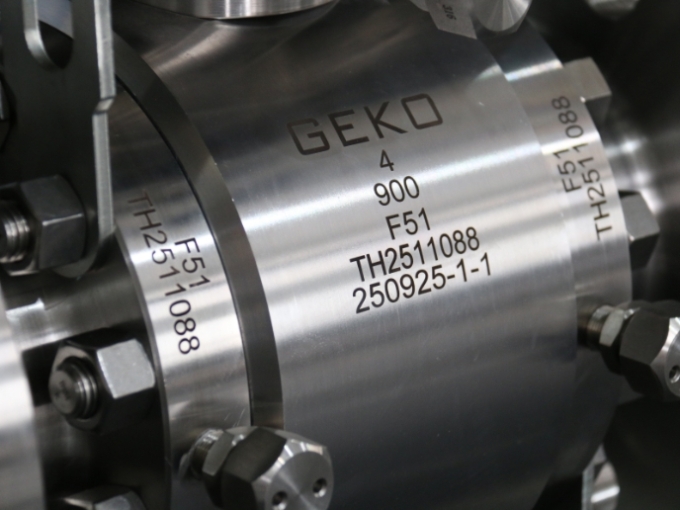

GEKO GKV225G Series Ball Valve: Professional Solution for Liquid Ammonia Service

GEKO Valves has rich experience in severe service valve R&D and manufacturing. The GKV225G series ball valve is our flagship model dedicated to liquid ammonia service, optimized in structure, material and performance for ammonia storage, transmission and process control systems.

Main Features of GEKO GKV225G Ball Valve

• Premium Material Configuration The GKV225G ball valve adopts low-temperature carbon steel and 316L stainless steel as standard materials, which have excellent low-temperature toughness and ammonia corrosion resistance. It can stably work within the temperature range of -46°C to 150°C, perfectly adapting to the conventional operating temperature of liquid ammonia. Copper alloy parts are completely excluded to eliminate hidden dangers of corrosion.
• Zero-Leakage Sealing System Matched with ammonia-resistant PTFE and PEEK combined seat seals and multi-layer stem sealing structure, GKV225G achieves ISO 15848-1 fugitive emission certification and ISO 5208 Rate A tight shut-off performance. It thoroughly solves the leakage problem of toxic liquid ammonia and protects on-site personnel and the environment.
• Integrated Safety Design All GKV225G liquid ammonia ball valves are equipped with blow-out proof stem, anti-static device and API 607 fire-safe structure. The vented ball design avoids internal pressure trapping, fully meeting the safety norms of ammonia chemical plants and refrigeration systems.
• Flexible Installation & Operation The GKV225G series provides full port and reduced bore two structural options, covering DN15 to DN300 sizes and PN16 to PN40 pressure grades. It adopts ISO 5211 standard mounting platform, which is compatible with manual, pneumatic, electric and hydraulic actuators, supporting on-site manual control and remote automatic emergency cut-off.
• Strict Factory Testing Each GEKO GKV225G ball valve undergoes 100% shell pressure test, seat sealing test and cryogenic performance test before leaving the factory. Strict quality control ensures no failure during long-term field operation and greatly reduces later maintenance costs.

Application Scenarios of GEKO GKV225G Ball Valve

Tailored for liquid ammonia service, the GKV225G series is widely used in multiple industries:

•  - Industrial refrigeration systems for cold storage and food processing
•  - Fertilizer plants and ammonia synthesis production lines
•  - Petrochemical and fine chemical ammonia delivery pipelines
•  - Liquid ammonia storage tanks and terminal loading/unloading systems
•  - Power plant flue gas denitrification ammonia supply systems

Why Choose GEKO GKV225G Ball Valve for Liquid Ammonia Service

Safety is the top priority for liquid ammonia production and transportation. Ordinary valves are prone to leakage, material damage and failure under long-term ammonia medium erosion. As a professional ammonia-specific product, GEKO GKV225G ball valve is designed for working conditions, compliant with global industrial standards, and combines safety, durability and economy.

Choosing GKV225G means:

• Effectively reducing safety risks caused by ammonia leakage
• Extending valve service life and cutting downtime and maintenance expenses
• Supporting manual and automatic control to match different process requirements
• Enjoying professional technical support and complete after-sales service from GEKO Valves

Conclusion

Liquid ammonia service requires high-standard, targeted fluid control equipment. Ball valves are the most suitable valve type for ammonia pipelines, and the GEKO GKV225G series ball valve stands out with professional design, reliable performance and comprehensive safety configuration.

Whether you are renovating old pipelines, building new ammonia systems or replacing failed valves, GEKO GKV225G liquid ammonia ball valve can provide you with a cost-effective and safe solution.

If you want to know more about parameters, specifications and customized solutions of GKV225G ball valve, please contact GEKO Valves professional team at any time.
