Vena Contracta and Cavitation

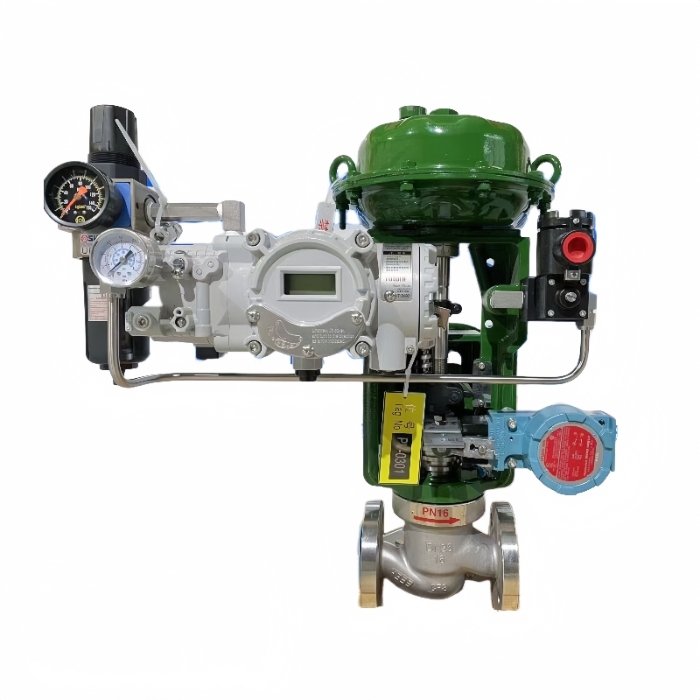

In process industries, we are used to talking about valve opening, flow rate, and pressure differential. However, if we look at a control valve through the lens of fluid mechanics, we quickly realize that it is far more than a simple mechanical device for regulating flow.   A control valve is, in fact, a precise energy conversion machine.   Why does a high pressure drop generate deafening noise? Why can a seemingly solid metal valve plug be “eaten away” by water through cavitation?   The answers lie in the constant competition between pressure (potential energy) and flow velocity (kinetic energy).   At GEKO, understanding this balance is fundamental to designing reliable and efficient control valves for demanding industrial applications.   01 Redefining the Control Valve: An “Energy Dissipator”   Ask an operator what a control valve does, and the answer is simple:   “It controls flow.”   Ask a fluid mechanics engineer, and the answer changes:   “A control valve is a variable resistance element that introduces pressure loss.”   The true function of a control valve is not to directly command how fast the fluid flows, but to change the flow area, forcing the fluid to consume part of its energy (pressure) and thereby alter its flow condition.       There is no free lunch in flow control.   To regulate flow, you must pay with pressure drop (ΔP).   So where does the energy go?   Most of the lost pressure does not disappear. Instead, it is converted into:   Heat (a slight temperature rise), Sound (noise), Mechanical vibration.   This process is known as energy dissipation, and it defines the real working nature of a control valve.   02 Bernoulli Equation: The Seesaw Between Pressure and Velocity   When fluid flows through a valve, it must obey the law of energy conservation.   For incompressible fluids such as water, this relationship is described by the Bernoulli equation.   There are two key players:    - Static Pressure (P) – the fluid’s potential energy    - Dynamic Pressure – the energy associated with fluid motion (velocity)   Bernoulli Equation:   Key diagram: Cross-sectional view of pressure/velocity inside the valve:          (Illustration: When a fluid flows through a narrow area, its speed rises sharply and the pressure drops sharply.)   Physical Process Explained   Acceleration through restriction When fluid is forced through the narrow gap between the valve plug and seat, its velocity must increase sharply in order to pass through.   Sudden pressure drop According to Bernoulli’s principle, when velocity increases, pressure must decrease. This is like a roller coaster: kinetic energy rises while potential energy falls.   This pressure–velocity tradeoff is at the heart of control valve fluid dynamics.   03 Vena Contracta: The Dangerous Eye of the Storm   One of the most critical concepts in control valve physics is the vena contracta.   The vena contracta is not the physical valve opening.   It is located a very short distance downstream of the valve seat, where:   Flow area is the smallest, Flow velocity is the highest, Pressure is the lowest         Why Is It So Important?   Because most destructive valve failures originate here.   If the pressure at the vena contracta (Pvc) drops below the saturated vapor pressure of the liquid, the fluid will instantly boil and form vapor bubbles — this is flashing. If pressure later recovers, those bubbles collapse violently, leading to cavitation, which can severely damage valve internals.   04 Pressure Recovery: A Double-Edged Sword in Valve Design     After fluid passes the vena contracta, the flow path expands. Velocity decreases, and pressure begins to rise again. This phenomenon is called pressure recovery.   A key dimensionless parameter is used to describe this behavior:   Pressure Recovery Factor (FL).   Pressure recovery coefficient formula:   The FL value indicates how effectively a valve converts kinetic energy back into pressure.   Two Valve Types, Two Very Different Outcomes   1.High-Recovery Valves (Ball Valves, Butterfly Valves) - Low FL value   Smooth flow path, like a racetrackPressure drops deeply, then recovers strongly.   Advantages   High flow capacity   Disadvantages   Extremely low Pvc, Very high risk of cavitation.   2. Low-Recovery Valves (Globe Valves) - High FL value (close to 0.9)   Tortuous flow path, strong turbulence   Advantages   Lower cavitation risk (Pvc does not drop too low)   Disadvantages   Larger permanent pressure loss     (Illustration: High Recovery Valve is a ball Valve/butterfly valve, and the pressure curve drops deeper; Low Recovery Valve is a stop valve, and the pressure curve is flatter.)   At GEKO, valve selection always considers pressure recovery behavior, not just flow capacity.     05 Practical Lessons for Engineers   Understanding these physical principles provides real value in valve selection and operation.   - Don’t Be Fooled by “Fully Open”   Even if flow velocity seems low at full opening, at small openings, the velocity at the vena contracta can reach extreme levels:   Liquids may form high-speed jets   Gases may approach sonic velocity   - Noise Is Energy   Loud valve noise is not just annoying — it is wasted mechanical energy. The louder the noise, the more intense the internal energy dissipation and the greater the potential damage to equipment.   - Predict Failure Before It Happens   If you know upstream pressure (P1), downstream pressure (P2), and the valve’s FL factor, you can estimate Pvc.   Contact us now for more info of control valve: info@geko-union.com   If Pvc is lower than the liquid’s vapor pressure, stop using a standard valve immediately. Otherwise, within weeks, you may find a valve plug full of holes caused by cavitation.   Contact us now for more information of control valves: info@geko-union.com
