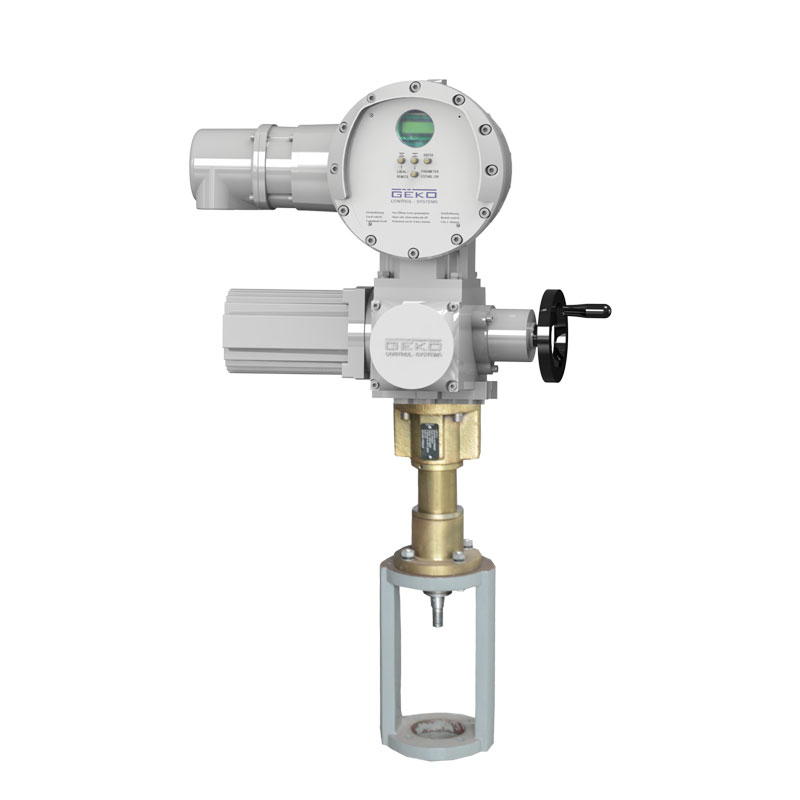

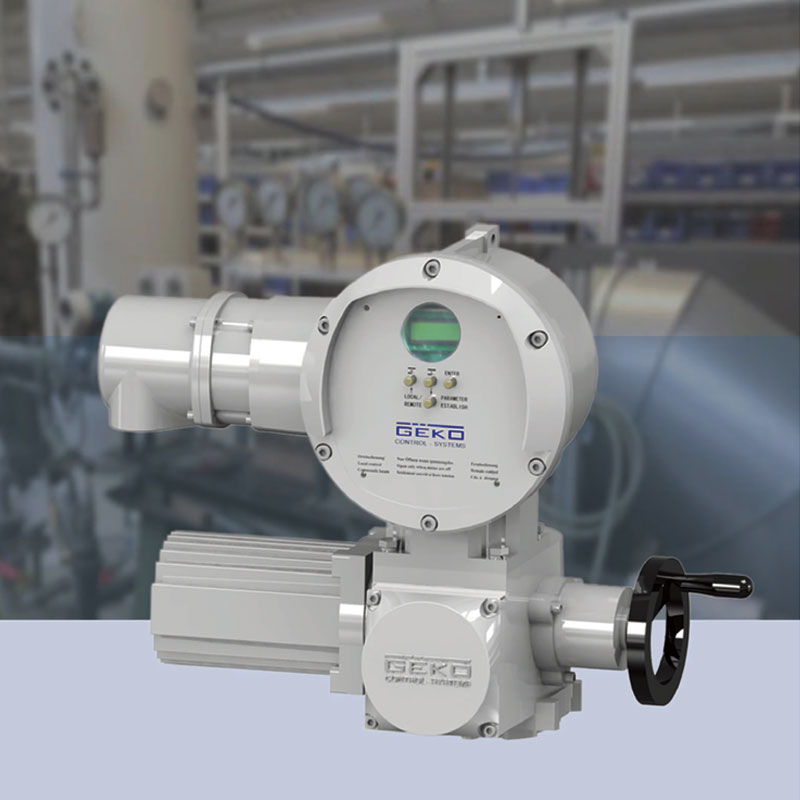

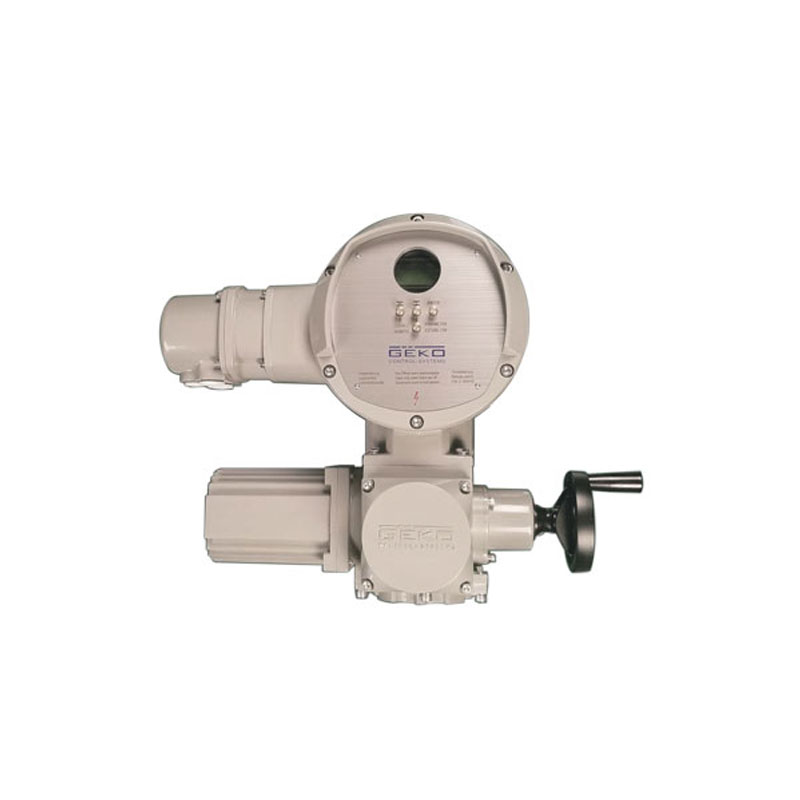

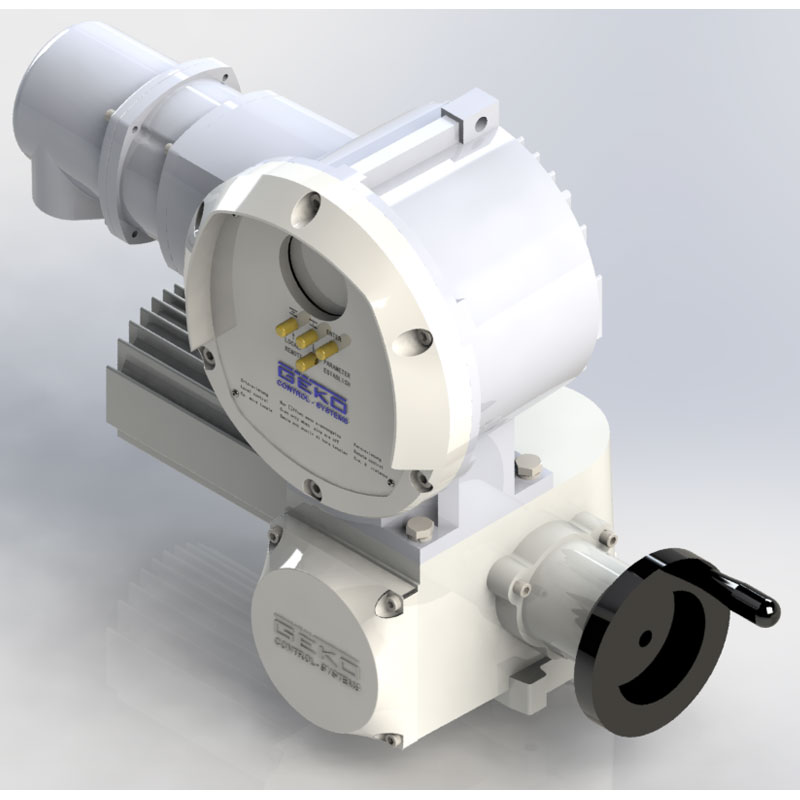

Name: Intelligent Integrated Electric Actuator
Availability: InStock

GKSA-LINTELLIGENT INTEGRATED ELECTRIC ACTUATOR

Output Thrust

9Nm to 16000Nm

Control Options

On-Off: 120/230 VAC Interposing Relay Board (I.R.B.)

24V: AC/DC Controller

Modulating: Servo NXT Controller

Communication Protocols: Servo NXT DeviceNet, EtherNet/IP

Voltages

120, 230 VAC 50/60 Hz, 1-phase

24V: AC/DC

Power Source

24-27VAC or 30-38VDC

70-DNS: VAC:120

70-NXT: 120/220 VAC 50/60Hz, 24V AC/DC

Enclosure Ratings

NEMA 4, 4X and IP65, IP67

Input Signal

On-Off: 120/230 VAC, 24V: AC/DC

Modulating: 4-20 mA,0-10V, 0-5V, 2-10V

Mounting

ISO 5211

Motor

120/230 VAC: Single phase, reversible, permanent split capacitor induction motor

24V: Permanent magnet-brush DC motor

Temperature Range

-20°F (-29°C) to 150°F (+65°)

Switch Options

2 SPDT mechanical switches standard

Additional auxiliary switches available (up to 6 total)

Optional torque switches available.

Certifications

CE certification, CCC certification, Explosion-proof certification

Valve Compatibility

Straight stroke and angular stroke

Standard Design of GKSA-Series Integrated Electric Actuator

Standard actuators: short-time duty S2-15 min acc. to DIN EN 60034.

Modulating actuators: intermittent duty S4 / S5 acc. to DIN EN 60034:

min. 25% duty cycle, 1200 c/h for all tripping torque and output speed.

combinations in the Temperature range from -20°C to +60°C.

Protection class IP67 acc. to DIN EN 60529 (IP68 on request).

Motor insulation class F.

Electronic motor protection, automatic phase sequence correction.

Start-up current lower than rated current.

Line voltage tolerance -10% / +15% in the chosen voltage range,

frequency range from 40 to 70 Hz.

Permissible ambient temperature: -20°C to +60°C (-4°F to +140°F),

higher temperatures on request.

Double sealed electric connection:(dust and water-protected when plug withdrawn).

Separate mounting of the electronics unit possible hand crank/wheel for emergency

operation (disconnected during motor operation!).

"Non intrusive" after adjustment of the end positions of the valve (PROFITRON).

Different output speeds, adjustable for OPEN, CLOSE, Emergency OPEN and

Emergency CLOSE (PROFITRON).

Travel dependant cut-off continuously adjustable 3 reference torque curves of

the valve can be stored (PROFITRON).

Operator guidance via display in 9 languages (PROFITRON) external 24 V DC s

upply for electronics unit possible as standard.

Features of GKSA-Series Integrated Electric Actuator

Simplify structure,reasonable---use electronic components instead of mechanical components,adopt modular structure.

Protection grade:lowest level is IP67, meet the DIN EN 60529 standard.(Note: can provide IP68 protection grade when needed).

Seperate installation:when installation space is not enough, the temperature is too high, the vibration is excessive or the debug and test on-site is hard, then intelligent control unit and main part can be installed separately.

Product Brochure

Integrated electric actuator - English

GKSA series integrated electric actuators are applied in multiple industries

Petrochemical and natural gas industries
Equipped with various angular stroke valves, widely used in refining and natural gas systems for pipeline cutting, liquefied natural gas flow control, and medium diversion.
Municipal water supply and HVAC engineering
Equipped with corrosion-resistant coatings and standard connections, it can optimize the flow efficiency of water supply, HVAC, and district heating systems by matching regulating valves and shut-off valves.
Ship and Ocean Engineering
For high salt spray environments in seawater, the actuator housing can be made of corrosion-resistant materials.
Environmental Protection and Industrial Water Treatment
It has adjustable and switch types as well as various functions to choose from, reducing costs while meeting user requirements.
