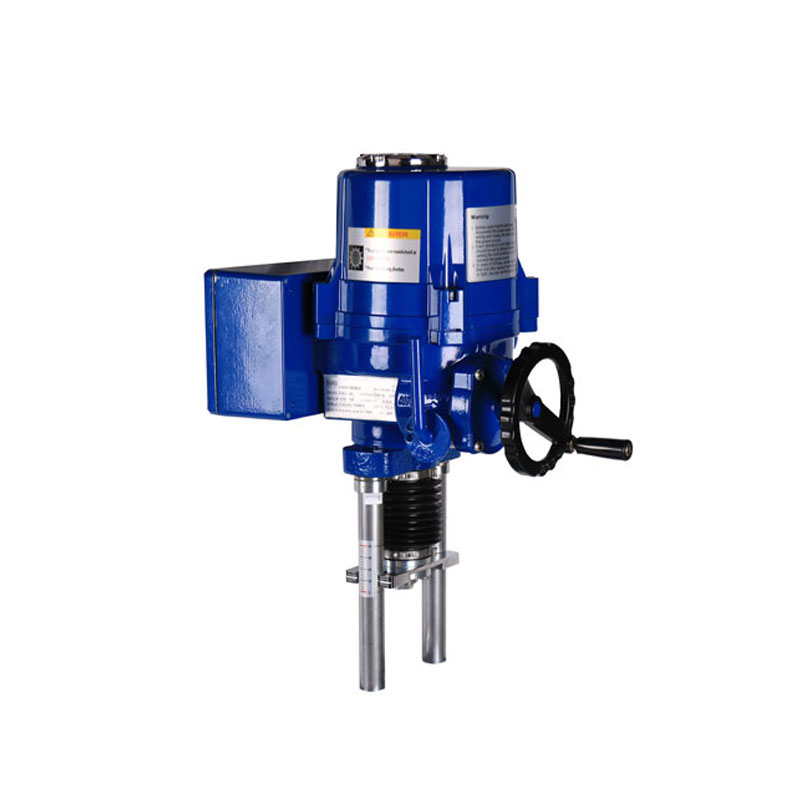

GKL-Series Explosion-proof Linear Electric Actuator is a type of actuator that converts rotational motion in motors into linear or straight push/pull movement. Geko GKL series is the preferred solution when you need a simple, safe, and clean movement with smooth motion control and accurate precision.
|
GKL-SERIES Explosion-proofLINEAR ELECTRIC ACTUATOR
|
|
|
Output Thrust 4kN（Stroke 40mm）, 6kN（Stroke 40mm） 8kN（Stroke 50mm）, 10kN（Stroke 50mm） 12kN（Stroke 50mm）, 20kN（Stroke 100mm） 25kN（Stroke 100mm） |
Control Options On-Off: 120/230 VAC Interposing Relay Board (I.R.B.) 24V: AC/DC Controller Modulating: Servo NXT Controller Communication Protocols: Servo NXT DeviceNet, EtherNet/IP |
|
Voltages 120, 230 VAC 50/60 Hz, 1-phase 24V: AC/DC
|
Power Source 24-27VAC or 30-38VDC 70-DNS: VAC:120 70-NXT: 120/220 VAC 50/60Hz, 24V AC/DC |
|
Enclosure Ratings NEMA 4, 4X and IP65, IP67
|
Input Signal On-Off: 120/230 VAC, 24V: AC/DC Modulating: 4-20 mA,0-10V, 0-5V, 2-10V |
|
Mounting ISO 5211
|
Motor 120/230 VAC: Single phase, reversible, permanent split capacitor induction motor 24V: Permanent magnet-brush DC motor |
|
Temperature Range -20°F (-29°C) to 150°F (+65°)
|
Switch Options 2 SPDT mechanical switches standard Additional auxiliary switches available (up to 6 total) Optional torque switches available. |
|
Certifications CE certification, CCC certification, Explosion-proof certification |
Valve Compatibility Linear |
Specification of GKL-Series Explosion-proof Linear Electric Actuator
Field control unit: LP4 (single-phase), LM4 (three-phase)
Power loss safety: backup battery BP
Integrated block: ICM1 ICM2
Explosion-proof grade: Exd II B T4

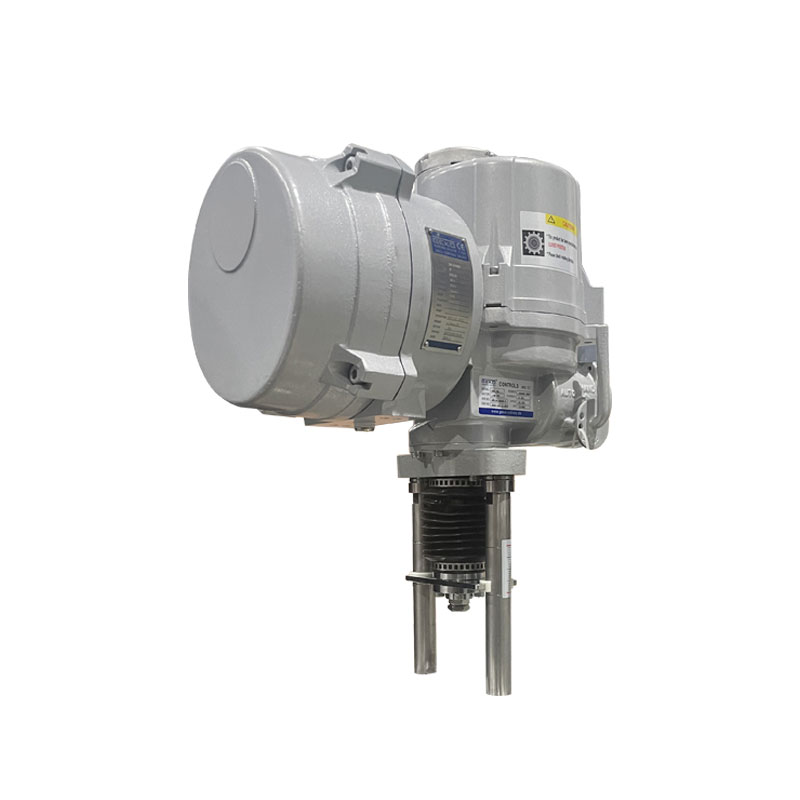

GKL series linear electric actuator
Features of GKL-Series Linear Electric Actuator
Robust construction, precise positioning, reliable performance.
Wide range of applications & control systems.
Compact internal arrangement.
Modulating control options can be installed on the site.
Local control options for easy commissioining and emergency operation.
GKL linear electric actuators are used in multiple industries
Petrochemical and natural gas industries
Municipal water supply and HVAC engineering
Ship and Ocean Engineering
Environmental Protection and Industrial Water Treatment
