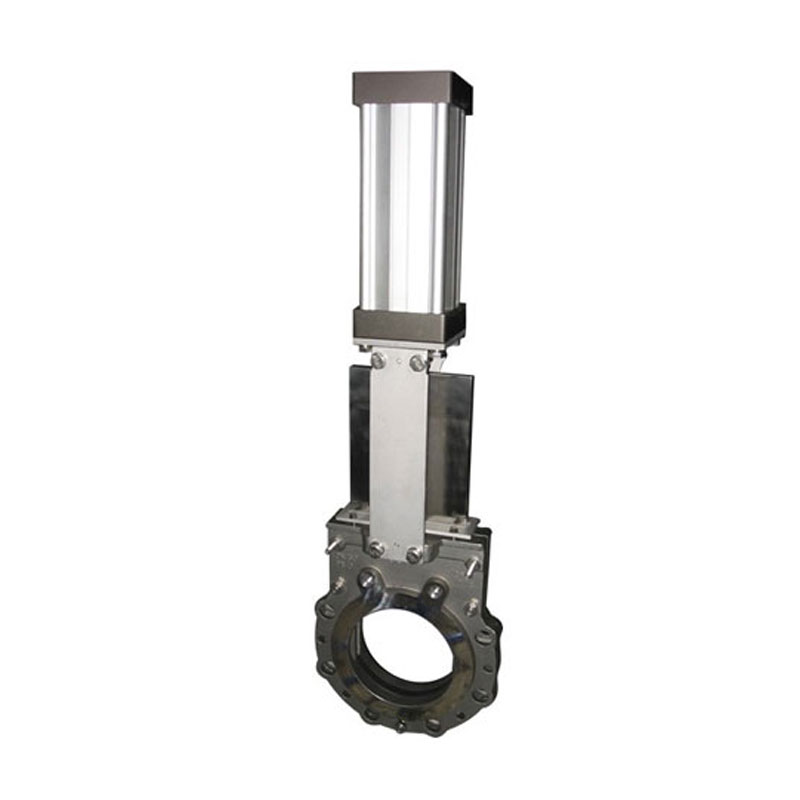

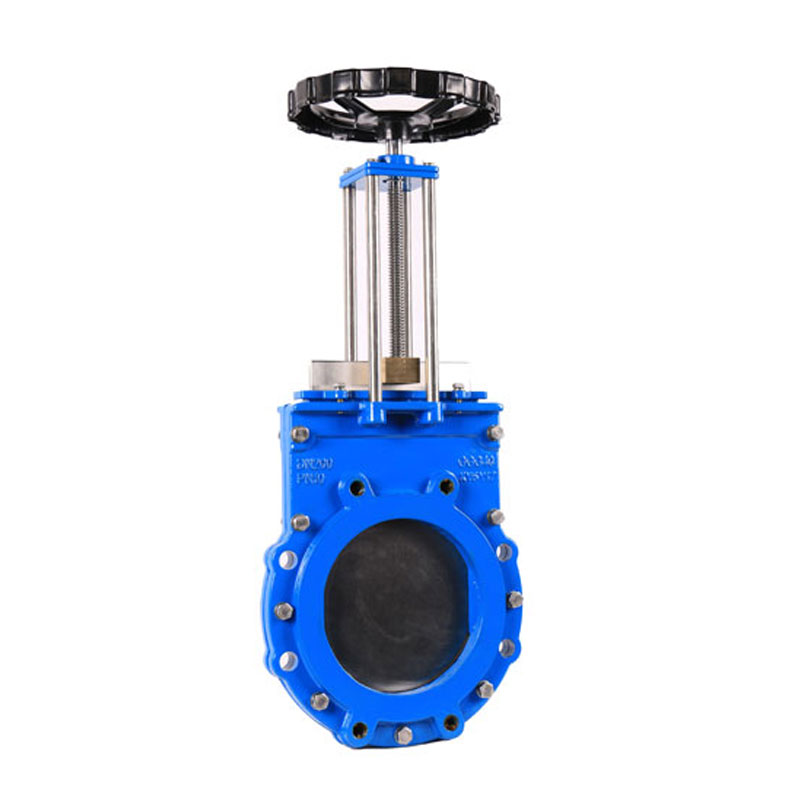

The GKV300 Knife Gate Valve similar as INSAMCOR, incorporate the latest design and technology, featuring patented elastomer sleeves that deliver top performance in abrasive, scaling, and corrosive slurries, as well as sludge, liquids, and bulk solids. This innovative design results in some of the most low-maintenance knife gate valves available on the market today.
|
Knife Gate Valve – Robust Design & Low Maintenance
|
|
|
Size Range 3” – 24” (DN80 – DN600), Pressure: 150 PSI CWP (10 bar)
|
Body Style Single Piece, Wafer, Semi-Lug |
|
Sleeves (Without Packing Design) Standard: Natural rubber |
Seat Materials (With Packing Design) NR, EPDM, NBR, or FKM/FPM |
|
Seat Temperature Range Buna-N: -34 to 194°F (-36 to 90°C) |
Gate Materials Standard: 316L stainless steel
|
|
Retainer / Counter Flanges Natural rubber encapsulated mild steel
|
Flange Drilling 3”–24”: ANSI B16.5 Class 150, AS 2129 Table D & E, PN10 & PN16 |
|
Actuators Manual, bevel gear, pneumatic, electromechanical, hydraulic Design Standard MSS SP81 |
Packing & Max Temperature
PTFE: 500°F (260°C) |
|
Additional Features Removable bottom cover with flush-out connections (purge ports) |
Testing Standard MSS SP151 |
Knife Gate Valves GKV300 Series
Spindle Cover – Protects the spindle against slurry splatter. (Standard on all sizes)
Actuators – Pneumatic, electric, hydraulic cylinders, manual bevel gear, and hand wheel with rising stem. (All sizes)
Thrust Housing Assembly – Oversized gunmetal (LG2) thrust nut threads reduce thread loading for longevity.
12”–16” (DN300–DN400): Standard with thrust bearings
Smaller sizes: Fitted with vesconite thrust pads
Cover Plate – Two cover plates enclose the gate, spindle, and clevis. Lightweight for easy removal during servicing and maintenance. (All sizes)
Heavy Duty Frame – Handles higher thrust associated with large bore installations. (All sizes)
Wiper Blade – Retains internal lubricants and prevents outside contaminants from entering. (All sizes; replaceable for large sizes)
Steel Proximity Switch Covers – Protects switches from damage during transport and operation. (All sizes)
Indicator – Open and close indicators (standard). (All sizes)
Lockout Provision – Allows lockouts in open and closed positions. (Sizes 3”–24” / DN80–DN600)
Open Supports – Ease of maneuvering valve during installation. (All sizes)
Retainer Flange – Standard on SKG-F range.
3”–24” (DN80–DN600): Standard
28”–48” (DN700–DN1200): Standard
Washout Chamber / Flush-out Connection – Optional closure plate for maintenance.
Lifting Lugs – Eye bolts situated at four locations for ease of installation and storage. (Sizes 28”–48” / DN700–DN1200)
Gate Materials – Standard: 316L stainless steel (90 PSI / 6 Bar); Optional: SAF2205 for 150 PSI / 10 Bar. (28”–48” / DN700–DN1200)
Standard Bellows – Additional spindle protection against abrasive particles. (3”–24” / DN80–DN600)
The unique design of GKV-300 knife gate valve.
- Bi-directional flow and shut-off resulting in zero downstream leakage.
- No metal parts in contact with the flowing media when the valve is in the fully open position.
- No seat cavity for unwanted solids to build-up and prevent full gate closure.
- Field replaceable heavy duty elastomer sleeves.
- Suitable for wet or dry service.
- 3” - 24” / DN80 - DN600 standard pressure rating of 150PSI CWP (10 bar).
- 28”- 48”/DN700 – DN1200 standard pressure rating of 90PSI CWP (6 bar) with 150PSI.
GKV-300 series knife gate valve is applied in multiple industries
Petrochemical and natural gas industries
Steel and Chemical Industry
Ship and Ocean Engineering
Environmental Protection and Industrial Water Treatment
The GKV300 Knife Gate Valve similar as INSAMCOR, incorporate the latest design and technology, featuring patented elastomer sleeves that deliver top performance in abrasive, scaling, and corrosive slurries, as well as sludge, liquids, and bulk solids. This innovative design results in some of the most low-maintenance knife gate valves available on the market today.
Read More
GKV305 Under Silo Special Knife Gate Valve is mainly used in the mining and food-processing industries. It is specially manufactured for an under silo assembly. Owing to blowout holes , it can remove dry products such as dust or grains, avoid the stuffing and the accumulating to jam the gate.
Read More
GKV310 Pneumatic Through Conduit Knife Gate Valve incorporate the latest design and technology, featuring patented elastomer sleeves that deliver top performance in abrasive, scaling, and corrosive slurries, as well as sludge, liquids, and bulk solids. This innovative design results in some of the most low-maintenance knife gate valves available on the market today.
Read More
GKV315 Square Knife Gate Valve Uni-directional square port fabricated knife gate valve for discharge, material and bulk handling applications. Top performance in abrasive, scaling, and corrosive slurries, as well as sludge, liquids, and bulk solids.
Read More
