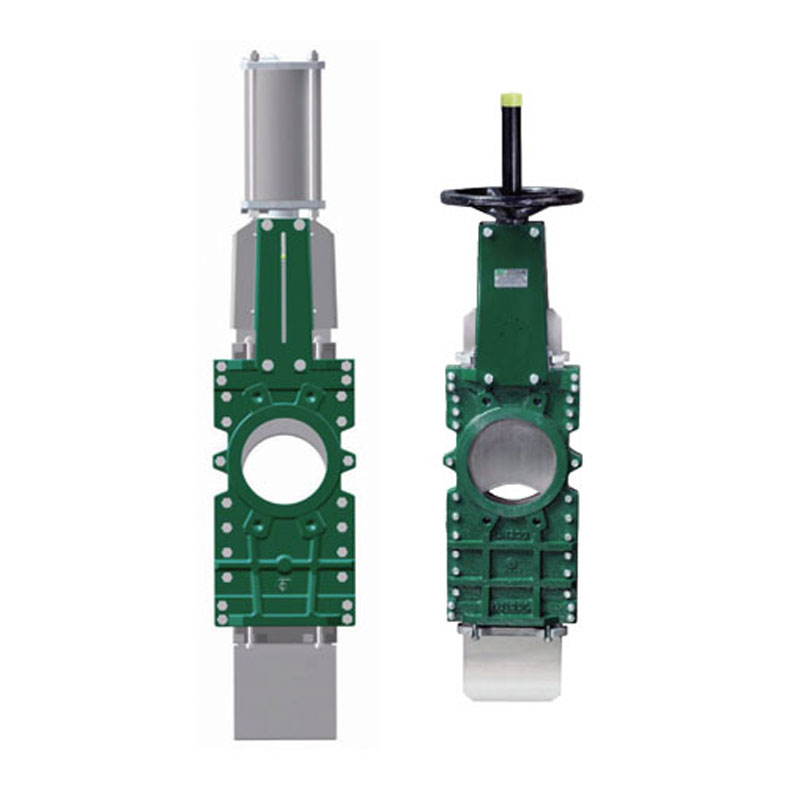

GKV310 Pneumatic Through Conduit Knife Gate Valve incorporate the latest design and technology, featuring patented elastomer sleeves that deliver top performance in abrasive, scaling, and corrosive slurries, as well as sludge, liquids, and bulk solids. This innovative design results in some of the most low-maintenance knife gate valves available on the market today.
|
THROUGH CONDUIT KNIFE GATE VALVES
|
|
|
Size Range NPS 2" to 48",DN50 to DN 1200 |
Body Materials Ductile Iron, Carbon Steel, Stainless Steel |
|
Maximum Allowable Operating Pressure NPS 2 to 12: 150psi / DN 50 to 300: 10bar NPS 14 to 24: 75psi / DN 350 to 600: 5bar |
Stem Materials 304 Stainless Steel
|
|
Gate Materials 304, 316, 317 Stainless Steel, SAF 2507, SAF 2205, 17-4PH, Hastelloy® C, Monel® |
Seat Materials NR, EPDM, NBR, or FKM/FPM |
|
Body Style Two Piece Bolted - Wafer |
Design Standard Manufacturer Standard |
|
Seat Material Temperature Range Natural Rubber: 165°F / 74°C |
Testing standard Manufacturer Standard |
|
Wiper Materials EPDM |
Actuator Options Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric |
|
Face To Face MSS SP81 |
Applications Sugar, Pulp & Paper |

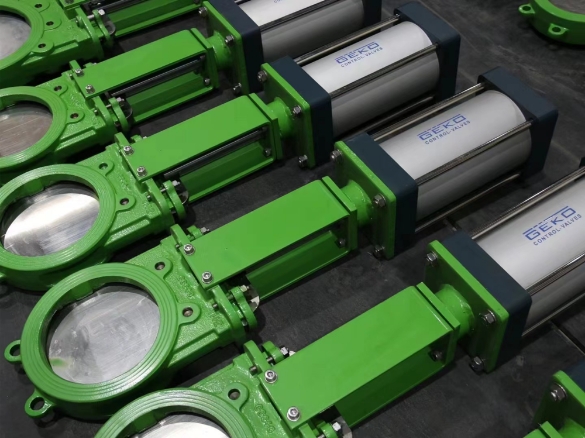

Pneumatic Through Conduit Knife Gate Valve

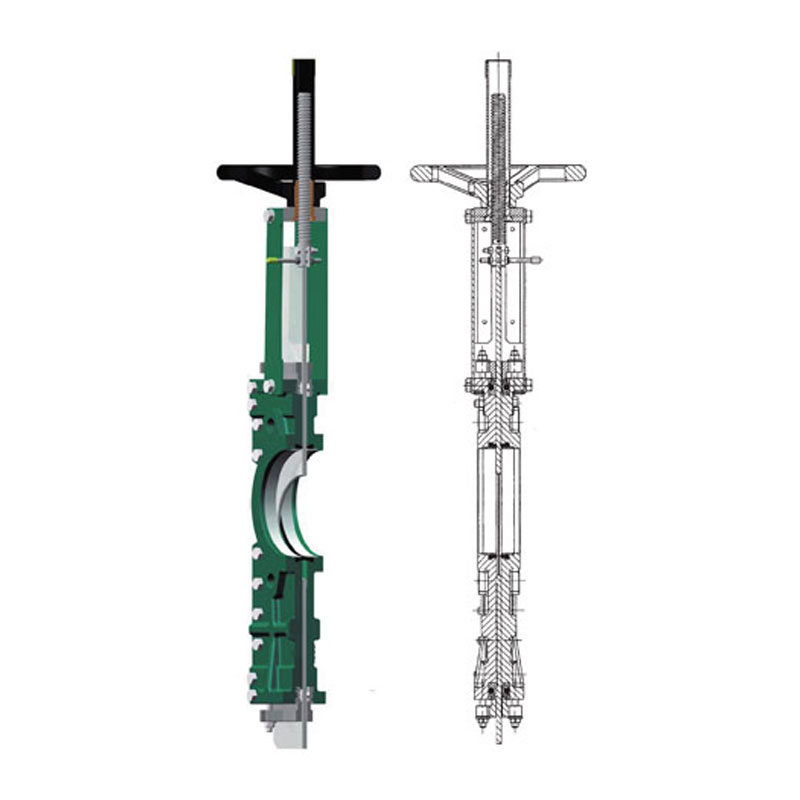

GEKO bi-directional knife gate valve is designed specifically for demanding slurry applications. The dual elastomer valve seat and sliding door design facilitate self-cleaning and prevent the accumulation of media. The durable ductile iron valve body adopts a compact sheet design. When fully opened, the valve has a full bore and no resistance to the pipeline medium.
Pass-through design with standard catch chamber.
150 psi CWP (10 bar) pressure rating for all sizes.
Bi-directional flow and shutoff resulting in zero downstream leakage.
No seat cavity for unwanted solids to build up and prevent full gate closure.
Field replaceable heavy-duty elastomer sleeves.
Ported blade is always in contact with the replaceable sleeves on both sides.
Suitable for wet or dry service.
Highlights of Through Conduit Knife Gate Valves
Designed for easy, quick conversion between manual and pneumatic actuation. Featuring a lubricant injection port for continuous, smooth operation with minimal maintenance.
Self-adjusting secondary wiper seal extends gate life and prevents discharge from top of valve.
GEKO pipeline knife gate valve is applied in multiple industries
Petrochemical and natural gas industries
Steel and Chemical Industry
Ship and Ocean Engineering
Environmental Protection and Industrial Water Treatment
