Name: Square Knife Gate Valve
Availability: InStock

SQUARE KNIFE GATE VALVES

Size Range

NPS 2" to 48",DN50 to DN 1200

Body Materials

Ductile Iron, Carbon Steel, Stainless Steel

Maximum Allowable Operating Pressure

NPS 2 to 12: 150psi / DN 50 to 300: 10bar

NPS 14 to 24: 75psi / DN 350 to 600: 5bar

Stem Materials

304 Stainless Steel

Gate Materials

304, 316, 317 Stainless Steel, SAF 2507, SAF 2205, 17-4PH, Hastelloy® C, Monel®

Seat Materials

NR, EPDM, NBR, or FKM/FPM

Body Style

Square

Design Standard

Manufacturer Standard

Seat Material Temperature Range

Natural Rubber: 165°F / 74°C
EPDM: 248°F / 120°C

Testing standard

Manufacturer Standard

Wiper Materials

EPDM

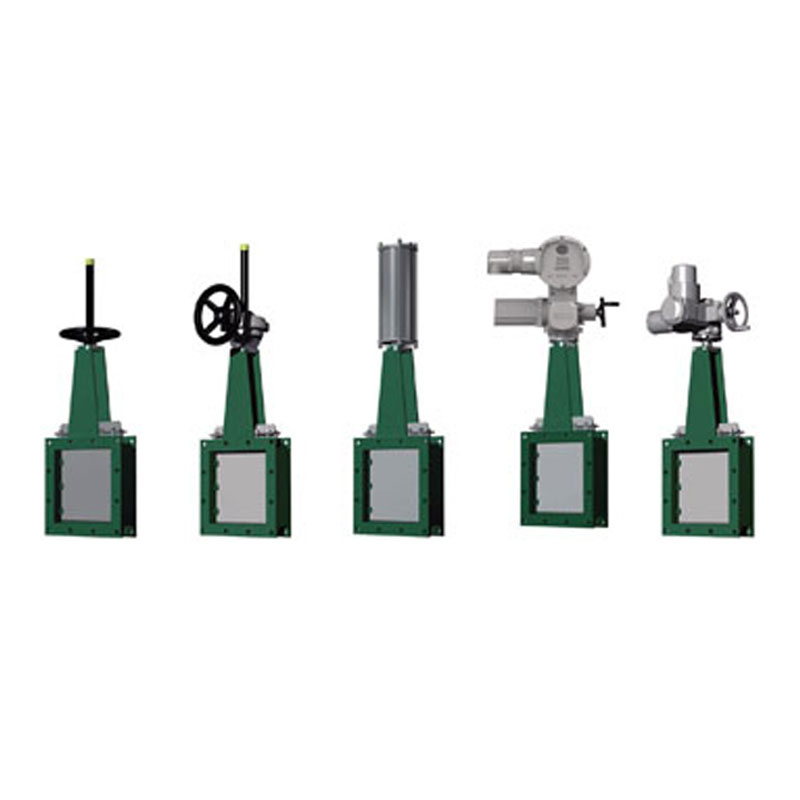

Actuator Options

Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric

Face To Face

MSS SP81

Applications

Sugar, Pulp & Paper

Features of Square Knife Gate Valves

This knife gate valve is mainly used in the mining and food-processing industries。 The dual elastomer valve seat and sliding door design facilitate self-cleaning and prevent medium accumulation. The durable ductile iron valve body adopts a compact plate design. When fully opened, the valve has a full diameter and no resistance to the pipeline medium.

BODY'S CONSTRUCTION

Cast iron, stainless steel, aluminium or aluminium hard anodised ( resisting to abrasion avoids forming of alumina in surface).

Features of Square Knife Gate Valves

This type of knife gate valve can be customized with an ISO5211 standard platform, suitable for manual, pneumatic, and electric actuators.

Welded assembly construction.

Body and gate in rectangular valve shape.

All the solutions of actuators, detection and accessories are identical to the GKV standard valves.

Product Brochure

Knife Gate Valve - English

GEKO square knife gate valve is applied in multiple industries

Petrochemical and natural gas industries
Square knife gate valve are widely used in refining and natural gas systems for pipeline interception, liquefied natural gas flow control, and sulfur-containing medium diversion.
Steel and Chemical Industry
These full caliber valves have PTFE lining and standard flange connections, which can optimize the flow efficiency of steel, chemical, and other systems.
Ship and Ocean Engineering
For high salt spray environments in seawater, the valve body can be made of 316 stainless steel and epoxy coating.
Environmental Protection and Industrial Water Treatment
Corrosion-resistant valves with soft seals and high-performance flange connections enable reliable chemical dosing,while reducing maintenance costs.

Hot Tags :

Bulk handling square port knife gate valve

Square or Rectangular Port Knife Gate Valves

Rectangular Port Knife Gate Valve

Knife Gate Valve manufacturers

Squared or rectangular knife gate valves

High Quality Square Knife Gate Valves
