GKV610C5 SS Explosion Proof Solenoid Valves With NAMUR has satisfied NAMUR connection plate and tube connected to two kinds of assembly requirements, but also with the two five-way and two-way function.
Does not require any auxiliary adapter plate can be directly controlled single-acting and double-acting pneumatic actuators, and the pilot to manually configure the device safe and reliable, is a truly multi-purpose solenoid valves.
|

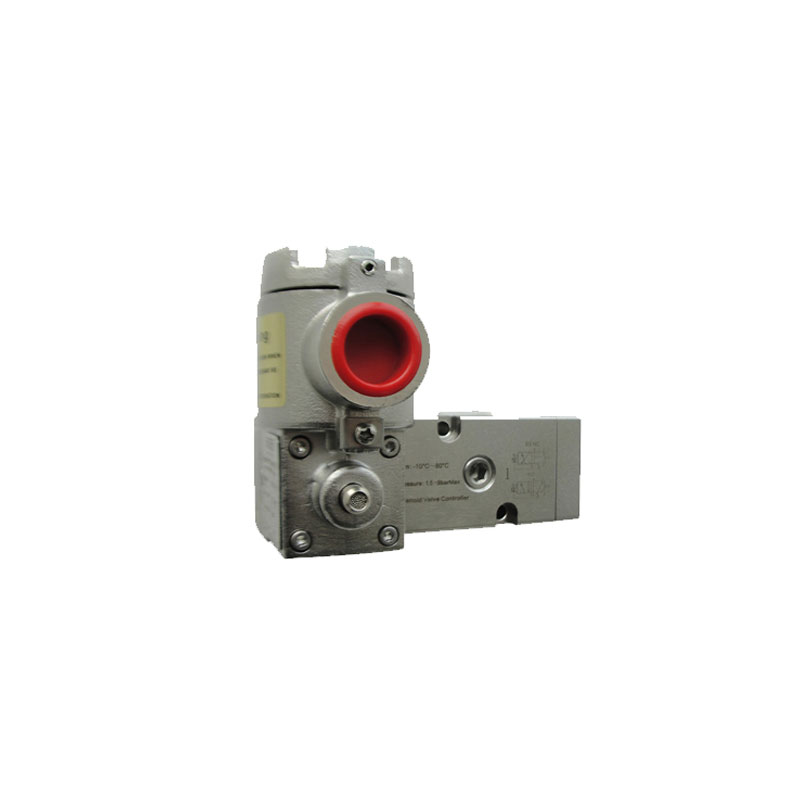

GKV610C5-GEKO SS EXPLOSION PROOF SOLENOID VALVES WITH NAMUR
|
|
|
Electrical Connections DIN 43650 Type “A” |
Mounting Direct Mount NAMUR Interface |
|
Ports 1/4 Inch NPT |
Temperature Range 0°F to 123°F (-18°C to 50°C) |
|
Operating Pressure 35 to 150 psig (2.4 to 10.3 bar) |
Operation 5 port 2 way (5/2) , 3 port 2 way (3/2) |
|
Supply Media Filtered Dry Air |
Voltages 12VDC, 24VDC,48VDC, 110VAC, 220 VAC,240VAC. |
Functions of GEKO SS Explosion proof Solenoid Valves with NAMUR
GKV610C5 explosion-proof solenoid valve has the functions of two-position
five-way and two-position three-way, which can meet the two assembly
requirements of NAMUR plate connection and pipe connection.
It can directly control single-acting and double-acting pneumatic actuators
without any adapter board assistance, and is equipped with a safe and reliable
manual device on the pilot.
It is a truly multifunctional solenoid valve. Because of its unique gas circuit
structure.
All the breathing holes on the solenoid valve body are the same as the exhaust
holes.
There are no breathing holes on the valve body to communicate with the
atmosphere, which can effectively prevent external liquid, dust and impurities
from entering the valve body.
It is especially suitable for outdoor use or in a work environment with serious
dust pollution.
Air source working pressure is 1~8bar, power supply voltage is 12~48VDC,
110~240VAC.
Features of GEKO SS Explosion proof Solenoid Valves with NAMUR
Unique structure of the gas path. Solenoid valve and vent all breathe the same hole,
the body surface without breathing holes with the atmosphere, and can effectively prevent outside liquids,
dust and debris from entering the body, particularly suitable for use outdoors or in severe dust pollution in the work environment .
Air working pressure 1 ~ 8bar, supply voltage 12 ~ 48VDC, 110 ~ 240VAC.
GKV610 series solenoid valves are applied in multiple industries
Petrochemical and natural gas industries
Municipal water supply and HVAC engineering
Ship and Ocean Engineering
Environmental Protection and Industrial Water Treatment
Smart GK-2300 Digital Positioner Intrinsically Safe Version is two-wire system instrument. It's widely used for the auto-control system of oil, chemical, electric, metallurgy, light industry and so on as supporting control unit. Smart GK-2300L, GK-2300R use the embedded microprocessors, can be precise control of valve position valve straight trip. Ordinary positioner with 4 ~ 20mA current signal, and with a variety of functions, to maximize the performance of the system's high-end products.
Read More
GKV2300 Electro-Pneumatic Digital Positioner Explosion Proof. Automatic calibration by simply operating the switch. Equipped with communication module, so it is possible to monitor the travel status of the positioner from a distance. When an abnormal operation occurs, a warning will be issued to the control room.
Read More
GEKO Explosion Proof Solenoid Valves---GKV510C5 performs switching actions based on DC or AC signals and adopts explosion-proof structure.
Read More
GKV610C5 SS Explosion Proof Solenoid Valves With NAMUR has satisfied NAMUR connection plate and tube connected to two kinds of assembly requirements, but also with the two five-way and two-way function. Does not require any auxiliary adapter plate can be directly controlled single-acting and double-acting pneumatic actuators, and the pilot to manually configure the device safe and reliable, is a truly multi-purpose solenoid valves.
Read More
GKV510C1 Explosion-Proof2/3-Way & 2/5-Way Solenoid Valve Ex dII certifed is used for electric control operation of pneumatic valve opening or closing. It conforms to the NAMUR connection standard and is directly installed at the air supply interface of the actuator. At the same time, the product has two-position three-way, two-position five-way, single electric control and double electric control options.
Read More
