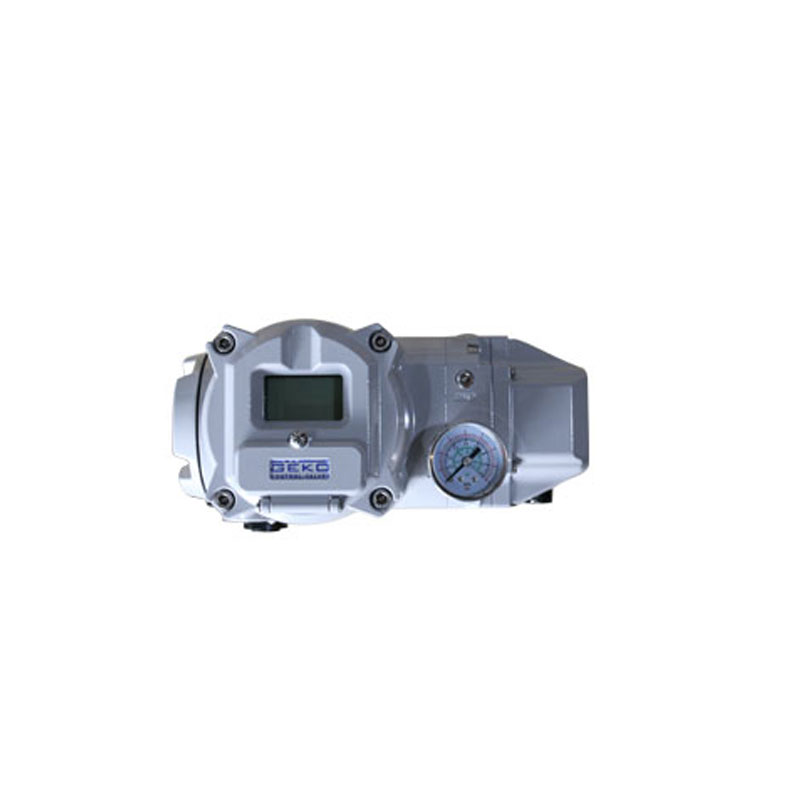

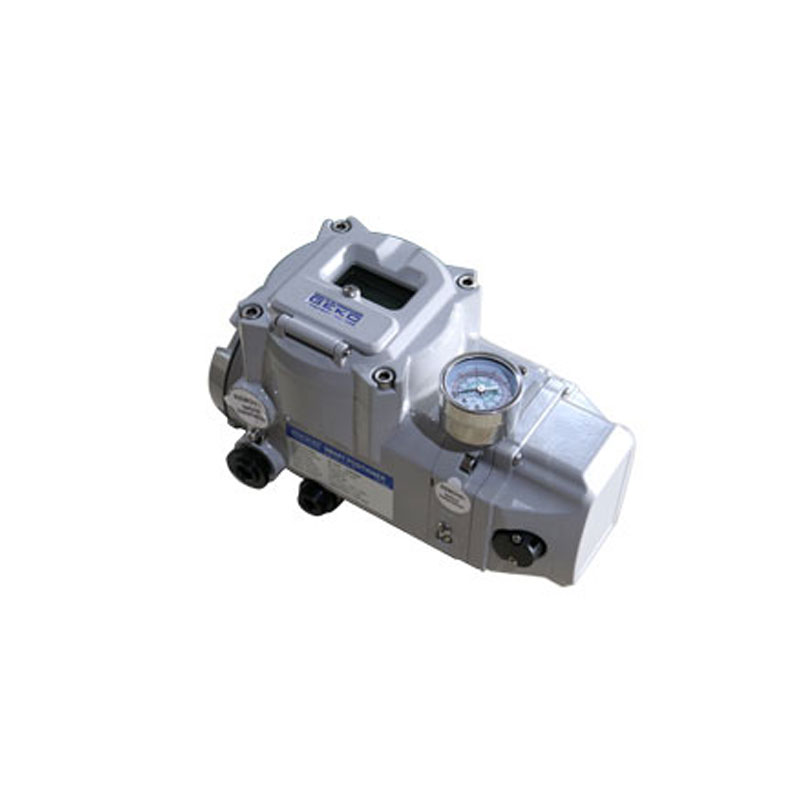

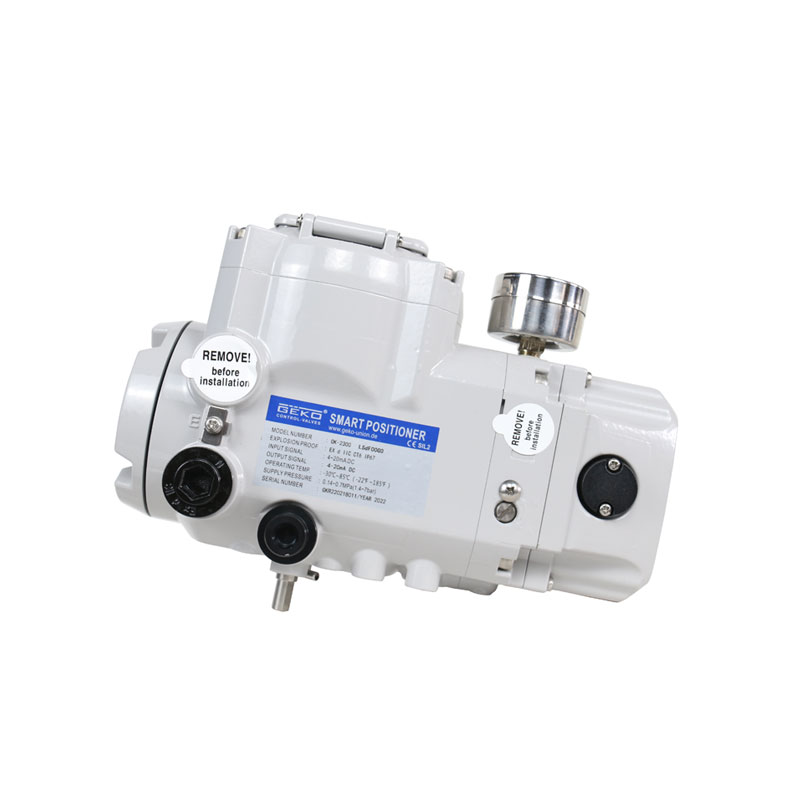

Name: Electro-Pneumatic Digital Positioner Explosion Proof
Availability: InStock

GK2300-EXPLOSION PROOF ELECTRO-PNEUMATIC DIGITAL POSITIONER

Ports

1/4" NPT or G1/4

Communication Protocols

HART, Profibus PA, Foundation Fieldbus

Duty Cycle

Continuous

Supply Media

Clean dry air

Control Options

4-20 mA, Communication Protocols

Enclosure Ratings

Weatherproof: NEMA 4, 4X, IP66

Hazardous location models:

ATEX/FM/CSA EEx ia/ib

Explosion Proof ATEX/FM EEx d

Temperature Range

-22°F (-30°C) to +176°F (+80°C)

Mounting

VDI/VDE 3845 (NAMUR)

Supply Pressure

-20-102psi (1.4-7 Bar)

Housing

Fiberglass Reinforced Polymer with Metalized Coated interior for EMC protection, Aluminum, Stainless Steel

Certifications

CE certification, CCC certification, Explosion-proof certification

Applications

Double and Single Acting, Direct and Reverse

Functions of Explosion Proof Electro-pneumatic Digital Positioner

The GK2300LSdF00GO series smart valve positioner has the on-site Class II

explosion-proof function, and the performance and installation are reliable.

Low power consumption / low air consumption, built-in lightning protection

module, can avoid damage to the positioner due to lightning strikes.

Built-in HOERBIGER piezoelectric valve technology, long service life, using

two-wire 4-20mA standard signal, the valve position setting value is obtained

through A/D conversion; at the same time, the actual valve position signal is

obtained through the position sensor; both are calculated by the control

software Processing, so as to control the air intake and exhaust of the

pneumatic actuator, and drive the valve position to reach the set point.

Features of Explosion Proof Electro-pneumatic Digital Positioner

GK-2300 Smart Valve Positioner uses advanced German piezoelectric

technology for ultra-fast <20ms valve response, high positioning accuracy,

and stable control. Fully sealed, mechanical-free design ensures reliability

in harsh and complex conditions. Features self-tuning, sub-process control,

emergency manual operation, and minimal air consumption (<36 L/h), saving

energy in industrial applications. Ideal for chemical, petrochemical, and

automation systems.

GK2300 explosion-proof intelligent locator applied in multiple industries

Petrochemical and natural gas industries
Equipped with various angular stroke valves, widely used in refining and natural gas systems for pipeline cutting, liquefied natural gas flow control, and medium diversion.
Municipal water supply and HVAC engineering
Equipped with corrosion-resistant coatings and standard connections, it can optimize the flow efficiency of water supply, HVAC, and district heating systems by matching regulating valves and shut-off valves.
Ship and Ocean Engineering
For high salt spray environments in seawater, the actuator housing can be made of corrosion-resistant materials.
Environmental Protection and Industrial Water Treatment
It has adjustable and switch types as well as various functions to choose from, reducing costs while meeting user requirements.
