Name: Digital Positioner Intrinsically Safe Version
Availability: InStock

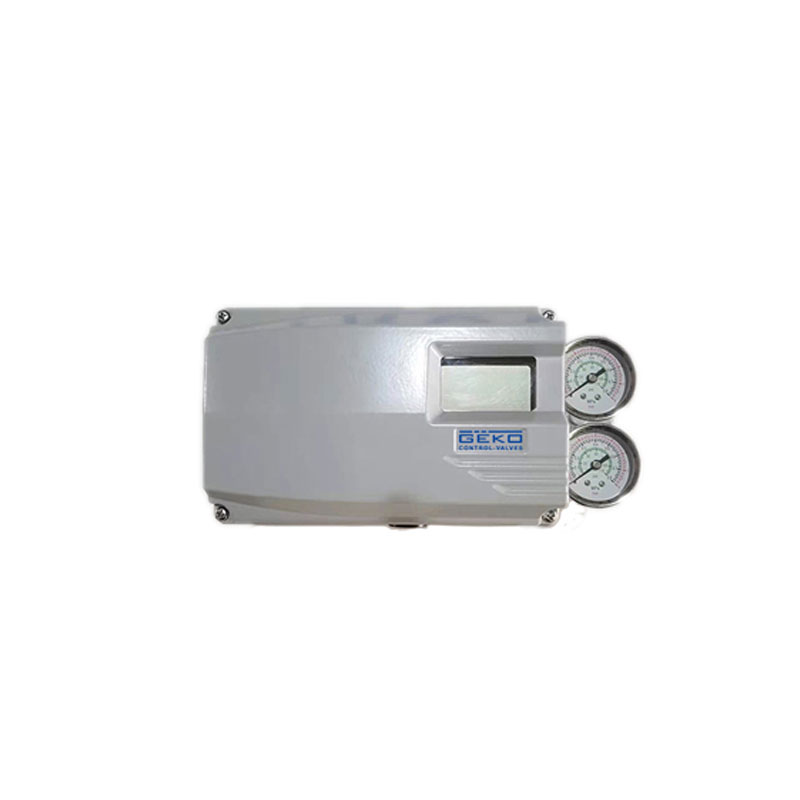

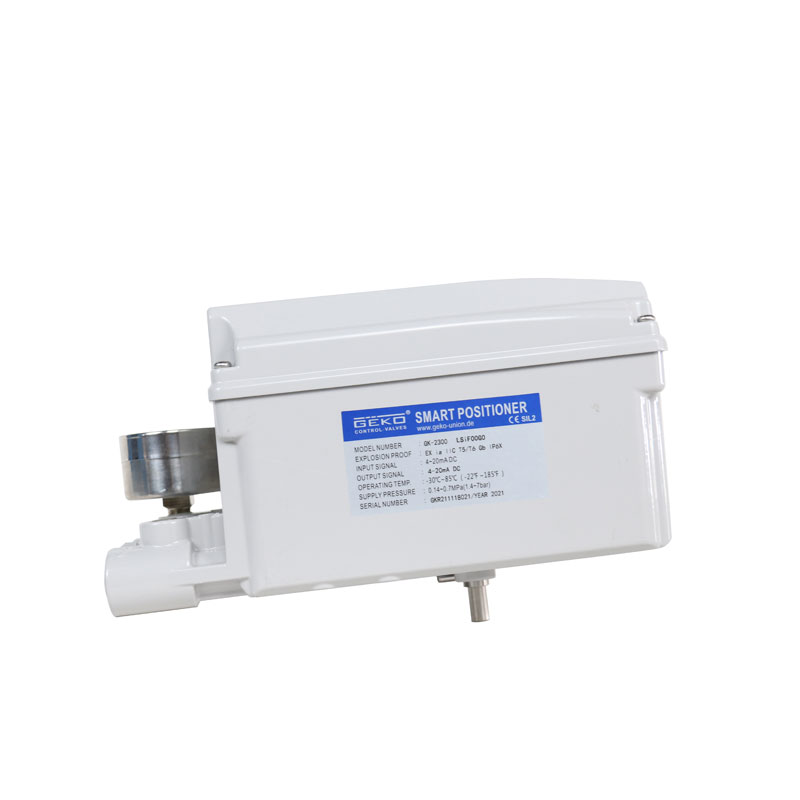

GK2300-DIGITAL POSITIONER(INTRINSICALLY SAFE VERSION)

Ports

1/4" NPT or G1/4

Communication Protocols

HART, Profibus PA, Foundation Fieldbus

Duty Cycle

Continuous

Supply Media

Clean dry air

Control Options

4-20 mA, Communication Protocols

Enclosure Ratings

Weatherproof: NEMA 4, 4X, IP66

Temperature Range

-22°F (-30°C) to +176°F (+80°C)

Mounting

VDI/VDE 3845 (NAMUR)

Supply Pressure

-20-102psi (1.4-7 Bar)

Housing

Fiberglass Reinforced Polymer with Metalized Coated interior for EMC protection, Aluminum, Stainless Steel

Certifications

CE certification, CCC certification

Applications

Double and Single Acting, Direct and Reverse

Functions of GK-2300 Digital Positioner(Intrinsically Safe Version )

-Simply operate the switch to perform automatic calibration.

-Equipped with a communication module, so the travel status of the positioner

can be monitored from a distance.

-When an abnormal operation occurs, a warning is issued to the control room.

-The valve position transmitter module can be easily added.

-It is equipped with LCD, so the current opening can be confirmed without

other equipments.

Features of GK-2300 Digital Positioner(Intrinsically Safe Version )

- High accuracy, up 0.5% F.S.

- The operation is without opening the body, a high level of protection can

operate locally.

- Explosion-proof, safe and reliable.

- Simple structure, small size, can install on a small actuator.

- Auto-tuning, automatic diagnosis, the valve characteristic curve can

configure by the settings.

- Fewer mechanical parts, good resistance of resonance.

- The parameter can set locally and remotely.

- Low power consumption, low air consumption, low running costs.

two-wire 4 ~ 20mA standard signal.

- Built-in lightning protection module, avoid the damage of lightning stroke.

GK2300 intrinsic safety intelligent locator applied in multiple industries

Petrochemical and natural gas industries
Equipped with various angular stroke valves, widely used in refining and natural gas systems for pipeline cutting, liquefied natural gas flow control, and medium diversion.
Municipal water supply and HVAC engineering
Equipped with corrosion-resistant coatings and standard connections, it can optimize the flow efficiency of water supply, HVAC, and district heating systems by matching regulating valves and shut-off valves.
Ship and Ocean Engineering
For high salt spray environments in seawater, the actuator housing can be made of corrosion-resistant materials.
Environmental Protection and Industrial Water Treatment
It has adjustable and switch types as well as various functions to choose from, reducing costs while meeting user requirements.
