How Does a Butterfly Valve Open and Close? Full Operating Guide Butterfly valves are the most widely used quarter-turn flow control devices in industrial and municipal piping systems. Many engineers and procurement specialists select industrial butterfly valves for their compact size and cost-saving advantages, yet few fully understand the complete mechanical process of how a butterfly valve opens and closes. Unlike linear-stroke gate valves and globe valves, butterfly valves rely on precise rotary motion to change pipeline flow status. This article clearly explains the opening and closing working process, mechanical logic of different valve designs, actuation modes, and sealing coordination principles. 1. Basic Open and Close Principle of Butterfly Valves The entire opening and closing action of a butterfly valve is completed through a 90-degree quarter-turn rotation. The core moving parts include the valve stem and internal butterfly disc. The stem receives torque from manual or automated actuators and drives the disc to rotate horizontally inside the pipeline bore, realizing full opening, full closing, and intermediate throttling states. Closing Process (90° → 0°): The disc gradually rotates perpendicular to the fluid flow direction, continuously narrowing the flow passage. When reaching 0 degrees, the disc completely presses against the valve seat, blocking the pipeline and achieving tight shutoff. Opening Process (0° → 90°): The disc rotates parallel to the fluid direction, gradually expanding the flow area. At 90 degrees, the disc is fully opened, minimizing flow resistance and allowing maximum fluid passage. This simple rotary operation is what makes wafer butterfly valves and lug butterfly valves so popular for large-bore piping. 2. Complete Mechanical Action Process   The opening and closing cycle follows a fixed mechanical transmission chain, ensuring accurate and stable operation: First, the operating device (lever, gearbox, pneumatic or electric actuator) outputs rotational torque. The torque is transmitted to the central valve stem through the driving shaft. The integrated stem and disc structure rotates synchronously without idle travel. During movement, the disc gradually separates from or compresses against the sealing seat. Finally, the mechanical limit device locks the angle to complete opening or closing positioning. 3. Different Opening & Closing Logic by Valve Structure Concentric and offset butterfly valves have obvious differences in opening and closing friction, which directly affects service life and operating stability: 3.1 Concentric Butterfly Valve Operation Concentric butterfly valves have overlapping centers of the stem, disc, and pipeline. During every opening and closing stroke, the disc keeps continuous contact and friction with the seat. The operation is simple and cost-effective, suitable for low-frequency switching of conventional water treatment and HVAC pipelines. 3.2 Triple Offset Butterfly Valve Zero-Friction Operation Triple offset butterfly valves adopt a three-dimensional offset structure. During the opening process, the disc instantly separates from the seat without friction. During closing, the disc only contacts the seat at the final locking position. This zero-friction opening and closing mechanism greatly reduces seat wear, making this style of heavy duty butterfly valves suitable for high-temperature, high-pressure, and frequent switching industrial pipelines. 4. Sealing Coordination During Opening and Closing Different sealing types match different opening and closing mechanical characteristics: 4.1 Soft Seated Butterfly Valve Soft seated butterfly valves with EPDM or NBR seats rely on elastic compression to achieve zero leakage when fully closed. During closing, the disc gently squeezes the elastic seat to fill tiny gaps. During opening, the elastic seat resets automatically. This flexible sealing opening and closing mode ensures bubble-tight shutoff for clean water and gas media. 4.2 Metal Seated Butterfly Valve Metal seated butterfly valves adopt precision metal-to-metal matching. The opening and closing process realizes rigid mechanical fitting and separation. With high wear resistance and temperature resistance, they maintain stable switching performance in harsh working conditions such as high-temperature steam and abrasive slurry. 5. Opening and Closing Modes of Automated Butterfly Valves Modern industrial pipelines use automated butterfly valves to realize intelligent opening and closing control: Pneumatic Butterfly Valve: Driven by compressed air, it completes fast opening and closing strokes in seconds. With explosion-proof advantages, it is widely used in chemical and petrochemical pipeline switching. Electric Butterfly Valve: Driven by electric actuators, it features stable speed, precise angle positioning, and remote signal control. It supports delayed opening/closing and intermediate positioning, suitable for intelligent pipeline systems. Manual Butterfly Valve: Operated by lever or gear handwheel, it realizes on-site manual opening and closing, economical and convenient for low-frequency operation scenarios. 6. Common Opening & Closing Faults and Causes Valve jamming: Caused by sediment deposition, seat aging, or insufficient actuator torque Incomplete closing and leakage: Disc offset, seat wear, or foreign matter blocking the sealing surface Slow opening and closing speed: Pneumatic air pressure insufficiency or electric actuator parameter deviation 7. GEKO Valve Precise Opening & Closing Performance All GEKO butterfly valves adopt optimized rotary motion structure, ensuring flexible, smooth, and accurate opening and closing actions. Our full product range including wafer, lug, soft seat, metal seat, and triple offset butterfly valves achieves zero-friction switching, stable sealing, and long service life. Automated modulating butterfly valves support arbitrary angle opening and closing, meeting isolation and throttling control requirements of modern industrial piping systems.

What Is the Role of a Butterfly Valve in Piping Systems? Industrial and municipal piping networks transport liquids, gases and slurries across vast facilities, requiring reliable flow control hardware to keep operations safe and predictable. As a popular quarter-turn valve, the butterfly valve performs multiple core functions within piping systems. Its compact build, lightweight body and flexible operating modes make it a go-to choice for many pipeline designs, from large water mains to chemical processing lines. This article breaks down the key roles butterfly valves play in piping systems and where their strengths shine. 1. Fluid Isolation for Pipeline Maintenance & Emergency Shutoff One primary role of a butterfly valve is positive isolation. When a pipe segment, pump or downstream equipment needs inspection or repair, operators close the butterfly valve to fully cut off fluid flow. In emergency scenarios such as pipeline overpressure or equipment failure, it can rapidly shut down the line to prevent spillage and system damage. Lug and flange butterfly valves are commonly used for isolation duties, with PTFE or EPDM seats delivering tight shutoff performance. 2. Flow Throttling and Flow Regulation Beyond simple on/off service, butterfly valves are widely used for throttling flow. By rotating the disc to partial opening positions, the valve adjusts the cross-sectional flow area, controlling the volume and velocity of fluid moving through the piping. This function helps stabilize pressure and maintain consistent flow rates for processes like water distribution, HVAC circulation and chemical transfer. Note that precise throttling requires proper material selection to avoid disc erosion from high-speed media. 3. Pressure Control and Surge Mitigation Butterfly valves assist in managing pipeline pressure. Gradual opening or closing can moderate pressure spikes caused by pump start-up and shutdown. In large-diameter piping systems, slow-actuated butterfly valves help reduce water hammer effects that may damage pipe fittings and instruments. Pneumatic or electric actuators are often paired with butterfly valves for automated pressure regulation in modern piping networks.   4. Diversion and Flow Direction Switching In multi-branch piping layouts, sets of butterfly valves work together to divert fluid to different branches. For example, in water treatment plants, they switch flow between filter banks, or in district heating systems, they redirect hot water to different building zones. This eliminates the need to shut down the entire piping system when rerouting process media. 5. Backflow Prevention (Auxiliary Function) While butterfly valves are not dedicated check valves, properly specified butterfly valves can help limit unwanted reverse flow in certain low-risk piping applications. For critical backflow protection, they are usually combined with dedicated check valves as part of a complete piping safety assembly. Key Benefits of Butterfly Valves for Piping Networks Space-saving design: Much thinner than gate or globe valves, ideal for tight pipe rack installations Light weight: Reduces structural load on pipe supports, lowering overall project cost Fast quarter-turn operation: Manual lever, gear, pneumatic or electric actuation options available Wide size range: Works for both small process lines and large diameter main pipelines Corrosion-resistant options: Lined butterfly valves available for corrosive chemical media Selection Tips According to Piping Roles Choose resilient seated butterfly valves for water and wastewater isolation tasks. For corrosive fluids, PTFE lined butterfly valves are recommended. If automatic control is required, specify pneumatic or electric actuators to integrate with plant control systems. Confirm pressure class, flange standard and seat material to match your piping medium and operating temperature. Summary Within piping systems, butterfly valves serve five major purposes: fluid isolation, flow throttling, pressure management, flow diversion and auxiliary backflow control. Thanks to their compact footprint and versatile actuation choices, butterfly valves deliver dependable flow control across water, chemical, power and HVAC piping networks. Selecting the correct butterfly valve design ensures stable, long-term pipeline operation and reduces unplanned downtime.

  What Is a Butterfly Valve and What Are Its Key Components? A butterfly valve is a popular quarter-turn flow control device widely used in municipal and industrial piping systems to regulate, throttle, or completely shut off fluid flow. Its slim, lightweight design makes it far more space-saving than ball valves or gate valves, especially for large-diameter pipelines. Many new buyers and plant engineers want to understand exactly what a butterfly valve is and how each internal part works together to deliver reliable performance. This article breaks down the definition, core function, and all key components of a butterfly valve.   Definition and Core Function of a Butterfly Valve At its simplest, a butterfly valve controls fluid by rotating a circular disc inside the pipeline. A 90-degree rotation switches the valve between fully open and fully closed positions. It can also stay at intermediate angles for throttling flow. Wafer butterfly valves and lug butterfly valves are the two most common body styles, while offset designs like triple offset butterfly valves handle demanding high-temperature and high-pressure applications. Butterfly valves work with water, air, gas, and many chemical media across water treatment, HVAC, power, and chemical processing industries. Key Components of a Butterfly Valve 1. Valve Body The valve body forms the main pressure-containing shell and connects to the pipeline. Wafer-style bodies fit between two pipe flanges without bolt lugs. Lug bodies have threaded lugs built into the valve to hold flanges securely. Heavy-duty metal seated butterfly valves use cast iron, ductile iron, stainless steel, or alloy steel bodies to withstand harsh working environments. 2. Butterfly Disc The disc is the circular plate inside the body that blocks or allows fluid passage. It rotates with the valve stem. The disc shape directly impacts flow resistance. Concentric valves use a flat disc; double offset and triple offset valves use contoured discs to reduce seat friction during rotation. For corrosive media, discs are coated or made from stainless steel to extend service life. 3. Valve Stem The stem is a shaft that passes through the valve body and attaches firmly to the disc. It transfers torque from the actuator or handwheel to rotate the disc. Most stems are made of high-strength stainless steel to resist torsion and corrosion. Many designs use a one-piece stem and disc connection to eliminate play and improve control precision. 4. Seat / Sealing Ring The seat creates the sealing contact surface between the disc and valve body. Soft seated butterfly valves use elastomer seats such as EPDM or PTFE to achieve bubble-tight shutoff for clean media. Metal seated versions use metal-to-metal sealing surfaces, suited for high temperature, abrasive, or steam media where rubber seats cannot survive.   5. Stem Seals & Gaskets Stem seals prevent fluid leakage along the stem where it exits the valve body. Packing rings or O-rings form the primary barrier. They are critical to prevent fugitive emissions, especially for chemical and oil & gas applications. 6. Actuator / Operating Unit The actuator supplies torque to turn the stem and disc. Manual versions use a handwheel or lever. Pneumatic butterfly valves use compressed air for fast on/off or modulating control. Electric butterfly valves allow remote automated operation and precise flow adjustment. Positioners can be fitted to modulating actuators to maintain exact disc angles. How These Components Work Together When the actuator turns the valve stem, the disc rotates inside the body. In closed position, the disc presses against the seat to block fluid. When opened, the disc turns parallel to flow so media can pass through. All parts must be properly matched to the working pressure, temperature, and medium. A mismatch in seat or disc material will quickly cause leakage and premature failure. GEKO Valve Butterfly Valve Range GEKO Valve supplies complete butterfly valve assemblies with high-quality components. Our range includes soft seated and metal seated, concentric, double offset and triple offset butterfly valves, available in wafer, lug, flanged designs with manual, pneumatic or electric actuators for industrial and municipal projects worldwide. 9 Core SEO Keywords: Wafer Butterfly Valve, Lug Butterfly Valve, Triple Offset Butterfly Valve, Soft Seated Butterfly Valve, Metal Seated Butterfly Valve, Pneumatic Butterfly Valve, Electric Butterfly Valve, Automated Butterfly Valve, Heavy Duty Butterfly Valve

  A butterfly valve is a high-efficiency quarter-turn flow control device widely used in commercial and industrial piping systems. Known for its ultra-compact structure, lightweight design, fast operation, and cost-saving advantages, the butterfly valve differs greatly from ball valves, gate valves, and globe valves in structural layout and working principle. It is the preferred valve type for large-diameter pipeline flow isolation, throttling, and regulation. To help engineers and purchasers accurately apply this valve in different projects, this guide fully explains the definition, internal structure, operating principle, core types, and industrial characteristics of butterfly valves. 1. What Is a Butterfly Valve? A butterfly valve is a rotary motion valve that uses a disc-shaped closure member to control fluid flow. The core components include a valve body, central valve stem, butterfly disc, and sealing seat. Compared with traditional industrial valves, butterfly valves feature a shorter face-to-face length, lighter weight, and smaller installation space, making them ideal for large-bore pipeline systems where ball valves and gate valves are bulky and costly. Industrial butterfly valves are designed for liquid, gas, and low-viscosity fluid media, widely applied in water treatment, HVAC, fire protection, chemical, power, and municipal engineering systems. They can realize full opening, full closing, and partial flow throttling, taking into account both isolation and regulation functions.   2. Core Structure of a Butterfly Valve The stable operation of a butterfly valve depends on a precise matching structural system. The main components and their functions are as follows: Valve Body: Main pressure-bearing shell, available in cast iron, ductile iron, carbon steel, and stainless steel materials, supporting overall pipeline pressure load. Valve Stem: Transmission shaft that connects the actuator and butterfly disc, delivering rotational torque to drive the disc to rotate. Butterfly Disc: The core flow control component, rotating 90 degrees to block or open the fluid passage; streamlined disc design effectively reduces flow resistance. Sealing Seat: Installed on the valve body inner wall, including rubber soft seal and metal hard seal types, responsible for pipeline tight shutoff. Actuation Device: Including manual lever, gear, pneumatic, and electric actuators, used to control valve switching and adjustment. 3. How Does a Butterfly Valve Operate? (Working Principle) The operating principle of a butterfly valve is based on 90-degree quarter-turn rotary motion, with simple and efficient action logic: When the valve receives an opening signal, the actuator drives the valve stem and the butterfly disc to rotate 90 degrees horizontally. At this time, the disc is parallel to the fluid flow direction, and the pipeline forms a fully open passage with minimal flow resistance. When closing the valve, the disc rotates 90 degrees again to be perpendicular to the fluid direction. The disc surface closely fits the sealing seat, completely blocking the fluid passage and realizing pipeline isolation and tight shutoff. In addition to full opening and closing, the butterfly disc can stay at any intermediate angle between 0° and 90°, realizing precise flow throttling and pressure regulation, which makes butterfly valves superior to gate valves in flow control performance. 4. Main Types of Butterfly Valves by Structure & Seal According to sealing form and structural design, industrial butterfly valves are divided into two core categories, adapting to different working conditions: 4.1 Soft Seated Butterfly Valve Soft seated butterfly valves adopt elastic rubber materials such as EPDM, NBR, and Viton as sealing components. They rely on the elastic deformation of rubber to achieve bubble-tight zero leakage. With low cost and good sealing performance, they are suitable for normal-temperature water, air, and conventional non-corrosive media, widely used in municipal water supply, HVAC, and fire protection systems. 4.2 Metal Seated Butterfly Valve Metal seated butterfly valves adopt metal-to-metal hard sealing structure with alloy hard-facing treatment on the disc and seat surface. They feature high temperature resistance, high pressure resistance, and abrasion resistance, capable of adapting to high-temperature steam, flue gas, and corrosive industrial media. They are the main choice for heavy-duty industrial severe service. 4.3 Wafer vs Lug Butterfly Valve Wafer butterfly valve: Clamped between two pipe flanges, ultra-thin body, space-saving, suitable for compact installation scenarios. Lug butterfly valve: With threaded lugs on both sides, bolted fixed installation, supporting single-ended pipeline maintenance and disassembly, convenient for industrial pipeline overhaul. 5. Manual vs Automated Butterfly Valve Operation Butterfly valves support diversified driving modes to meet different operational frequency and automation needs: Manual Butterfly Valve: Equipped with lever or gear operator, suitable for low-frequency on-site manual operation, economical and easy to maintain. Pneumatic Butterfly Valve: Driven by air pressure, fast switching speed, with excellent explosion-proof performance, suitable for hazardous industrial environments. Electric Butterfly Valve: Driven by electric actuator, supporting remote control, signal feedback, and proportional regulation, matching intelligent pipeline control systems. 6. Key Advantages of Butterfly Valves Ultra-compact and lightweight, saving installation space and engineering cost Fast 90-degree quarter-turn operation, improving pipeline response efficiency Suitable for large-diameter pipeline systems with low overall cost Dual functions of isolation and flow throttling Simple structure, few wearing parts, and low maintenance cost 7. Industrial Applications of Butterfly Valves Butterfly valves are widely used in low-to-medium pressure and large-flow pipeline scenarios, including municipal water treatment, HVAC refrigeration systems, fire fighting pipeline systems, chemical fluid transmission, power plant circulating water systems, and environmental protection exhaust and flue gas treatment projects. 8. GEKO Valve High-Quality Butterfly Valve Solutions GEKO Valve provides a full range of industrial butterfly valves, including wafer and lug type, soft seat and metal seat designs, as well as manual, pneumatic, and electric actuated butterfly valves. Our products adopt precision casting and streamlined disc design, featuring stable sealing performance, flexible operation, and strong working condition adaptability. All valves comply with international industrial standards, providing reliable large-diameter fluid control solutions for global municipal and industrial pipeline projects. 9 Core SEO Keywords: Wafer Butterfly Valve, Lug Butterfly Valve, Soft Seated Butterfly Valve, Metal Seated Butterfly Valve, Pneumatic Butterfly Valve, Electric Butterfly Valve, Large Diameter Butterfly Valve, Industrial Butterfly Valve, Quarter Turn Butterfly Valve

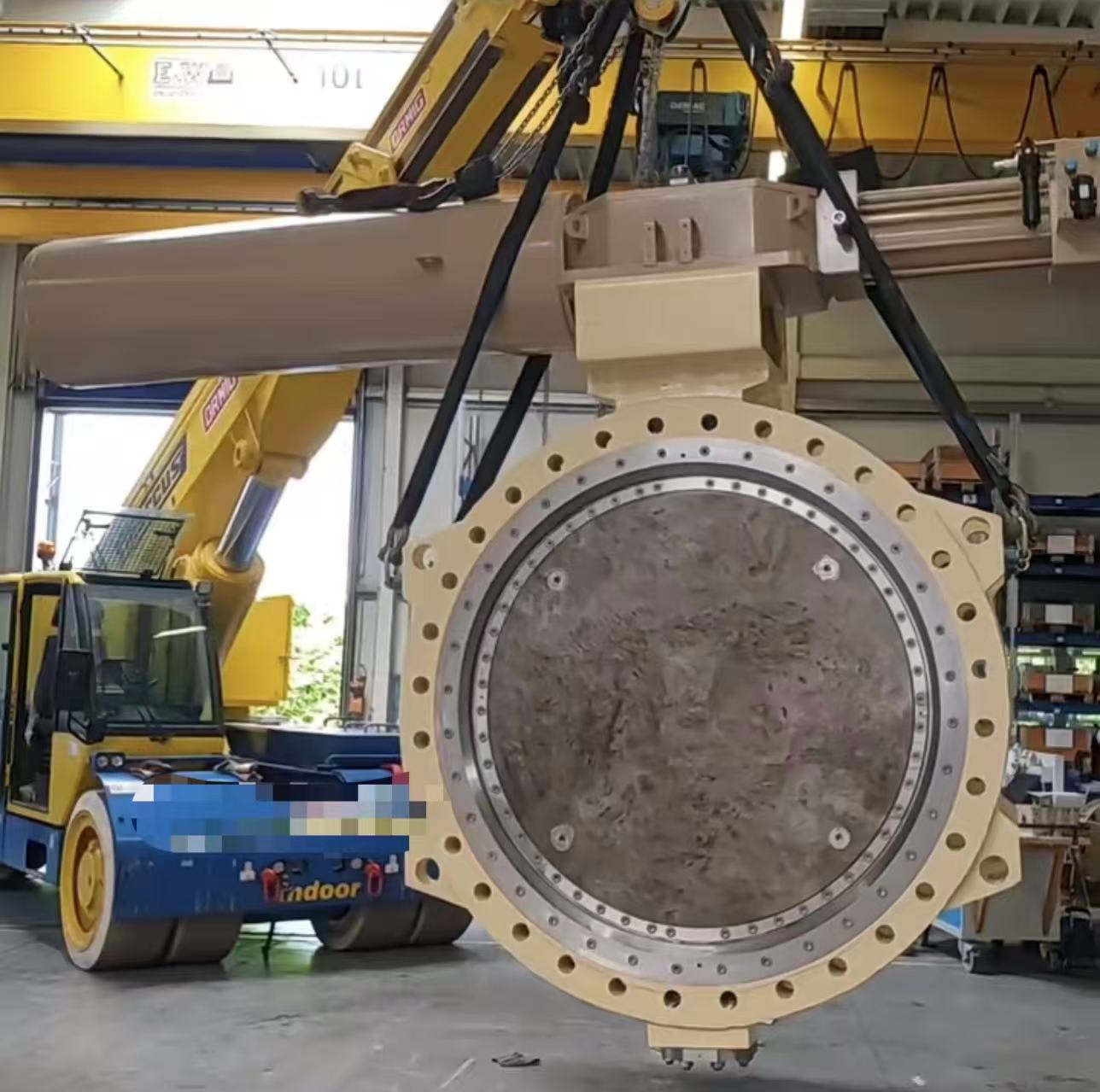

  What is a Butterfly Valve and How Does It Operate? Complete Guide A butterfly valve is a high-efficiency quarter-turn flow control device widely used in commercial and industrial piping systems. Known for its ultra-compact structure, lightweight design, fast operation, and cost-saving advantages, the butterfly valve differs greatly from ball valves, gate valves, and globe valves in structural layout and working principle. It is the preferred valve type for large-diameter pipeline flow isolation, throttling, and regulation. To help engineers and purchasers accurately apply this valve in different projects, this guide fully explains the definition, internal structure, operating principle, core types, and industrial characteristics of butterfly valves. 1. What Is a Butterfly Valve? A butterfly valve is a rotary motion valve that uses a disc-shaped closure member to control fluid flow. The core components include a valve body, central valve stem, butterfly disc, and sealing seat. Compared with traditional industrial valves, butterfly valves feature a shorter face-to-face length, lighter weight, and smaller installation space, making them ideal for large-bore pipeline systems where ball valves and gate valves are bulky and costly. Industrial butterfly valves are designed for liquid, gas, and low-viscosity fluid media, widely applied in water treatment, HVAC, fire protection, chemical, power, and municipal engineering systems. They can realize full opening, full closing, and partial flow throttling, taking into account both isolation and regulation functions.   2. Core Structure of a Butterfly Valve The stable operation of a butterfly valve depends on a precise matching structural system. The main components and their functions are as follows: Valve Body: Main pressure-bearing shell, available in cast iron, ductile iron, carbon steel, and stainless steel materials, supporting overall pipeline pressure load. Valve Stem: Transmission shaft that connects the actuator and butterfly disc, delivering rotational torque to drive the disc to rotate. Butterfly Disc: The core flow control component, rotating 90 degrees to block or open the fluid passage; streamlined disc design effectively reduces flow resistance. Sealing Seat: Installed on the valve body inner wall, including rubber soft seal and metal hard seal types, responsible for pipeline tight shutoff. Actuation Device: Including manual lever, gear, pneumatic, and electric actuators, used to control valve switching and adjustment. 3. How Does a Butterfly Valve Operate? (Working Principle) The operating principle of a butterfly valve is based on 90-degree quarter-turn rotary motion, with simple and efficient action logic: When the valve receives an opening signal, the actuator drives the valve stem and the butterfly disc to rotate 90 degrees horizontally. At this time, the disc is parallel to the fluid flow direction, and the pipeline forms a fully open passage with minimal flow resistance. When closing the valve, the disc rotates 90 degrees again to be perpendicular to the fluid direction. The disc surface closely fits the sealing seat, completely blocking the fluid passage and realizing pipeline isolation and tight shutoff. In addition to full opening and closing, the butterfly disc can stay at any intermediate angle between 0° and 90°, realizing precise flow throttling and pressure regulation, which makes butterfly valves superior to gate valves in flow control performance. 4. Main Types of Butterfly Valves by Structure & Seal According to sealing form and structural design, industrial butterfly valves are divided into two core categories, adapting to different working conditions: 4.1 Soft Seated Butterfly Valve Soft seated butterfly valves adopt elastic rubber materials such as EPDM, NBR, and Viton as sealing components. They rely on the elastic deformation of rubber to achieve bubble-tight zero leakage. With low cost and good sealing performance, they are suitable for normal-temperature water, air, and conventional non-corrosive media, widely used in municipal water supply, HVAC, and fire protection systems. 4.2 Metal Seated Butterfly Valve Metal seated butterfly valves adopt metal-to-metal hard sealing structure with alloy hard-facing treatment on the disc and seat surface. They feature high temperature resistance, high pressure resistance, and abrasion resistance, capable of adapting to high-temperature steam, flue gas, and corrosive industrial media. They are the main choice for heavy-duty industrial severe service. 4.3 Wafer vs Lug Butterfly Valve Wafer butterfly valve: Clamped between two pipe flanges, ultra-thin body, space-saving, suitable for compact installation scenarios. Lug butterfly valve: With threaded lugs on both sides, bolted fixed installation, supporting single-ended pipeline maintenance and disassembly, convenient for industrial pipeline overhaul. 5. Manual vs Automated Butterfly Valve Operation Butterfly valves support diversified driving modes to meet different operational frequency and automation needs: Manual Butterfly Valve: Equipped with lever or gear operator, suitable for low-frequency on-site manual operation, economical and easy to maintain. Pneumatic Butterfly Valve: Driven by air pressure, fast switching speed, with excellent explosion-proof performance, suitable for hazardous industrial environments. Electric Butterfly Valve: Driven by electric actuator, supporting remote control, signal feedback, and proportional regulation, matching intelligent pipeline control systems. 6. Key Advantages of Butterfly Valves Ultra-compact and lightweight, saving installation space and engineering cost Fast 90-degree quarter-turn operation, improving pipeline response efficiency Suitable for large-diameter pipeline systems with low overall cost Dual functions of isolation and flow throttling Simple structure, few wearing parts, and low maintenance cost 7. Industrial Applications of Butterfly Valves Butterfly valves are widely used in low-to-medium pressure and large-flow pipeline scenarios, including municipal water treatment, HVAC refrigeration systems, fire fighting pipeline systems, chemical fluid transmission, power plant circulating water systems, and environmental protection exhaust and flue gas treatment projects. 8. GEKO Valve High-Quality Butterfly Valve Solutions GEKO Valve provides a full range of industrial butterfly valves, including wafer and lug type, soft seat and metal seat designs, as well as manual, pneumatic, and electric actuated butterfly valves. Our products adopt precision casting and streamlined disc design, featuring stable sealing performance, flexible operation, and strong working condition adaptability. All valves comply with international industrial standards, providing reliable large-diameter fluid control solutions for global municipal and industrial pipeline projects. 9 Core SEO Keywords: Wafer Butterfly Valve, Lug Butterfly Valve, Soft Seated Butterfly Valve, Metal Seated Butterfly Valve, Pneumatic Butterfly Valve, Electric Butterfly Valve, Large Diameter Butterfly Valve, Industrial Butterfly Valve, Quarter Turn Butterfly Valve
