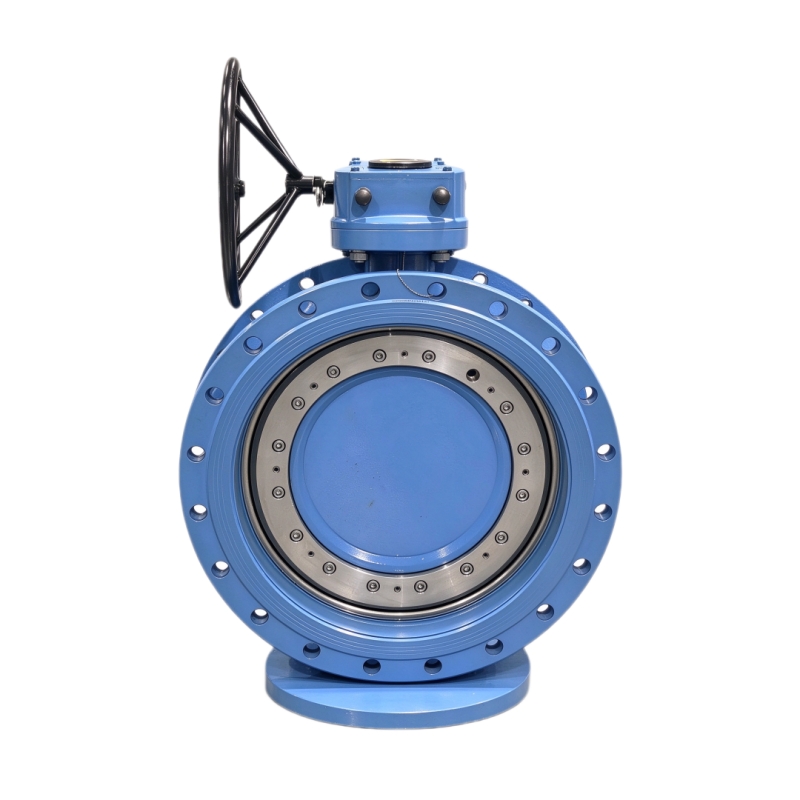

How Does a Butterfly Valve Open and Close? Full Operating Guide Butterfly valves are the most widely used quarter-turn flow control devices in industrial and municipal piping systems. Many engineers and procurement specialists select industrial butterfly valves for their compact size and cost-saving advantages, yet few fully understand the complete mechanical process of how a butterfly valve opens and closes. Unlike linear-stroke gate valves and globe valves, butterfly valves rely on precise rotary motion to change pipeline flow status. This article clearly explains the opening and closing working process, mechanical logic of different valve designs, actuation modes, and sealing coordination principles. 1. Basic Open and Close Principle of Butterfly Valves The entire opening and closing action of a butterfly valve is completed through a 90-degree quarter-turn rotation. The core moving parts include the valve stem and internal butterfly disc. The stem receives torque from manual or automated actuators and drives the disc to rotate horizontally inside the pipeline bore, realizing full opening, full closing, and intermediate throttling states. Closing Process (90° → 0°): The disc gradually rotates perpendicular to the fluid flow direction, continuously narrowing the flow passage. When reaching 0 degrees, the disc completely presses against the valve seat, blocking the pipeline and achieving tight shutoff. Opening Process (0° → 90°): The disc rotates parallel to the fluid direction, gradually expanding the flow area. At 90 degrees, the disc is fully opened, minimizing flow resistance and allowing maximum fluid passage. This simple rotary operation is what makes wafer butterfly valves and lug butterfly valves so popular for large-bore piping. 2. Complete Mechanical Action Process   The opening and closing cycle follows a fixed mechanical transmission chain, ensuring accurate and stable operation: First, the operating device (lever, gearbox, pneumatic or electric actuator) outputs rotational torque. The torque is transmitted to the central valve stem through the driving shaft. The integrated stem and disc structure rotates synchronously without idle travel. During movement, the disc gradually separates from or compresses against the sealing seat. Finally, the mechanical limit device locks the angle to complete opening or closing positioning. 3. Different Opening & Closing Logic by Valve Structure Concentric and offset butterfly valves have obvious differences in opening and closing friction, which directly affects service life and operating stability: 3.1 Concentric Butterfly Valve Operation Concentric butterfly valves have overlapping centers of the stem, disc, and pipeline. During every opening and closing stroke, the disc keeps continuous contact and friction with the seat. The operation is simple and cost-effective, suitable for low-frequency switching of conventional water treatment and HVAC pipelines. 3.2 Triple Offset Butterfly Valve Zero-Friction Operation Triple offset butterfly valves adopt a three-dimensional offset structure. During the opening process, the disc instantly separates from the seat without friction. During closing, the disc only contacts the seat at the final locking position. This zero-friction opening and closing mechanism greatly reduces seat wear, making this style of heavy duty butterfly valves suitable for high-temperature, high-pressure, and frequent switching industrial pipelines. 4. Sealing Coordination During Opening and Closing Different sealing types match different opening and closing mechanical characteristics: 4.1 Soft Seated Butterfly Valve Soft seated butterfly valves with EPDM or NBR seats rely on elastic compression to achieve zero leakage when fully closed. During closing, the disc gently squeezes the elastic seat to fill tiny gaps. During opening, the elastic seat resets automatically. This flexible sealing opening and closing mode ensures bubble-tight shutoff for clean water and gas media. 4.2 Metal Seated Butterfly Valve Metal seated butterfly valves adopt precision metal-to-metal matching. The opening and closing process realizes rigid mechanical fitting and separation. With high wear resistance and temperature resistance, they maintain stable switching performance in harsh working conditions such as high-temperature steam and abrasive slurry. 5. Opening and Closing Modes of Automated Butterfly Valves Modern industrial pipelines use automated butterfly valves to realize intelligent opening and closing control: Pneumatic Butterfly Valve: Driven by compressed air, it completes fast opening and closing strokes in seconds. With explosion-proof advantages, it is widely used in chemical and petrochemical pipeline switching. Electric Butterfly Valve: Driven by electric actuators, it features stable speed, precise angle positioning, and remote signal control. It supports delayed opening/closing and intermediate positioning, suitable for intelligent pipeline systems. Manual Butterfly Valve: Operated by lever or gear handwheel, it realizes on-site manual opening and closing, economical and convenient for low-frequency operation scenarios. 6. Common Opening & Closing Faults and Causes Valve jamming: Caused by sediment deposition, seat aging, or insufficient actuator torque Incomplete closing and leakage: Disc offset, seat wear, or foreign matter blocking the sealing surface Slow opening and closing speed: Pneumatic air pressure insufficiency or electric actuator parameter deviation 7. GEKO Valve Precise Opening & Closing Performance All GEKO butterfly valves adopt optimized rotary motion structure, ensuring flexible, smooth, and accurate opening and closing actions. Our full product range including wafer, lug, soft seat, metal seat, and triple offset butterfly valves achieves zero-friction switching, stable sealing, and long service life. Automated modulating butterfly valves support arbitrary angle opening and closing, meeting isolation and throttling control requirements of modern industrial piping systems.

What Is the Role of a Butterfly Valve in Piping Systems? Industrial and municipal piping networks transport liquids, gases and slurries across vast facilities, requiring reliable flow control hardware to keep operations safe and predictable. As a popular quarter-turn valve, the butterfly valve performs multiple core functions within piping systems. Its compact build, lightweight body and flexible operating modes make it a go-to choice for many pipeline designs, from large water mains to chemical processing lines. This article breaks down the key roles butterfly valves play in piping systems and where their strengths shine. 1. Fluid Isolation for Pipeline Maintenance & Emergency Shutoff One primary role of a butterfly valve is positive isolation. When a pipe segment, pump or downstream equipment needs inspection or repair, operators close the butterfly valve to fully cut off fluid flow. In emergency scenarios such as pipeline overpressure or equipment failure, it can rapidly shut down the line to prevent spillage and system damage. Lug and flange butterfly valves are commonly used for isolation duties, with PTFE or EPDM seats delivering tight shutoff performance. 2. Flow Throttling and Flow Regulation Beyond simple on/off service, butterfly valves are widely used for throttling flow. By rotating the disc to partial opening positions, the valve adjusts the cross-sectional flow area, controlling the volume and velocity of fluid moving through the piping. This function helps stabilize pressure and maintain consistent flow rates for processes like water distribution, HVAC circulation and chemical transfer. Note that precise throttling requires proper material selection to avoid disc erosion from high-speed media. 3. Pressure Control and Surge Mitigation Butterfly valves assist in managing pipeline pressure. Gradual opening or closing can moderate pressure spikes caused by pump start-up and shutdown. In large-diameter piping systems, slow-actuated butterfly valves help reduce water hammer effects that may damage pipe fittings and instruments. Pneumatic or electric actuators are often paired with butterfly valves for automated pressure regulation in modern piping networks.   4. Diversion and Flow Direction Switching In multi-branch piping layouts, sets of butterfly valves work together to divert fluid to different branches. For example, in water treatment plants, they switch flow between filter banks, or in district heating systems, they redirect hot water to different building zones. This eliminates the need to shut down the entire piping system when rerouting process media. 5. Backflow Prevention (Auxiliary Function) While butterfly valves are not dedicated check valves, properly specified butterfly valves can help limit unwanted reverse flow in certain low-risk piping applications. For critical backflow protection, they are usually combined with dedicated check valves as part of a complete piping safety assembly. Key Benefits of Butterfly Valves for Piping Networks Space-saving design: Much thinner than gate or globe valves, ideal for tight pipe rack installations Light weight: Reduces structural load on pipe supports, lowering overall project cost Fast quarter-turn operation: Manual lever, gear, pneumatic or electric actuation options available Wide size range: Works for both small process lines and large diameter main pipelines Corrosion-resistant options: Lined butterfly valves available for corrosive chemical media Selection Tips According to Piping Roles Choose resilient seated butterfly valves for water and wastewater isolation tasks. For corrosive fluids, PTFE lined butterfly valves are recommended. If automatic control is required, specify pneumatic or electric actuators to integrate with plant control systems. Confirm pressure class, flange standard and seat material to match your piping medium and operating temperature. Summary Within piping systems, butterfly valves serve five major purposes: fluid isolation, flow throttling, pressure management, flow diversion and auxiliary backflow control. Thanks to their compact footprint and versatile actuation choices, butterfly valves deliver dependable flow control across water, chemical, power and HVAC piping networks. Selecting the correct butterfly valve design ensures stable, long-term pipeline operation and reduces unplanned downtime.

  How Does a Butterfly Valve Control Fluid Flow? Complete Working Guide Butterfly valves are widely recognized as the most cost-effective and space-efficient fluid control devices for municipal and industrial pipelines. Unlike ball valves that provide full straight-line flow or gate valves designed only for full open or full closed isolation, industrial butterfly valves feature unique rotary disc mechanics that enable flexible fluid management. Many system designers and plant operators wonder: how does a butterfly valve control fluid flow accurately and stably? This guide explains the full flow control mechanism, different working states of butterfly valves, structural differences between product types, and practical flow control performance in modern piping systems. 1. Basic Fluid Control Principle of Butterfly Valves The core fluid control method of a butterfly valve relies on a90-degree quarter-turn rotary disc. Installed vertically in the pipeline center, the butterfly disc rotates along the valve stem to change the effective flow area inside the pipe. By adjusting the disc angle, the valve precisely changes flow resistance, fluid velocity, and pipeline pressure, thereby realizing three core flow control functions: full flow passage, partial throttling, and complete fluid shutoff. This simple and reliable rotary flow control method is the key reason why wafer butterfly valves, lug butterfly valves, and offset butterfly valves are widely used in large-diameter water, gas, and low-viscosity process fluid pipelines. 2. Three Core Flow Control States 2.1 Full Flow Open State When the disc rotates 90 degrees and is parallel to the fluid direction, the pipeline reaches maximum flow capacity. Although the disc remains inside the pipeline, the streamlined disc structure minimizes flow resistance. In this state, the industrial butterfly valve allows unrestricted fluid transmission, suitable for long-term circulating pipeline operation and maximum flow supply scenarios. 2.2 Precise Throttling and Flow Regulation State The biggest advantage of butterfly valves in fluid control is their excellent throttling performance. When the disc stays at any angle between 20% and 70% opening, it forms an adjustable shielding area inside the pipeline. The larger the shielding area, the higher the flow resistance and the lower the fluid flow rate. Modulating butterfly valves with electric or pneumatic actuators can maintain stable opening angles, realizing continuous and accurate flow balancing, pressure adjustment, and fluid distribution control for industrial systems.   2.3 Full Closed Fluid Shutoff State When the disc rotates to 0 degrees and is completely perpendicular to the fluid flow, the disc closely fits the valve seat to block the entire flow passage. Soft seated butterfly valves use elastic seat deformation to achieve bubble-tight zero leakage for clean media, while metal seated butterfly valves rely on precision metal fitting to block high-temperature, high-pressure and abrasive fluids, achieving reliable pipeline isolation and fluid cut-off. 3. How Different Butterfly Valve Types Optimize Flow Control Different butterfly valve structures deliver completely different fluid control effects, adapting to diverse industrial working conditions: 3.1 Concentric Butterfly Valves for General Flow Control Concentric butterfly valves feature coincident stem, disc and pipeline centers, providing stable basic flow regulation and isolation. They are ideal for conventional water treatment, HVAC, and fire protection pipelines with normal temperature and low pressure, offering economical and practical fluid control performance. 3.2 Double and Triple Offset Butterfly Valves for Heavy-Duty Flow Control Triple offset butterfly valves and double offset butterfly valves adopt a unique offset structure. The disc avoids friction with the seat during rotation, ensuring smooth and stable angle adjustment even under high pressure and high temperature. These heavy duty butterfly valves provide precise flow control for steam, flue gas, corrosive chemical media, and high-cycle industrial process pipelines. 3.3 Wafer vs Lug Type Flow Control Features Wafer butterfly valves feature ultra-thin bodies with low flow resistance, suitable for compact pipeline systems requiring stable large-flow control. Lug butterfly valves support unilateral pipeline disassembly while maintaining system flow control safety, facilitating segmented pipeline maintenance without affecting the overall fluid system. 4. How Actuators Support Accurate Fluid Control Stable fluid control cannot be achieved by the valve body alone; the actuator determines control accuracy and automation level: Manual Butterfly Valves: Realize simple on-site flow adjustment and pipeline isolation, suitable for low-frequency control scenarios. Pneumatic Butterfly Valves: Equipped with positioners to correct angle deviation, maintaining stable flow rate under fluctuating pipeline pressure, ideal for explosion-proof industrial fluid systems. Electric Automated Butterfly Valves: Support remote signal adjustment and proportional flow control, matching intelligent industrial systems to realize automatic fluid management and precise flow distribution. 5. Key Advantages of Butterfly Valve Fluid Control Achieve dual functions of fluid isolation and flow throttling with a single valve device Suitable for large-diameter pipeline flow control with low cost and small installation space Smooth rotary operation ensures stable fluid adjustment without pipeline surge Multiple product types adapt to clean, corrosive, high-temperature and abrasive fluid media Support manual and automatic intelligent fluid control for modern industrial systems 6. GEKO Valve Reliable Fluid Control Butterfly Valve Solutions GEKO Valve provides a full range of high-performance butterfly valves for precise industrial fluid control. Our product lineup includes soft seated and metal seated butterfly valves, concentric and triple offset butterfly valves, wafer and lug type butterfly valves, as well as manual, pneumatic and electric automated butterfly valves. All products deliver stable flow regulation, reliable shutoff performance and long service life, providing accurate and efficient fluid control solutions for water treatment, HVAC, chemical, power, and municipal engineering systems. 9 Core SEO Keywords: Industrial Butterfly Valve, Triple Offset Butterfly Valve, Soft Seated Butterfly Valve, Metal Seated Butterfly Valve, Wafer Butterfly Valve, Lug Butterfly Valve, Modulating Butterfly Valve, Heavy Duty Butterfly Valve, Automated Butterfly Valve

  What Is the Mechanism Behind a Butterfly Valve's Operation? Butterfly valves are one of the most versatile quarter-turn control valves used in modern industrial and municipal piping systems. While most engineers are familiar with the fast switching and compact structure of industrial butterfly valves, many do not fully understand the complete mechanical operation mechanism that enables reliable fluid isolation, pressure resistance, and precise flow modulation for different butterfly valve products. Unlike ball valves that rely on spherical ball sealing or gate valves with vertical stroke movement, butterfly valves adopt a unique rotary disc mechanical structure. This article deeply analyzes the full mechanical operating mechanism of butterfly valves, including torque transmission, disc movement logic, sealing mechanics of soft seated and metal seated butterfly valves, offset working principles, and actuator coordination for automated butterfly valves. 1. Overall Mechanical Operation Mechanism Overview The entire operation mechanism of a butterfly valve is based on rotary mechanical transmission and fluid dynamic matching. The actuator outputs rotational torque, which is transmitted through the valve stem to drive the internal butterfly disc to perform 90-degree quarter-turn rotation. By changing the angle of the disc inside the pipeline bore, the valve changes the flow cross-sectional area, thereby realizing three core mechanical functions: fluid cut-off, full flow passage, and intermediate throttling regulation. The whole mechanical structure features fewer transmission parts, simpler motion logic, and faster response than multi-stroke industrial valves. 2. Core Mechanical Transmission Mechanism   Torque transmission is the core power source for butterfly valve operation. The complete mechanical transmission chain consists of an actuator, valve stem, shaft pin, and butterfly disc, achieving accurate power conversion and motion output. When the actuator receives an opening or closing signal, it generates rotational torque and transmits it to the vertical valve stem. The valve stem is fixed with the butterfly disc through precision shaft pins, eliminating idle rotation and ensuring synchronous angle movement. The stem shaft relies on high-precision shaft sleeves and sealing packing to reduce friction resistance, ensuring flexible and stable rotation without jamming. This mechanical transmission mechanism converts electrical, pneumatic, or manual power into mechanical rotation, completing valve opening and closing actions efficiently. 3. Disc Flow Control Mechanical Mechanism The butterfly disc is the executive component of fluid control, and its angular displacement directly determines the pipeline flow state. Different opening angles correspond to completely different mechanical flow control states. At a 0-degree closed position, the disc is completely perpendicular to the fluid direction, forming a full barrier against the medium. Under the action of medium pressure, the disc fits tightly with the valve seat to achieve mechanical compression sealing. At a 90-degree fully open position, the disc is parallel to the fluid direction, minimizing flow resistance and allowing maximum fluid passage. At any angle between 0 and 90 degrees, the disc forms an overlapping throttling structure with the pipeline bore, using mechanical occlusion to change flow velocity and pressure, realizing continuous flow regulation. 4. Sealing Mechanical Mechanism (Soft Seal & Hard Seal) The reliable shutoff performance of butterfly valves comes from two different mechanical sealing mechanisms, applicable to different industrial working conditions:   4.1 Elastic Compression Sealing Mechanism (Soft Seat) Soft seated butterfly valves use elastic polymer seats such as EPDM and Viton. During the closing stroke, the disc mechanically squeezes the elastic seat to produce micro elastic deformation. The deformed seat fills the tiny mechanical gaps between the disc edge and the valve body, achieving zero-leakage sealing. This elastic compensation mechanical mechanism adapts to minor machining tolerances and pipeline pressure changes, ensuring tight shutoff of soft seated butterfly valves under normal temperature and low-pressure conditions. 4.2 Precision Mechanical Lapping Sealing Mechanism (Metal Seat) Metal seated butterfly valves adopt a rigid metal-to-metal sealing mechanism. After precision machining and mirror lapping, the disc and seat form a high-precision matching sealing pair. Relying on mechanical rigid contact and medium pressure self-tightening force, the valve realizes stable sealing under high-temperature, high-pressure, and abrasive working conditions. This mechanical sealing structure has no aging deformation problem and supports long-term high-cycle industrial operation of heavy duty butterfly valves. 5. Offset Butterfly Valve Zero-Friction Mechanical Mechanism Concentric and offset butterfly valves have fundamental differences in mechanical operation logic, which determines service life and pressure resistance performance. Concentric butterfly valves feature a completely coincident center of stem, disc, and pipeline. The disc keeps continuous mechanical friction with the seat during each opening and closing cycle, leading to easy seat wear. In contrast, triple offset butterfly valves and double offset butterfly valves adopt a spatial offset mechanical structure. At the initial rotation stage, the disc automatically separates from the sealing seat without friction contact. Only at the final closing angle does the disc contact the seat for positioning and sealing. This zero-friction mechanical operation mechanism greatly reduces component wear, improves valve durability, and adapts to heavy-duty frequent switching working conditions for offset butterfly valve products. 6. Automated Coordination Mechanism of Actuators Different actuators form different automatic operation mechanisms, matching modern intelligent pipeline systems: Pneumatic Butterfly Valve Mechanism: Converts compressed air pressure energy into mechanical rotation torque, featuring fast action and explosion-proof mechanical performance, suitable for hazardous industrial environments. Electric Butterfly Valve Mechanism: Uses motor drive and reducer torque amplification to achieve precise angle positioning, supporting remote signal control and proportional regulation. Manual Butterfly Valve Mechanism: Relies on manual mechanical torque input, simple transmission structure, stable and reliable for low-frequency operation. 7. Industrial Advantages of Butterfly Valve Mechanical Mechanism The unique mechanical operation structure endows industrial butterfly valves with irreplaceable industrial advantages: compact mechanical layout saves installation space for wafer and lug butterfly valves, simple transmission structure reduces failure rates, zero-friction offset mechanism extends the service life of triple offset butterfly valves, and flexible angular displacement realizes dual functions of isolation and throttling for modulating butterfly valves. These mechanical characteristics make various types of butterfly valves the preferred solution for large-diameter industrial and municipal fluid control systems. 8. GEKO Valve High-Precision Mechanical Design GEKO Valve optimizes the internal mechanical operation mechanism of all industrial butterfly valves. Adopting precision casting, CNC machining and mirror lapping technology, our wafer butterfly valves, lug butterfly valves, metal seated and soft seated butterfly valves feature uniform torque transmission, flexible rotation, precise disc positioning and stable sealing performance. Complete product series including concentric, double offset and triple offset butterfly valves fully meet the mechanical operation requirements of different low, medium and high-pressure industrial pipelines. 9 Core SEO Keywords: Industrial Butterfly Valve, Triple Offset Butterfly Valve, Soft Seated Butterfly Valve, Metal Seated Butterfly Valve, Wafer Butterfly Valve, Lug Butterfly Valve, Modulating Butterfly Valve, Heavy Duty Butterfly Valve, Automated Butterfly Valve

  Butterfly valves are indispensable quarter-turn flow control components widely deployed in municipal and industrial piping systems. To properly select, operate, and maintain butterfly valves, it is essential to fully understand their working principles. Unlike ball valves that rely on spherical ball rotation or gate valves with vertical lifting structures, butterfly valves adopt a unique disc rotary working mechanism. This article systematically explains the basic working principle, structural working logic, sealing principle, throttling principle, and working differences of different butterfly valve types, providing professional technical support for industrial pipeline design and valve application.   1. Basic Working Principle of Butterfly Valves The fundamental working principle of a butterfly valve depends on 90-degree quarter-turn rotary motion of the internal disc. The valve stem drives the disc to rotate horizontally within 0° to 90°, realizing the switching and flow adjustment of the fluid pipeline. The entire working process is simple, efficient and fast, without complex mechanical transmission structure.   Fully Open State (90°): When the disc rotates parallel to the fluid flow direction, the flow channel is fully opened. The fluid passes through the valve body with minimum flow resistance, ensuring high-flow pipeline transmission efficiency. Fully Closed State (0°): When the disc rotates perpendicular to the fluid direction, the disc surface closely fits the valve seat. The flow channel is completely blocked to realize reliable pipeline isolation and fluid cut-off. Throttling State (1°–89°): The disc can stay at any intermediate angle. By changing the overlapping area between the disc and the flow channel, the valve precisely controls fluid flow rate, medium velocity and pipeline pressure, achieving stable throttling regulation.   2. Structural Working Principle: How Core Components Work Synergistically The stable operation of butterfly valves relies on the coordinated work of multiple core components. Each part has an independent functional principle and forms a complete fluid control system: Valve Stem Transmission Principle: As the torque transmission core, the valve stem connects the actuator and the disc. It converts manual, pneumatic or electric rotational torque into disc rotation power, ensuring synchronous and accurate angle switching. Disc Flow Control Principle: The streamlined disc is the executing component for fluid control. Its rotation angle directly changes the flow cross-section, realizing linear adjustment of pipeline flow and pressure. Valve Body Positioning Principle: The valve body provides stable installation support and pressure-bearing protection. It fixes the stem and seat position, ensuring the disc fits accurately during closing and avoids positional deviation affecting sealing performance. 3. Sealing Working Principle of Butterfly Valves Sealing performance determines the shutoff reliability of butterfly valves. According to different sealing structures, the working principles are divided into soft sealing and metal hard sealing, adapting to different industrial working conditions:   3.1 Soft Seal Sealing Principle Soft seated butterfly valves adopt elastic materials such as EPDM, NBR and Viton as sealing seats. When the valve is closed, the disc squeezes the elastic seat to produce micro deformation, filling the tiny gap between the disc and the seat. This elastic compression sealing principle enablesbubble-tight zero leakage, suitable for normal-temperature, low-pressure clean media such as water and air. 3.2 Metal Hard Seal Sealing Principle Metal seated butterfly valves adopt metal-to-metal hard sealing pairs with alloy hard-facing treatment. Relying on precise machining and high-precision lapping, the metal disc and metal seat achieve rigid close fitting. This mechanical compression sealing principle is not affected by high temperature and medium corrosion, realizing stable sealing in high-temperature, high-pressure and abrasive harsh working conditions. 4. Working Principle Differences: Concentric vs Offset Butterfly Valves Concentric and offset butterfly valves have essential differences in working operation logic, which directly affects service life and pressure resistance: 4.1 Concentric Butterfly Valve Working Principle The stem center, disc center and pipeline center coincide completely. During rotation, the disc continuously rubs against the seat surface. The structure is simple and cost-effective, suitable for conventional low-pressure and normal-temperature working scenarios with low switching frequency. 4.2 Double & Triple Offset Butterfly Valve Working Principle Through unique offset structural design, the disc automatically separates from the seat surface at the initial stage of rotation and contacts the seat only at the final closing moment. This zero-friction rotation principle eliminates seat wear, greatly improves pressure resistance and high-temperature resistance, and is suitable for heavy-duty industrial working conditions with frequent switching. 5. Actuation Working Principle of Automated Butterfly Valves Different actuation modes provide diversified working control logic for butterfly valves, meeting manual and automatic industrial control needs: Manual Operation Principle: Drive the gear or stem through lever or handwheel, output artificial torque to control disc rotation, applicable for low-frequency on-site operation. Pneumatic Operation Principle: Use compressed air to push the actuator piston, convert air pressure energy into rotational mechanical energy, realizing fast valve switching with excellent explosion-proof performance. Electric Operation Principle: The electric motor outputs precise torque and angle control, supporting remote signal linkage and proportional adjustment, realizing intelligent automatic pipeline control. 6. Working Characteristics and Industrial Application Value Based on the unique quarter-turn rotary working principle, butterfly valves feature fast response, small flow resistance adjustment, compact structure and wide working condition adaptability. They not only meet conventional pipeline isolation requirements but also achieve accurate flow throttling that traditional gate valves cannot realize. With reliable working performance, they are widely used in water treatment, HVAC, fire protection, chemical, power and environmental protection industries. 7. GEKO Valve High-Performance Butterfly Valve Technology GEKO Valve strictly optimizes the structural design and working mechanism of all butterfly valves. Our concentric and triple offset butterfly valves adopt precision casting and mirror lapping technology, ensuring flexible rotation, accurate angle control and stable sealing performance. Diversified actuation and sealing configurations fully match different industrial working principles and application requirements, providing long-term stable fluid control solutions for global industrial pipeline systems. 9 Core SEO Keywords: Industrial Butterfly Valve Working Principle, High Performance Butterfly Valve, Offset Butterfly Valve, Zero Leakage Butterfly Valve, Quarter Turn Industrial Valve, Butterfly Valve Sealing Mechanism, Heavy Duty Butterfly Valve, Automated Butterfly Valve, Flow Regulating Butterfly Valve

  A butterfly valve is a high-efficiency quarter-turn flow control device widely used in commercial and industrial piping systems. Known for its ultra-compact structure, lightweight design, fast operation, and cost-saving advantages, the butterfly valve differs greatly from ball valves, gate valves, and globe valves in structural layout and working principle. It is the preferred valve type for large-diameter pipeline flow isolation, throttling, and regulation. To help engineers and purchasers accurately apply this valve in different projects, this guide fully explains the definition, internal structure, operating principle, core types, and industrial characteristics of butterfly valves. 1. What Is a Butterfly Valve? A butterfly valve is a rotary motion valve that uses a disc-shaped closure member to control fluid flow. The core components include a valve body, central valve stem, butterfly disc, and sealing seat. Compared with traditional industrial valves, butterfly valves feature a shorter face-to-face length, lighter weight, and smaller installation space, making them ideal for large-bore pipeline systems where ball valves and gate valves are bulky and costly. Industrial butterfly valves are designed for liquid, gas, and low-viscosity fluid media, widely applied in water treatment, HVAC, fire protection, chemical, power, and municipal engineering systems. They can realize full opening, full closing, and partial flow throttling, taking into account both isolation and regulation functions.   2. Core Structure of a Butterfly Valve The stable operation of a butterfly valve depends on a precise matching structural system. The main components and their functions are as follows: Valve Body: Main pressure-bearing shell, available in cast iron, ductile iron, carbon steel, and stainless steel materials, supporting overall pipeline pressure load. Valve Stem: Transmission shaft that connects the actuator and butterfly disc, delivering rotational torque to drive the disc to rotate. Butterfly Disc: The core flow control component, rotating 90 degrees to block or open the fluid passage; streamlined disc design effectively reduces flow resistance. Sealing Seat: Installed on the valve body inner wall, including rubber soft seal and metal hard seal types, responsible for pipeline tight shutoff. Actuation Device: Including manual lever, gear, pneumatic, and electric actuators, used to control valve switching and adjustment. 3. How Does a Butterfly Valve Operate? (Working Principle) The operating principle of a butterfly valve is based on 90-degree quarter-turn rotary motion, with simple and efficient action logic: When the valve receives an opening signal, the actuator drives the valve stem and the butterfly disc to rotate 90 degrees horizontally. At this time, the disc is parallel to the fluid flow direction, and the pipeline forms a fully open passage with minimal flow resistance. When closing the valve, the disc rotates 90 degrees again to be perpendicular to the fluid direction. The disc surface closely fits the sealing seat, completely blocking the fluid passage and realizing pipeline isolation and tight shutoff. In addition to full opening and closing, the butterfly disc can stay at any intermediate angle between 0° and 90°, realizing precise flow throttling and pressure regulation, which makes butterfly valves superior to gate valves in flow control performance. 4. Main Types of Butterfly Valves by Structure & Seal According to sealing form and structural design, industrial butterfly valves are divided into two core categories, adapting to different working conditions: 4.1 Soft Seated Butterfly Valve Soft seated butterfly valves adopt elastic rubber materials such as EPDM, NBR, and Viton as sealing components. They rely on the elastic deformation of rubber to achieve bubble-tight zero leakage. With low cost and good sealing performance, they are suitable for normal-temperature water, air, and conventional non-corrosive media, widely used in municipal water supply, HVAC, and fire protection systems. 4.2 Metal Seated Butterfly Valve Metal seated butterfly valves adopt metal-to-metal hard sealing structure with alloy hard-facing treatment on the disc and seat surface. They feature high temperature resistance, high pressure resistance, and abrasion resistance, capable of adapting to high-temperature steam, flue gas, and corrosive industrial media. They are the main choice for heavy-duty industrial severe service. 4.3 Wafer vs Lug Butterfly Valve Wafer butterfly valve: Clamped between two pipe flanges, ultra-thin body, space-saving, suitable for compact installation scenarios. Lug butterfly valve: With threaded lugs on both sides, bolted fixed installation, supporting single-ended pipeline maintenance and disassembly, convenient for industrial pipeline overhaul. 5. Manual vs Automated Butterfly Valve Operation Butterfly valves support diversified driving modes to meet different operational frequency and automation needs: Manual Butterfly Valve: Equipped with lever or gear operator, suitable for low-frequency on-site manual operation, economical and easy to maintain. Pneumatic Butterfly Valve: Driven by air pressure, fast switching speed, with excellent explosion-proof performance, suitable for hazardous industrial environments. Electric Butterfly Valve: Driven by electric actuator, supporting remote control, signal feedback, and proportional regulation, matching intelligent pipeline control systems. 6. Key Advantages of Butterfly Valves Ultra-compact and lightweight, saving installation space and engineering cost Fast 90-degree quarter-turn operation, improving pipeline response efficiency Suitable for large-diameter pipeline systems with low overall cost Dual functions of isolation and flow throttling Simple structure, few wearing parts, and low maintenance cost 7. Industrial Applications of Butterfly Valves Butterfly valves are widely used in low-to-medium pressure and large-flow pipeline scenarios, including municipal water treatment, HVAC refrigeration systems, fire fighting pipeline systems, chemical fluid transmission, power plant circulating water systems, and environmental protection exhaust and flue gas treatment projects. 8. GEKO Valve High-Quality Butterfly Valve Solutions GEKO Valve provides a full range of industrial butterfly valves, including wafer and lug type, soft seat and metal seat designs, as well as manual, pneumatic, and electric actuated butterfly valves. Our products adopt precision casting and streamlined disc design, featuring stable sealing performance, flexible operation, and strong working condition adaptability. All valves comply with international industrial standards, providing reliable large-diameter fluid control solutions for global municipal and industrial pipeline projects. 9 Core SEO Keywords: Wafer Butterfly Valve, Lug Butterfly Valve, Soft Seated Butterfly Valve, Metal Seated Butterfly Valve, Pneumatic Butterfly Valve, Electric Butterfly Valve, Large Diameter Butterfly Valve, Industrial Butterfly Valve, Quarter Turn Butterfly Valve

  What is a Butterfly Valve and How Does It Operate? Complete Guide A butterfly valve is a high-efficiency quarter-turn flow control device widely used in commercial and industrial piping systems. Known for its ultra-compact structure, lightweight design, fast operation, and cost-saving advantages, the butterfly valve differs greatly from ball valves, gate valves, and globe valves in structural layout and working principle. It is the preferred valve type for large-diameter pipeline flow isolation, throttling, and regulation. To help engineers and purchasers accurately apply this valve in different projects, this guide fully explains the definition, internal structure, operating principle, core types, and industrial characteristics of butterfly valves. 1. What Is a Butterfly Valve? A butterfly valve is a rotary motion valve that uses a disc-shaped closure member to control fluid flow. The core components include a valve body, central valve stem, butterfly disc, and sealing seat. Compared with traditional industrial valves, butterfly valves feature a shorter face-to-face length, lighter weight, and smaller installation space, making them ideal for large-bore pipeline systems where ball valves and gate valves are bulky and costly. Industrial butterfly valves are designed for liquid, gas, and low-viscosity fluid media, widely applied in water treatment, HVAC, fire protection, chemical, power, and municipal engineering systems. They can realize full opening, full closing, and partial flow throttling, taking into account both isolation and regulation functions.   2. Core Structure of a Butterfly Valve The stable operation of a butterfly valve depends on a precise matching structural system. The main components and their functions are as follows: Valve Body: Main pressure-bearing shell, available in cast iron, ductile iron, carbon steel, and stainless steel materials, supporting overall pipeline pressure load. Valve Stem: Transmission shaft that connects the actuator and butterfly disc, delivering rotational torque to drive the disc to rotate. Butterfly Disc: The core flow control component, rotating 90 degrees to block or open the fluid passage; streamlined disc design effectively reduces flow resistance. Sealing Seat: Installed on the valve body inner wall, including rubber soft seal and metal hard seal types, responsible for pipeline tight shutoff. Actuation Device: Including manual lever, gear, pneumatic, and electric actuators, used to control valve switching and adjustment. 3. How Does a Butterfly Valve Operate? (Working Principle) The operating principle of a butterfly valve is based on 90-degree quarter-turn rotary motion, with simple and efficient action logic: When the valve receives an opening signal, the actuator drives the valve stem and the butterfly disc to rotate 90 degrees horizontally. At this time, the disc is parallel to the fluid flow direction, and the pipeline forms a fully open passage with minimal flow resistance. When closing the valve, the disc rotates 90 degrees again to be perpendicular to the fluid direction. The disc surface closely fits the sealing seat, completely blocking the fluid passage and realizing pipeline isolation and tight shutoff. In addition to full opening and closing, the butterfly disc can stay at any intermediate angle between 0° and 90°, realizing precise flow throttling and pressure regulation, which makes butterfly valves superior to gate valves in flow control performance. 4. Main Types of Butterfly Valves by Structure & Seal According to sealing form and structural design, industrial butterfly valves are divided into two core categories, adapting to different working conditions: 4.1 Soft Seated Butterfly Valve Soft seated butterfly valves adopt elastic rubber materials such as EPDM, NBR, and Viton as sealing components. They rely on the elastic deformation of rubber to achieve bubble-tight zero leakage. With low cost and good sealing performance, they are suitable for normal-temperature water, air, and conventional non-corrosive media, widely used in municipal water supply, HVAC, and fire protection systems. 4.2 Metal Seated Butterfly Valve Metal seated butterfly valves adopt metal-to-metal hard sealing structure with alloy hard-facing treatment on the disc and seat surface. They feature high temperature resistance, high pressure resistance, and abrasion resistance, capable of adapting to high-temperature steam, flue gas, and corrosive industrial media. They are the main choice for heavy-duty industrial severe service. 4.3 Wafer vs Lug Butterfly Valve Wafer butterfly valve: Clamped between two pipe flanges, ultra-thin body, space-saving, suitable for compact installation scenarios. Lug butterfly valve: With threaded lugs on both sides, bolted fixed installation, supporting single-ended pipeline maintenance and disassembly, convenient for industrial pipeline overhaul. 5. Manual vs Automated Butterfly Valve Operation Butterfly valves support diversified driving modes to meet different operational frequency and automation needs: Manual Butterfly Valve: Equipped with lever or gear operator, suitable for low-frequency on-site manual operation, economical and easy to maintain. Pneumatic Butterfly Valve: Driven by air pressure, fast switching speed, with excellent explosion-proof performance, suitable for hazardous industrial environments. Electric Butterfly Valve: Driven by electric actuator, supporting remote control, signal feedback, and proportional regulation, matching intelligent pipeline control systems. 6. Key Advantages of Butterfly Valves Ultra-compact and lightweight, saving installation space and engineering cost Fast 90-degree quarter-turn operation, improving pipeline response efficiency Suitable for large-diameter pipeline systems with low overall cost Dual functions of isolation and flow throttling Simple structure, few wearing parts, and low maintenance cost 7. Industrial Applications of Butterfly Valves Butterfly valves are widely used in low-to-medium pressure and large-flow pipeline scenarios, including municipal water treatment, HVAC refrigeration systems, fire fighting pipeline systems, chemical fluid transmission, power plant circulating water systems, and environmental protection exhaust and flue gas treatment projects. 8. GEKO Valve High-Quality Butterfly Valve Solutions GEKO Valve provides a full range of industrial butterfly valves, including wafer and lug type, soft seat and metal seat designs, as well as manual, pneumatic, and electric actuated butterfly valves. Our products adopt precision casting and streamlined disc design, featuring stable sealing performance, flexible operation, and strong working condition adaptability. All valves comply with international industrial standards, providing reliable large-diameter fluid control solutions for global municipal and industrial pipeline projects. 9 Core SEO Keywords: Wafer Butterfly Valve, Lug Butterfly Valve, Soft Seated Butterfly Valve, Metal Seated Butterfly Valve, Pneumatic Butterfly Valve, Electric Butterfly Valve, Large Diameter Butterfly Valve, Industrial Butterfly Valve, Quarter Turn Butterfly Valve
