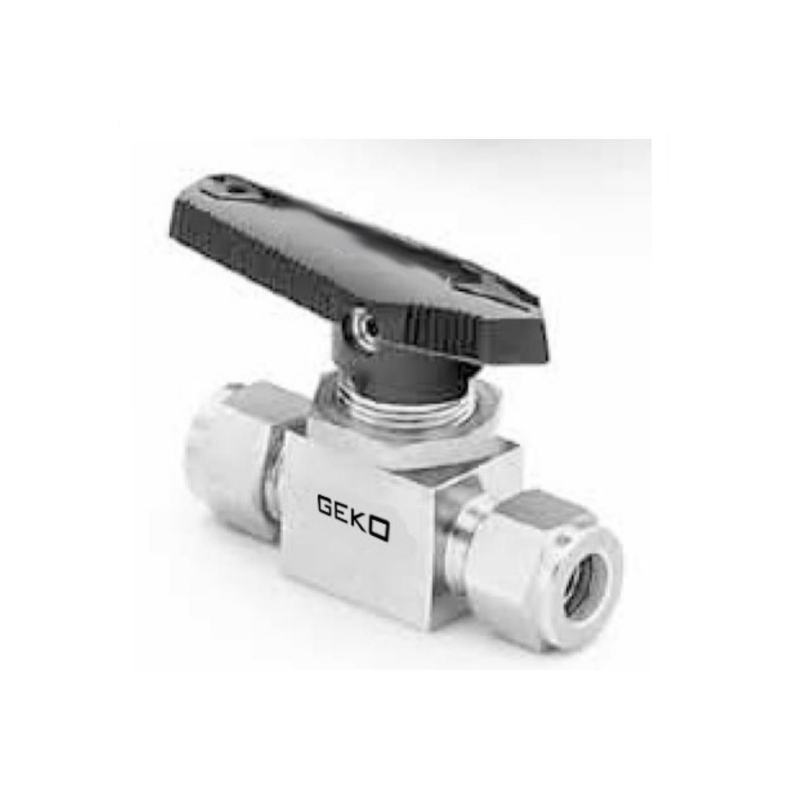

Name: High Pressure One-Piece Instrument Ball Valve
Availability: InStock

ONE-PIECE INSTRUMENTATION BALL VALVE (20G / 21G / 22G / 23G / 24 / 25 SERIES)

Size Range

1/16" – 3/4" (3 mm – 12 mm)

Body Materials

316 / 316L Stainless Steel, Brass, Alloy 400

Temperature Range

–65°F to 300°F (–53°C to 148°C)

Packing Materials

Modified PTFE, UHMWPE, or PTFE

Maximum Working Pressure

Up to 3000 psig (206 bar), depending on valve size

Flow Coefficients (Cv)

0.05 – 12, depending on valve type

Valve Configurations

Straight-pattern and Angle-pattern designs

Flow Patterns

On-off (2-way), Switching (3-way, 5-way, 7-way), Crossover (4-way, 6-way)

End Connection Types

NPT, ISO Taper (PT), and Tube Fittings (Swagelok-type)

Shutoff Rating

Class VI Bubble-Tight, Zero Leakage (factory tested)

Applicable Standards

ASME B16.34, EN12516, MSS SP-25, GB/T 12237

Testing Standard

100% factory tested for pressure and leakage

Handle Options

Aluminum lever, Stainless steel lever, or Nylon handle (blue, green, orange, red, yellow, oval)

Angle-Pattern Notes

Same options and accessories as straight-pattern; pressure-temperature ratings, Cv values, and dimensions differ

Typical Applications

Instrumentation panels, sampling systems, process gas control, heating or cooling loops, environmental and thermal cycling systems

Series Options

20G / 21G / 22G / 23G / 24 / 25 Series – available for 2-way, 3-way, 4-way, 5-way, 6-way, and 7-way flow configurations

High Pressure One-Piece Instrument Ball Valve

Product sizes from 1/8” to 1”, with working pressures from 10,000 to 60,000

psi, and temperature ranges from -422°F to 1200°F.

Optional materials include High Strength 316 Stainless Steel.

Unique Design of GEKO Instrument Valve

GEKO instrument valves have multiple configurations to choose from,

suitable for low and high pressure environments, and can achieve precise

flow control in analytical, instrumentation, and scientific applications.

In applications that require precise flow levels, they can be finely adjusted

with flow coefficients ranging from 0.004 to 0.16. There are various handle

options available for measuring valves, which can achieve repeatable flow

regulation, enhanced flow setting control, or use a screwdriver for flow setting

adjustment in low-pressure applications.

GEKO instrument valves are applied in multiple industries

Petrochemical and natural gas industries
GEKO instrument valves are widely used in refining and natural gas systems, and the materials and designs we choose can maintain effective operation of fluid systems even in harsh environments.
Water and wastewater treatment
These instrument valves have corrosion-resistant coatings and standard connections, which can optimize the flow efficiency of water and wastewater treatment systems.
Ship and Ocean Engineering
We collaborate with global clients to help them achieve their goals in clean energy production, distribution, compression, refueling, and transportation applications safely and efficiently.
Environmental Protection and Industrial Water Treatment
We can provide a wide range of fluid system products and services for your water or wastewater treatment plant.
