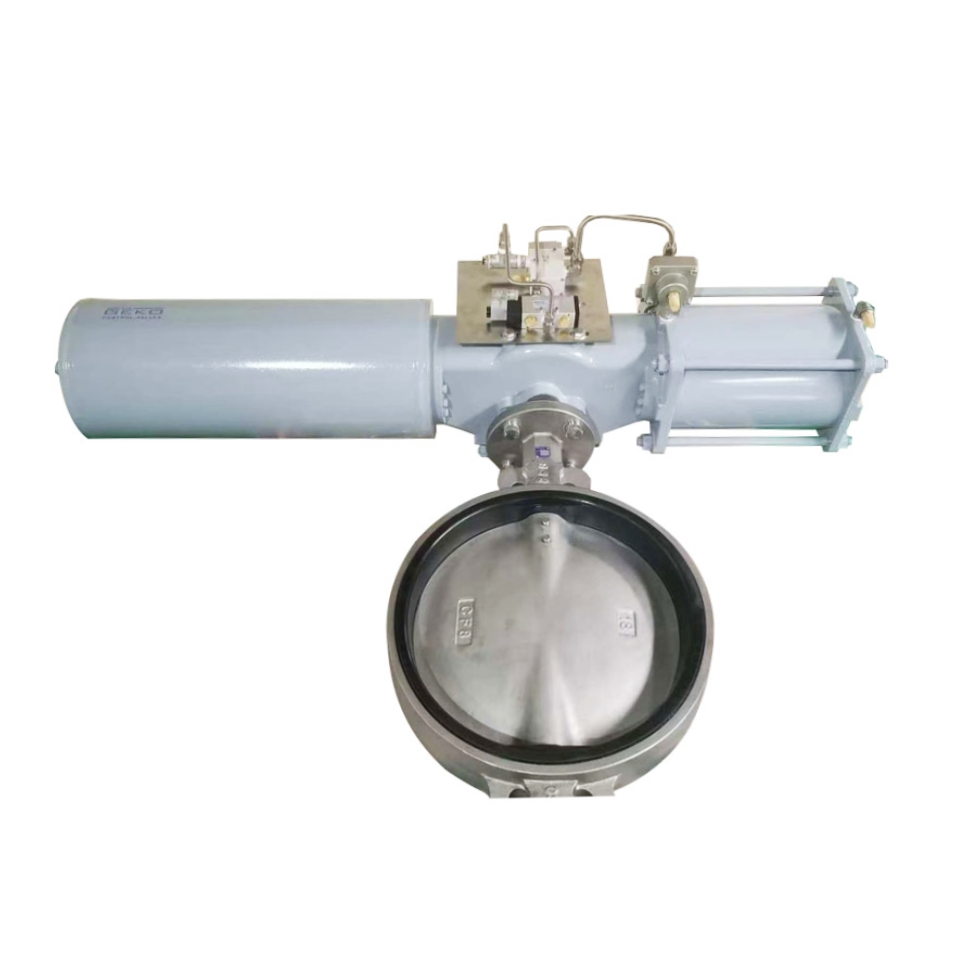

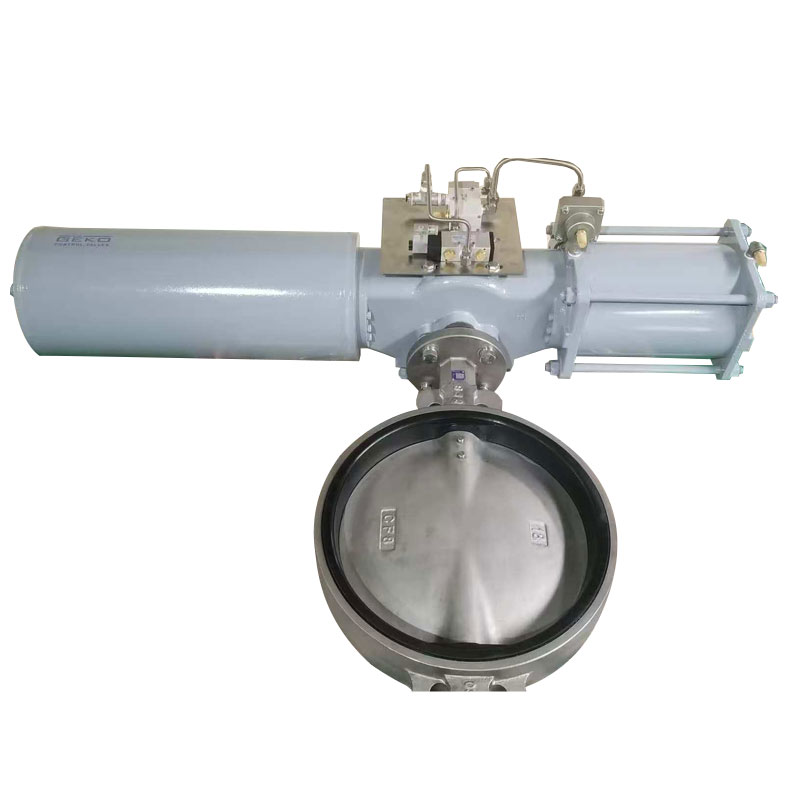

GKV710 Pneumatic On-Off Butterfly Valve combine 200 psi performance with a relatively low operating torque. The secret is a design that matches a specially-shaped disc edge with a unique elastomer contour. The result is a low friction seal that operates easier and lasts longer. Easy operation, reliable and durable, low wear, low operating torque, and lightweight.
|
GEKO Pneumatic On-Off Butterfly Valve |
|
|
Size Range 2"~160"（DN50~DN4000）
|
Body Materials Carbon steel (WCB, A105), stainless steel (CF8/CF8M, CF3/CF3M), alloy steel (F22, WC6, WC9), duplex/super duplex (2205, 2507), nickel-based alloys (Inconel, Hastelloy, Monel), or special materials (Titanium, Zirconium, Tantalum).
|
|
Temperature Range -320°F to 842°F（-196°C to 450°C）
|
Stem Materials 17-4PH, 410 Stainless Steel, XM-19 (Nitronic 50),stainless steel (410, 420, 431, 17-4PH, 316) or nickel-based alloys, optionally hardened or coated for extra strength and wear resistance |
|
Maximum Allowable Operating Pressure ASME 150LB, 300LB, 600LB 900LB/ EN 1092 PN 10, 16, 25, 40, 63, 100, 150
|
Seat Materials PTFE, RPTFE, Viton, EPDM
|
|
Shut off Rating Zero Leakage
|
Disc Materials Stainless steel, duplex stainless steel, or nickel-based alloys, with optional hard-facing (Stellite, WC) or HVOF coating for wear and corrosion resistance. |
|
Design Standard API 609, ASME B16.34, ASME VIII, API 600 |
Flange Drilling ASME B16.5, ASME B16.47, EN 1092, ISO 7005 |
|
End Connections Wafer, Lug, Double Flanged |
Testing standard ISO 5208, EN12266-1, API 6D, API 598, BS 6755 |
|
Ports Full bore |
Connect Platform ISO5211, Bracket |
|
Face To Face AAPI 609, ASME B16.10, ISO 5752, EN 558 |
Applications Oil and gas, steam, power generation, refining, chemical processing |
GEKO Pneumatic On-Off Butterfly Valve
The GEKO centric line butterfly valve is manufactured in accordance with the
latest MSS SP-67, API 609 (USA), and ISO 7005 standards. All valves are fully
tested according to API 598 standards, including static pressure tests, gas
tightness tests, and overall performance tests, ensuring zero leakage and high
quality.
Valve size range: DN40 ~ DN600
Pressure rating: PN 1.0 ~ 1.6 MPa
Incorporate both DIN and ASME design standards
Actuator connection dimensions can be customized according to ISO 5211,
ANSI standards, or user requirements.
Applicable flange standards:
ISO 9005–1992 pipeline flange system, PN1.0 ~ PN1.6
ASME / ANSI B16.5-1996 pipeline flange system, CL125, CL150
JIS B2211~2213-1996 pipeline flange system, 5K, 10K, 16K
GB/T 9113-2000 pipeline flange system, PN1.0 ~ PN1.6
The Feature of GEKO Pneumatic On-Off Butterfly Valve
- Manufactured strictly according to MSS SP-67 and API 609 standards.
- Tight sealing at rated pressures (1.0 MPa and 1.6 MPa), achieving zero leakage.
- Advanced multi-seal design prevents direct contact between the valve body and
the medium, ensuring leak-free performance.
- Scientifically designed seat sealing surfaces provide a tight connection between
the seat and the body, as well as between the seat and flanges, without requiring
additional sealing components.
- Optimized valve body shape and installation structure ensure better sealing, lower
operating torque, higher flow capacity, reduced flow resistance, and bidirectional
sealing performance.
- Designed and manufactured to multiple standards, compatible with various flange
systems, offering excellent interchangeability.
- Top flange conforms to ISO 5211, enabling easy installation of pneumatic, electric,
or manual actuators. All components are corrosion-resistant, making the valve suitable for harsh environments.
