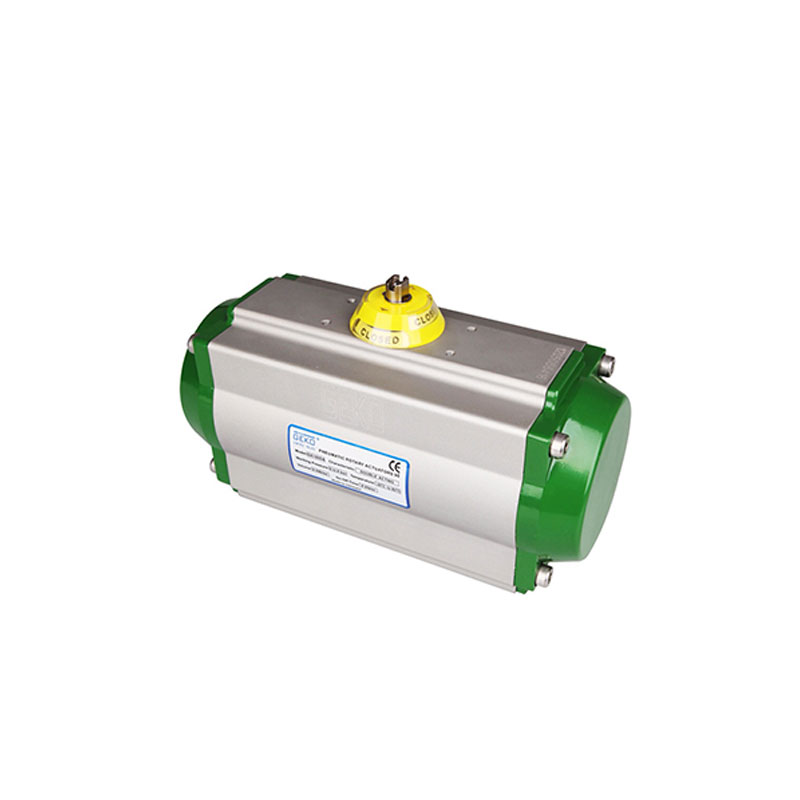

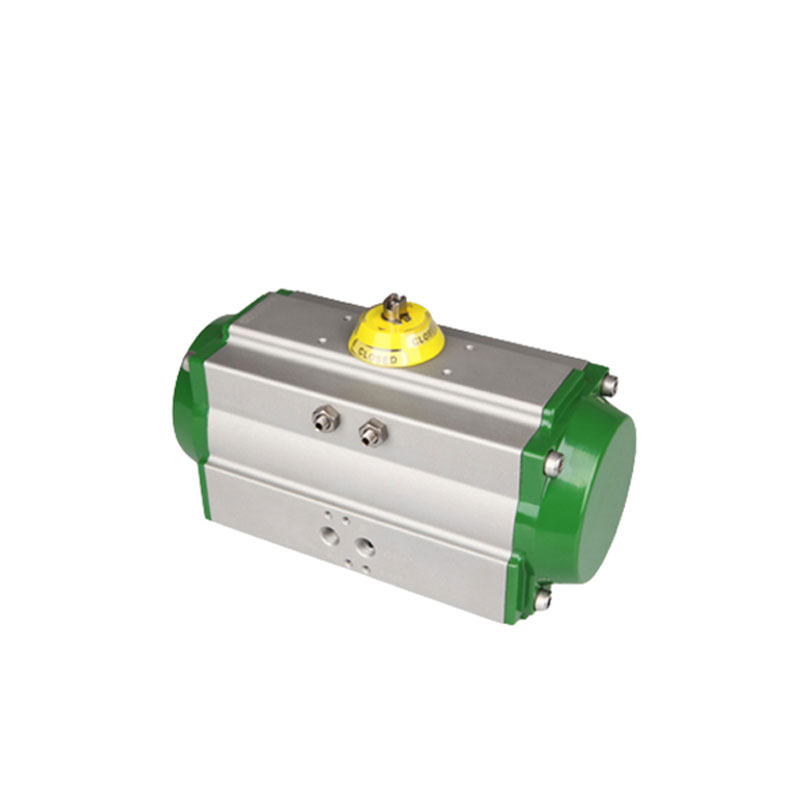

Pneumatic Rack and Pinion Actuator

The new technological features developed and integrated in this product line

enable the product to have optimal multifunctionality, making it easier to achieve

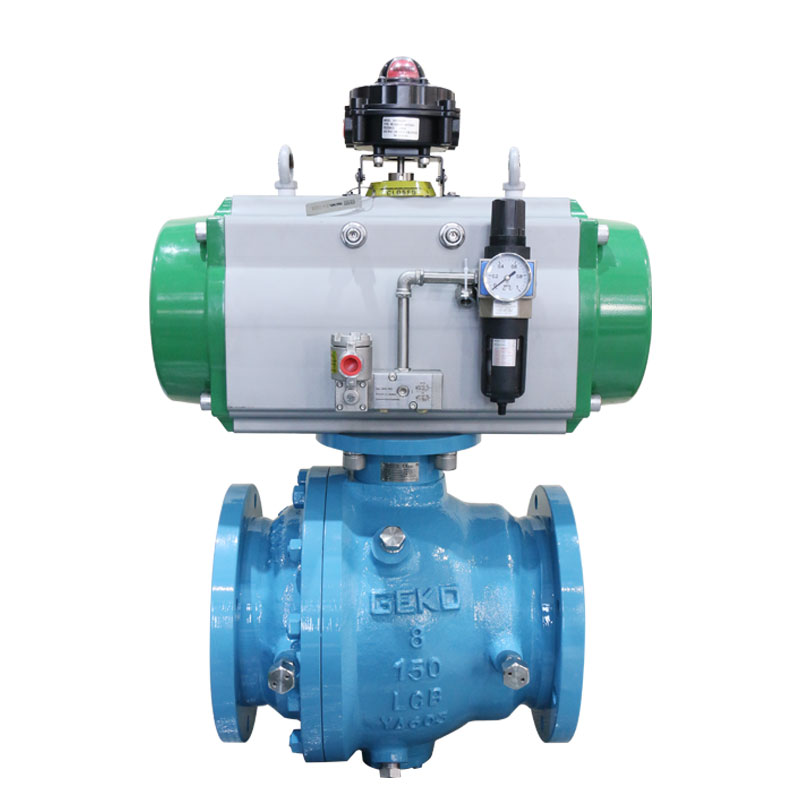

valve automation.

This design fully complies with all international standards.

The fourth generation upgrade series offers the widest and most complete range

of actuator series, with enormous option availability.

The fourth generation upgrade series includes the following combinations:

-17 different model sizes, including double acting and spring return

-6 different levels of protection

-3 different operating temperatures (from -55 ° C to+150 ° C)

-There are multiple ISO flange and drive shaft connection options for each actuator size.

The standard configuration is a -40 ° C low-temperature structure, with stainless

steel nuts and bolts as the base.

End Cap

Die-cast aluminum alloy surface with metal powder coating, PTFE coating,

or nickel plating for durability and corrosion resistance.

Piston

Double-piston rack made of hard-anodized aluminum or galvanized steel.

Symmetrical installation ensures fast action and long service life. Piston can

be inverted to change rotation direction.

Stroke Adjustment

Two independent screws allow precise ±5° switch position adjustment.

High-Performance Spring High-quality coated springs, pre-compressed for

strong corrosion resistance and long service life. Easy disassembly and

adjustable torque by changing spring number.

Bearing & Guide Plate

Low-friction composite materials prevent metal-to-metal contact. Easy to

maintain and replace.

Seal

Nitrile rubber for normal temperature; fluorine or silicone rubber for high/low

temperatures, ensuring reliable sealing.
