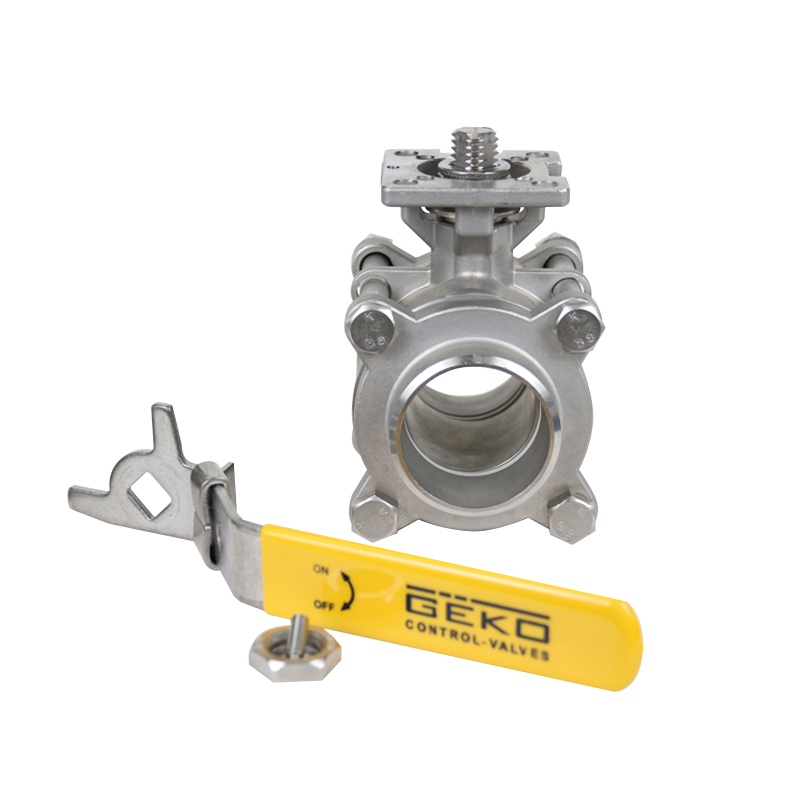

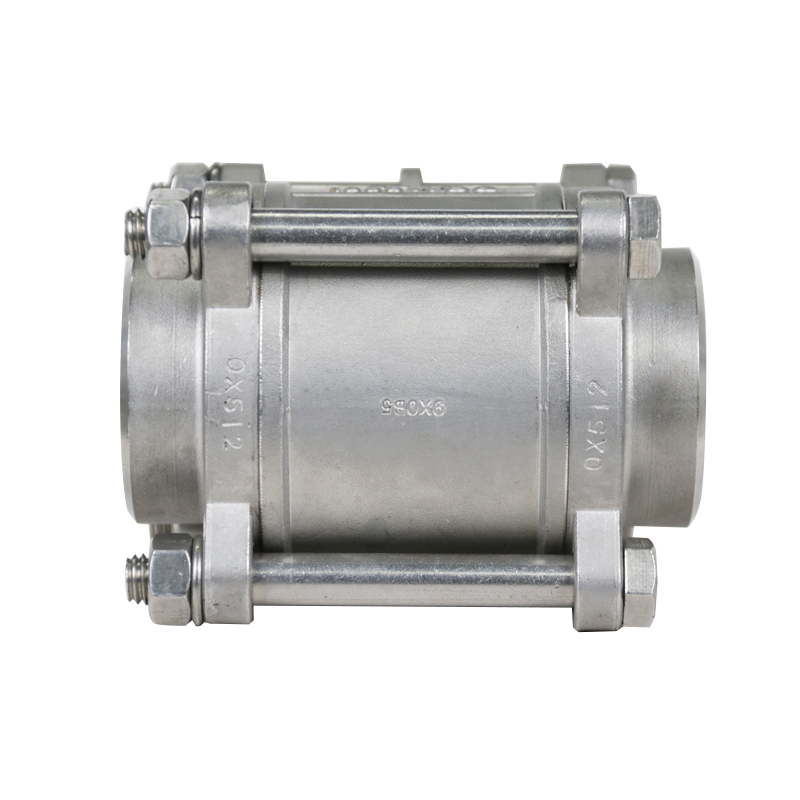

Name: Stainless Steel Ball Valve Welded End
Availability: InStock

GKV-133 FULL BORE THREE PIECE BALL VALVE WELDING END

Size Range

NPS1/4" - 4"（8mm - 100mm）

Body Materials

Stainless Steel (CF8M)

Temperature Range

-50°F to 450°F (-46°C to 232°C)

Stem Materials

ASTM A479 Gr 316

Maximum Allowable Operating Pressure

1/4" - 2" 1000psi WOG ，2.5" - 4" 800psi WOG

Seat Materials

RPTFE

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A351 Gr CF8M

Body Style

Three Piece

Design Standard

ASME B16.34

End Connections

Butt Weld

Testing standard

API 598

Ports

Full Port

Connect Platform

ISO5211

Face To Face

Manufacturers Standard

Applications

Process and OEM equipment

GKV-133 Series Stainless Steel Ball Valve Welded End Complies With ISO 5211

The GKV-133 series valve can be made of precision cast CF8M (316L) stainless steel or WCB carbon steel material, and adopts a swing type middle valve body design for easy online maintenance.

All valve body castings are engraved with the foundry heat number,

achieving full process traceability and ensuring quality and reliability.

For manually operated valves, the GKV-133 series valve is equipped

with a stainless steel safety locking handle and limit device, which limits

the rotation angle of the handle to 90 °.

Other features of the GKV-133 series welded ball valve include replaceable

seat and stem packing, easy maintenance, and extended service life.

The integrated ISO 5211 installation platform can achieve precise alignment,

simplifying the installation of actuators, gear operating devices, and other

execution and control accessories.

Unique design of GKV133 full bore welded ball valve

The GKV-133 series full bore, three piece ball valve is designed to offer all

the advantages of a three piece ball valve at an economical price, including

heavy-duty, internal inlet anti spray valve stem, and adjustable live load

packing, ensuring zero leakage, low torque, and extended service life.

The GKV-133 series valves are available in two types: investment cast CF8M

(316L) stainless steel or WCB carbon steel. All body castings are marked with

casting furnace numbers to achieve full traceability, ensuring quality and

reliability.

Product Brochure

Soft sealed ball valve - English

GKV-133 series ISO5211 welded ball valve is applied in multiple industries

Petrochemical and natural gas industries
ISO5211 welded ball valves are suitable for installing pneumatic or electric actuators and are widely used in refining and natural gas systems for pipeline cutting, liquefied natural gas flow control, and sulfur-containing medium diversion.
Municipal water supply and HVAC engineering
These full-bore valves with corrosion-resistant coatings and standard flange connections optimize flow efficiency in water supply, HVAC and district heating systems (-20°C~150°C).
Ship and Ocean Engineering
For the high salt spray environment of seawater, the valve body is made of 316 stainless steel and epoxy coating.
Environmental Protection and Industrial Water Treatment
Corrosion-resistant valves with soft seals and high-performance flange connections enable reliable chemical dosing,while reducing maintenance costs
