The GKV212 series One Piece Pneumatic Ball Valve is a one-piece precision cast ASME B16.34 Class 150,300 to Class 2500lb full bore flanged floating ball valve.
Compact and cost-effective valves designed for reliable shut-off in general industrial and commercial applications. Their simple one-piece body construction reduces potential leakage points, ensuring tight sealing and easy maintenance. Lightweight yet durable, GEKO one-piece ball valves are widely used for water, air, oil, and gas pipelines, offering excellent performance at a competitive cost. Customized sizes and materials are also available to meet different service conditions.
|

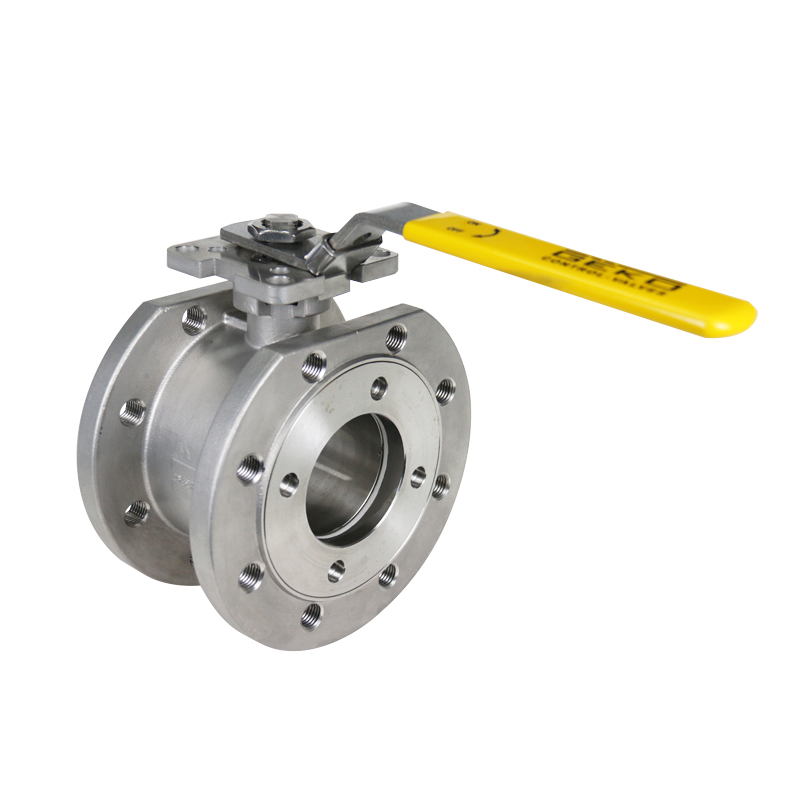

GKV-212 ONE-PIECE FULL PORT BALL VALVE FLANGE END
|
|
|
Size Range NPS 1/2" to 24",DN15 to DN 600
Operating Pressure ASME Class 150LB ~ 2500LB, EN 1092 PN10 ~ PN420
Temperature Range -50°F to 1472°F（-46°C to 800°C） |
Body Materials ASTM A351 CF8, CF3, CF8M, CF3M (Cast stainless steel); ASTM A182 F304, F316, F316L, F904L, F51 (Duplex stainless steel, Forged stainless steel). ASTM A216 WCB, WCC (Cast carbon steel); ASTM A350 LF2, ASTM A352 LCB (low-temperature carbon steel); ASTM A105 (forged steel). ASTM A182 F22 (Cr-Mo alloy steel); Special Alloys (Nickel-Based & High-Performance): Inconel 600, 625, 825, Incoloy 800H, Hastelloy C276, C3, C4, Monel 400, Monel K500; B463 Alloy 20; ASTM B348 Titanium Gr.2, Gr.3, Gr.5, Gr.12; ASTM B493 Zirconium R60702, ASTM B365 Tantalum R05200, R05400 (Tantalum).
|
|
Leakage Class IV, Class V, Class VI |
Stem Materials ASTM A479 Type 316, ASTM A564 Type 17-4PH, ASTM A182 Type F51 |
|
Face To Face ASME B16.10, EN 588-1 F4/F5, DIN 3202 F4/F5, JIS B2002 |
Seat Materials TFM1600， Optional: Tek Fi ®*、 UHMWPE, RPTFE, PTFE, etc |
|
Testing Standard API 598, EN-12266-1 All valve stems and seats are tested to 100 psi gas closure test for bubble tight integrity before shipping, Vacuum Service to 29" Hg
|
Ball Materials Stainless Steel A351 CF8 / CF8M，A182 F304 / F316 / F316L，A105，A216 WCB ，A350 LF2， Titanium B348 Gr.2 / Gr.5，Zirconium B493 R60702，Tantalum B365 R05200 / R05400，Hastelloy ，Nickel-Based Alloys，Inconel 600/625/825，Monel 400/ Monel K500，B463 Alloy 20，F51 (Duplex Stainless Steel)，A182 F51， A182 F22 ，A182 F904L
|
|
End Connections Flanged Ends |
Design Standard ASME B16.34, EN12516, GB/T 12237 |
|

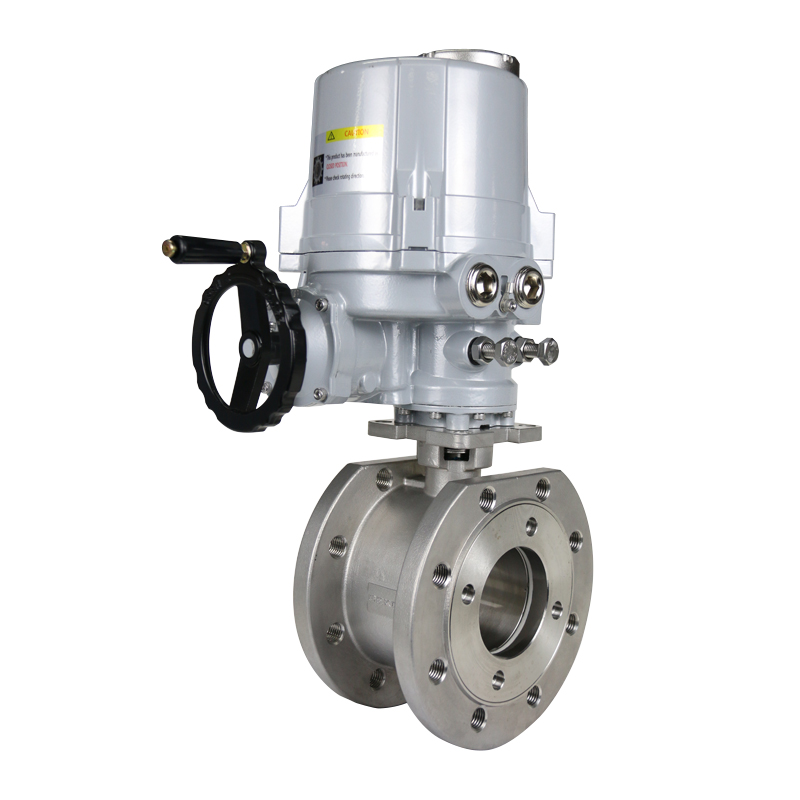

Operation Pneumatic, Electric |
Connect Platform ISO5211 |

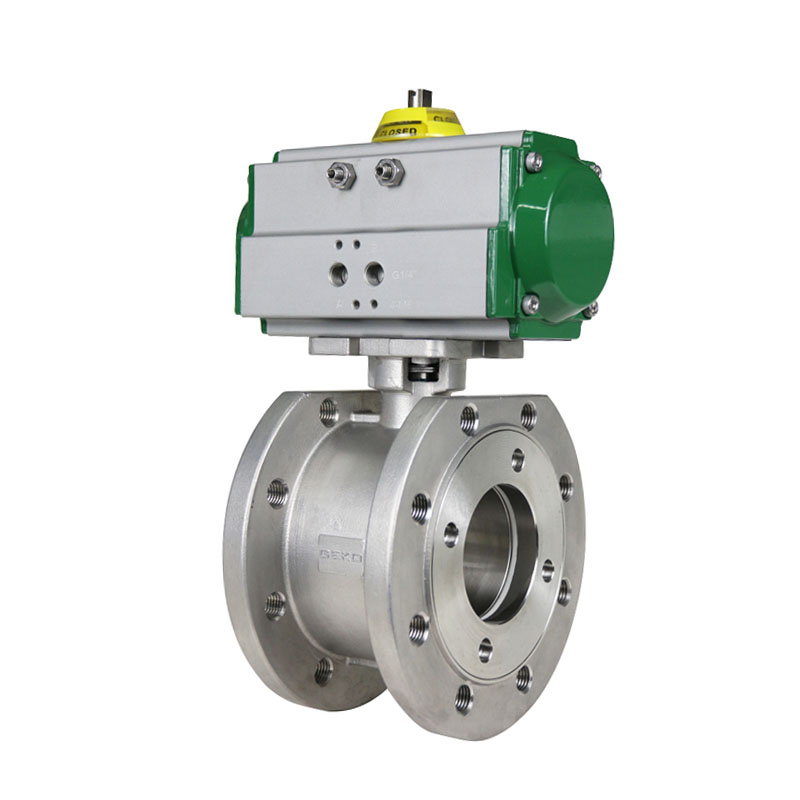

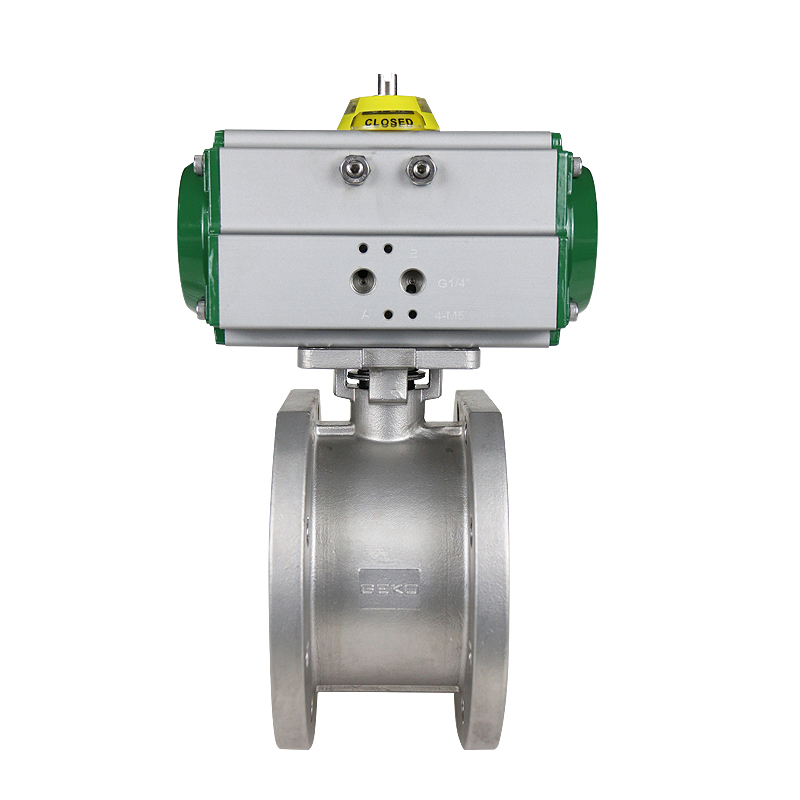

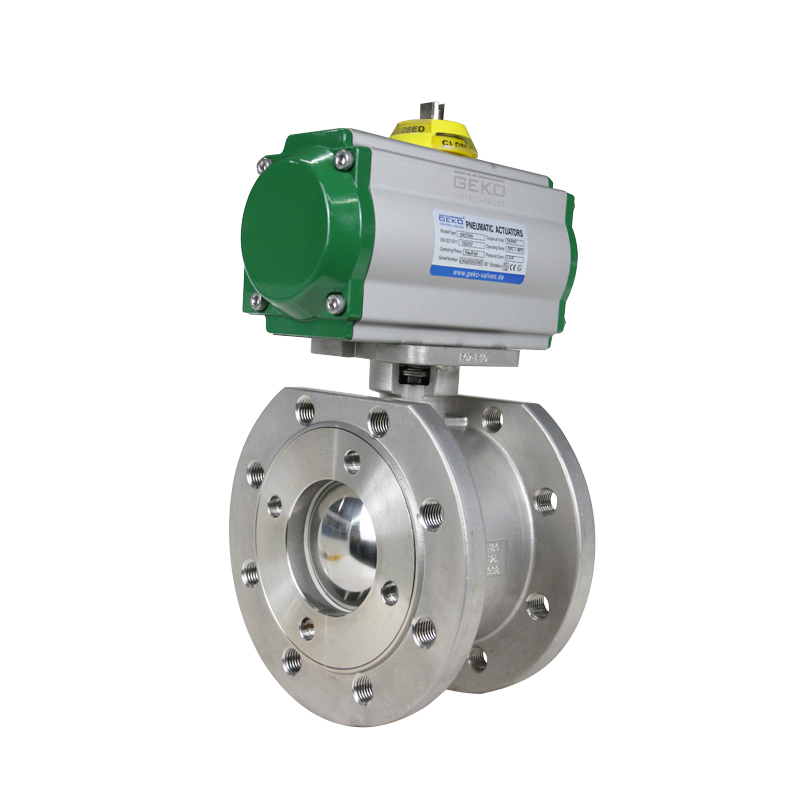

GKV212 Pneumatic one-piece ball valve
The GKV212 series adopts a sturdy and durable flange integrated ball valve design and a corrosion-resistant stainless steel or carbon steel structure. We offer a variety of optional valve cores and configurations, including V-shaped ball valves, suitable for various working conditions.

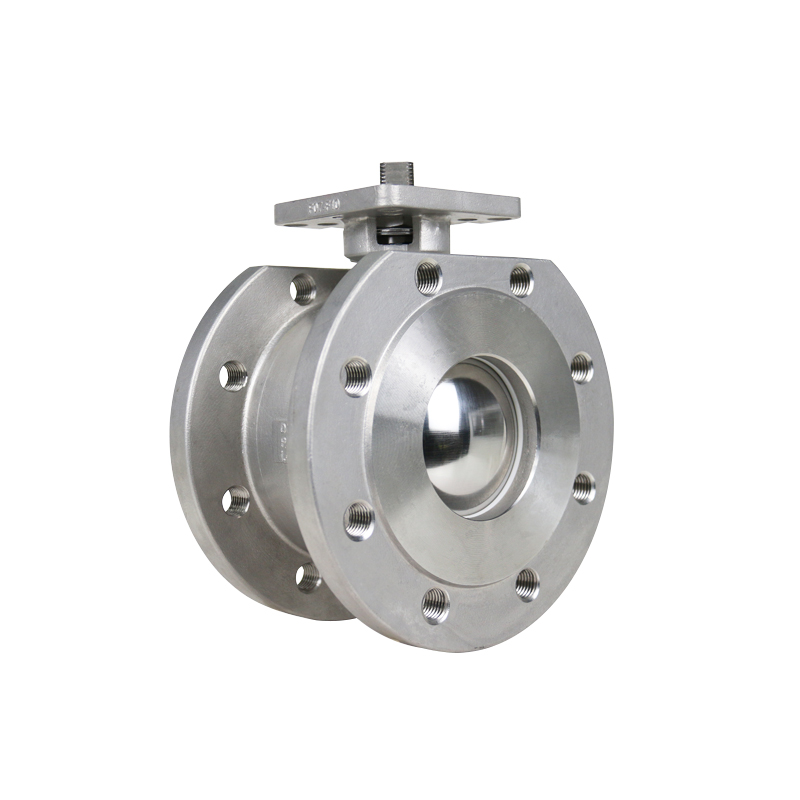

The GKV212 series flanged ball valve features an integrated valve body design, effectively minimizing leakage channels to ensure bubble-tight sealing performance while maintaining low operating torque for smooth and efficient operation.
For the ½"–2" size models, GEKO's specialized design process enables continuous internal pre-tightening of the packing, ensuring long-term sealing reliability and reduced maintenance requirements.
The 2½"–12" size models are equipped with an independent packing cover, allowing for quick and convenient adjustment without the need to disassemble the installation hardware or actuator, significantly simplifying maintenance procedures.
This robust and well-engineered valve series delivers exceptional sealing performance, durability, and ease of maintenance, making it suitable for a wide range of industrial applications
|
The packing cover of GKV212 ball valve adopts special engineering design and is carefully crafted to evenly distribute the load on the packing ring. This ensures optimal sealing performance while minimizing stress concentration that may lead to premature wear.
In order to maintain consistent sealing integrity, a continuous pre tightened gasket system is used for the packing configuration. This innovative feature allows for self-adjusting compression, dynamically compensating for thermal expansion, environmental fluctuations, and gradual wear over time. |
 |
The unique design of GKV212 Pneumatic Ball Valve One-Piece Flange End.
The GKV212 series rubber-lined valve seat flange ball valve features a forward preloading design, ensuring reliable low-pressure and vacuum sealing performance even under demanding conditions.
Its bidirectional bubble-tight sealing capability is guaranteed by high-quality rubber-lined valve seat materials, providing superior leak-proof performance in both flow directions.

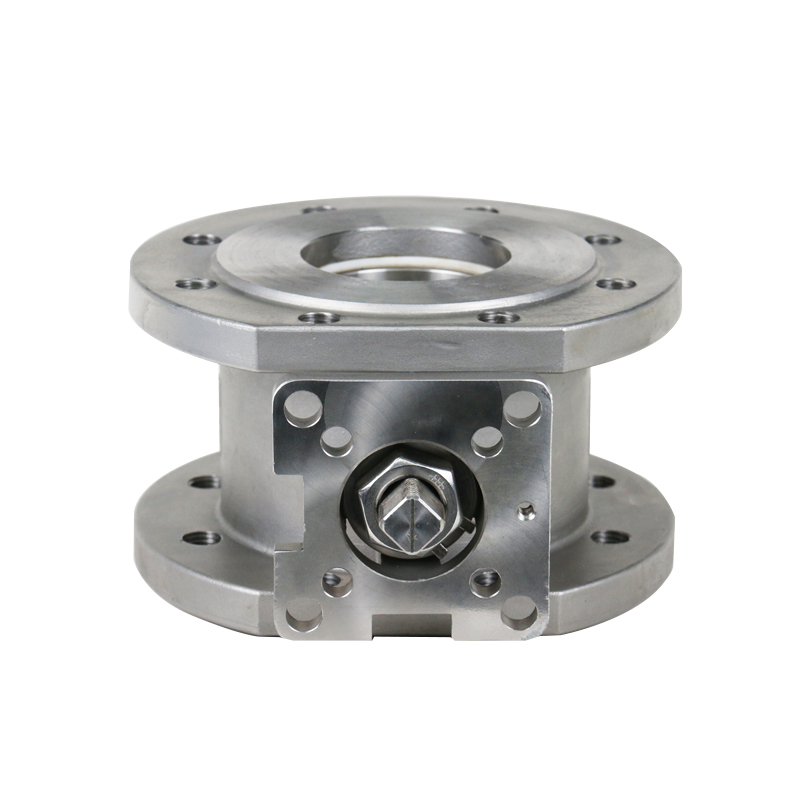

For ease of integration, the valve's connection platform complies with the ISO5211 standard, allowing seamless installation of various actuators to meet diverse automation requirements.

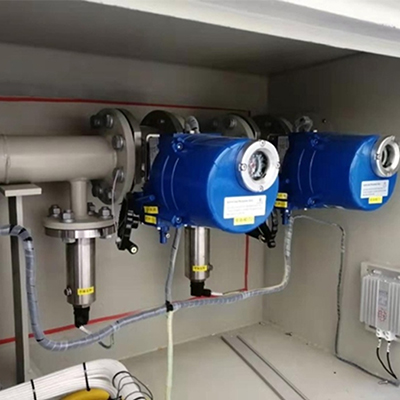

The GKV212 series one-piece flange ball valves find applications across multiple industries
Petrochemical and natural gas industries
Municipal water supply and HVAC engineering
Ship and Ocean Engineering
Environmental Protection and Industrial Water Treatment
