GKV125/126 The two-pieces threaded（extended) ball valve provides an economical solution to achieve zero leakage sealing at a pressure of 1000 psi, making it an ideal choice for many industrial applications. The manufacturing accuracy of its closure is very high, ensuring a tight seal.
|

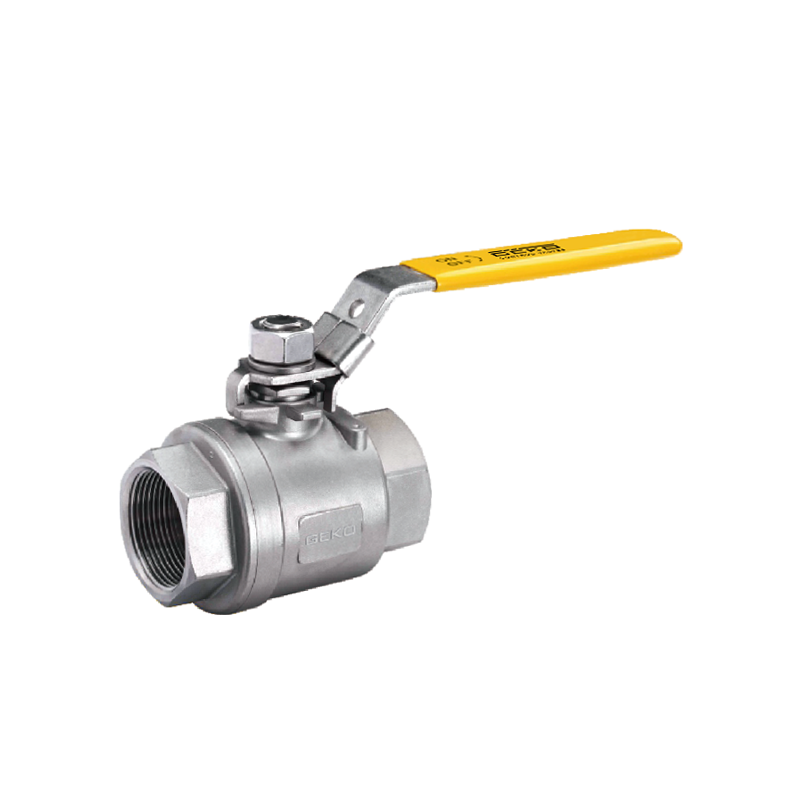

GKV125/126 FULL PORT TWO-PIECE BALL VALVE SCREWED END 1000WOG
|
|
|
Size Range 1/4" to 3"(8-80mm） |
Body Materials CF8, CF3, CF8M, CF3M, WCB, Copper Alloy |
|
Temperature Range -50°F to 450°F (-46°C to 232°C) |
Stem Materials ASTM A479 Gr 316 |
|
Maximum Allowable Operating Pressure 1000psi WOG |
Seat Materials DELRIN，RTFE |
|
Shutoff Rating Zero Leakage |
Ball Materials ASTM A351 Gr CF8M |
|
Body Style Two Piece |
Design Standard MSS SP-110 |
|
End Connections Internal Thread, External Thread, Welding, Sleeve, Clamp |
Testing standard MSS-SP 72 |
|
Ports Standard Port |
Connect Platform Low platform, Optional ISO5211 standard high platform |
|
Face To Face Manufacturers Standard |
Applications High pressure, Air, Water, Oil, Natural gas |
GEKO two-pieces threaded ball valve designed specifically for process industries
GEKO two-pieces high-pressure threaded two-stage ball valve adopts
Standard port design with hard chrome plated valve ball
And DELRIN seats can reduce operating torque and
Extend the service life.
Made of bottom mounted inlet anti blow valve stem
ASTM A479 316 stainless steel.
This series of ball valves adopts adjustable packing gland
To ensure sealing.
Adopting stainless steel safety lock handle and valve body
marked with casting furnace number, complete traceability
can be achieved.
Unique design of GEKO two-piece high-pressure threaded ball valve series
The two-stage cast carbon steel valve body of the GEKO two-piece high-pressure threaded ball valve series meets specifications and is coated with black phosphate to improve corrosion resistance. The two-stage cast stainless steel valve body undergoes investment casting and solution annealing, resulting in higher quality and greater strength.
The design of this series of valves complies with MSS-SP 72 standard and has been tested to comply with MSS-SS 72 standard.
GEKO two-piece high-pressure threaded ball valve is applied in multiple industries
Petrochemical and natural gas industries
Municipal water supply and HVAC engineering
Ship and Ocean Engineering
Environmental Protection and Industrial Water Treatment
GKV125/126 The two-pieces threaded（extended) ball valve provides an economical solution to achieve zero leakage sealing at a pressure of 1000 psi, making it an ideal choice for many industrial applications. The manufacturing accuracy of its closure is very high, ensuring a tight seal.
Read More
GKV-128 Two-Pieces Ball Valve 3000 WOG / 6000 WOG Thread End provide an economical solution to achieve zero leakage sealing at pressures up to 3000 psi or 6000 psi, making them an ideal choice for many industrial applications. The manufacturing accuracy of its closure is very high, ensuring a tight seal. The GKV-128 series valves are designed specifically for the process industry and perform well in high-pressure applications.
Read More
The GKV-225 series Two-Pieces Manual Ball Valve Direct Mounting Pad ISO5211 is an ASME B16.34 full bore ball valve from Class 150LB to Class 2500LB. The GKV-225 series ball valve features a sturdy and durable flange ball valve design, providing excellent value and reliable operation, suitable for various working conditions.
Read More
The GKV-225G series Pneumatic On-off Ball Valve flange trunnion ball valves are ASME B16.34 Class 150 and Class 300 full bore ball valves. The GKV-225G series trunnion mounted ball valve adopts a sturdy and durable flange ball valve design, with high cost-effectiveness and reliable operation, suitable for various working conditions.
Read More
GKV132 Three-Pieces Ball Valve Screwed End provides maximum flexibility through threading, socket welding, butt welding, flange end connections, and various high-performance seat materials.The three piece valve body design allows for simple online maintenance using replaceable components, thereby reducing maintenance costs and lowering total cost of ownership throughout the valve's entire lifecycle.
Read More
The GKV-133 series Stainless Steel Ball Valve Welded End can be made of precision cast CF8M (316L) stainless steel or WCB carbon steel material, with a swing type central valve body design for easy online maintenance.
Read More
The GKV135 series three pieces ball valve is designed for durability and precision, complying with API 607 and ASME B16.34 standards, featuring bubble level emergency seals, offering elastic metal base options, corrosion resistance, maintenance free, solid load stem packing, and stable performance in industrial applications.
Read More
The GKV-143 series three-way L-Port T-Port ball valve is designed according to ASME B16.34 standard, with a rated pressure of 1000psi (63bar), and has been tested to comply with API 598 standard. The GKV-143 series port ball multi valve provides solid reliability for high-pressure instruments in fluid and gas measurement applications.
Read More
