Name: 3-Way 4-Way Ball Valve Screwed End
Availability: InStock

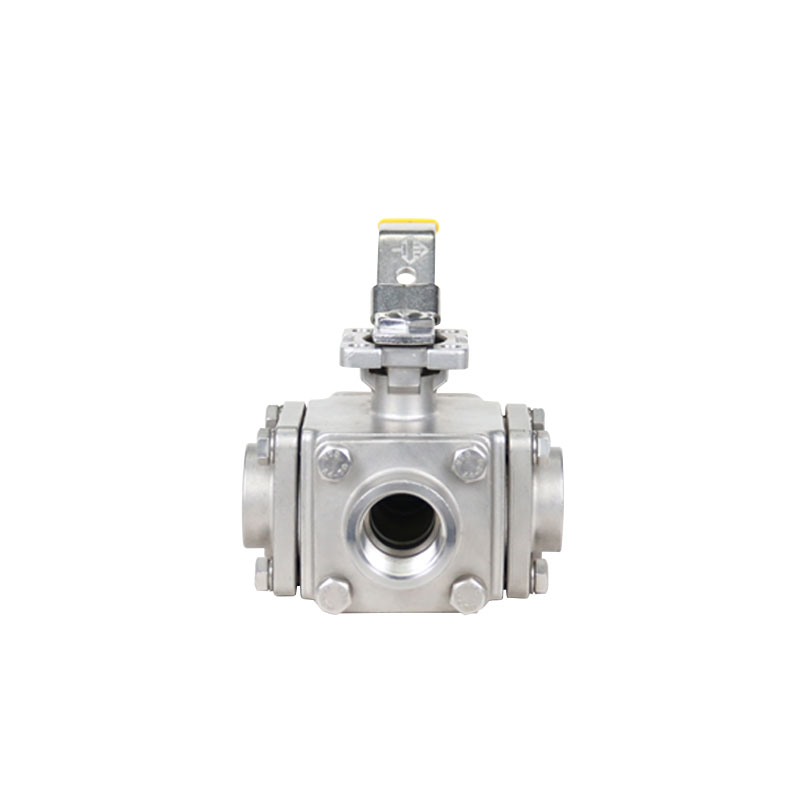

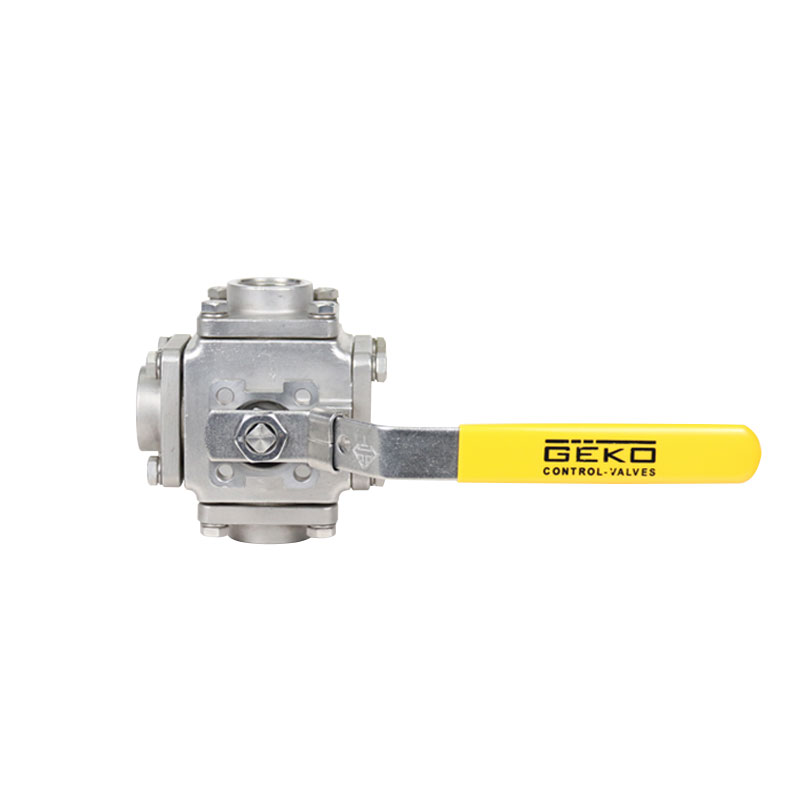

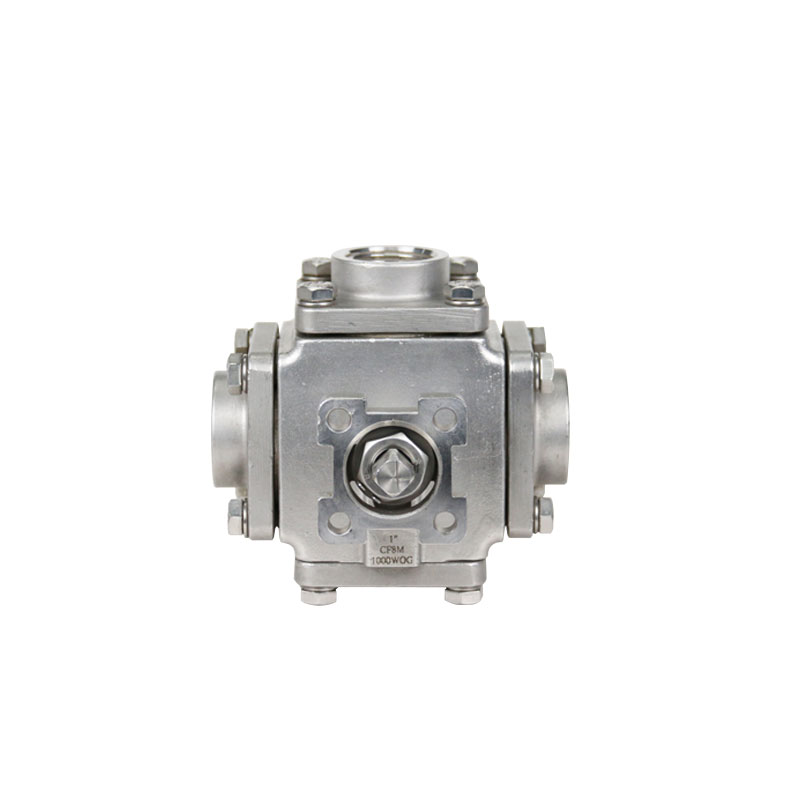

GKV-144 3-WAY 4-WAY BALL VALVE SCREWED END

Size Range

NPS 1/2" to 12",DN15 to DN 300

Body Materials

Stainless Steel (CF8M), Carbon Steel (WCB), Special Alloy

Temperature Range

-31°C to 232°C

Stem Materials

ASTM A479 Gr 316

Maximum Allowable Operating Pressure

ASME 150LB/ASME 300LB/PN10/PN16/PN25/PN40

Seat Materials

TFM1600/Tek-Fil®*/PEEK/RPTFE/UHMWPE

Shutoff Rating

Zero Leakage

Ball Materials

ASTM A351 Gr CF8M

Body Style

3 & 4 Way

Design Standard

ASME B16.34

End Connections

Threaded, Tri-Clamp, Socket Weld, Butt Weld, Flanged Ends per ASME B16.5

Testing standard

ASME B16.34

Ports

Full bore

Connect Platform

ISO5211

Face To Face

Manufacturer Standard

Applications

Diversion of flow to different locations

The 3-Way 4-Way Ball Valve Screwed End

Valve stem packing: 1/2 "-4" valves all use dynamic load valve stem packing devices to ensure reliable valve stem packing. By using Belleville washers, the valve stem packing can be automatically adjusted to compensate for temperature changes and normal wear. The 6 "-12" valve uses an independent packing box cover, which can be easily adjusted during valve use. The 1/2 "-2" valve also provides main stem packing and secondary stem packing. The main seal is composed of push washers and O-ring components. The adjustable valve stem packing forms a secondary seal between the valve stem and the valve body in the upper shaft neck area of the valve stem.

Four seat design: As standard, GKV-144 series valves are also equipped with an additional fourth seat. This valve seat is independently sealed to prevent leakage in the cavity area and maintain correct alignment of the sphere. The added valve seat integrates bidirectional control and closing functions into the same valve, with OFF positions located in both T-shaped and L-shaped port spheres. The GKV-144 series ball valve seat design ensures bi-directional bubble level sealing and low working torque.

Seat selection: Provides a range of seat materials to meet the needs of most

applications. TFM is a standard material for valve seats. Other options include

RPTFE, PTFE, UHMWPE, and Tek Fi ® (Carbon/graphite filled TFM). Tek-Fil ®

The valve seat provides less torque in high temperature, high cycle, and steam

applications.

Interchangeability: Many components, including ball, stem, seat, stem, and

valve body seals, can be interchanged between different models of valves of

the same size.

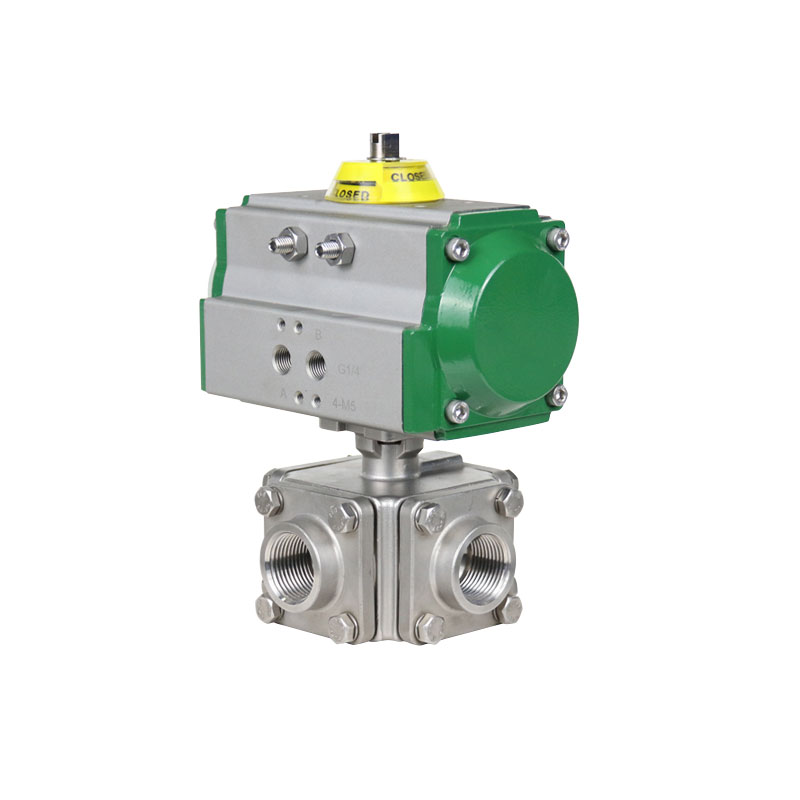

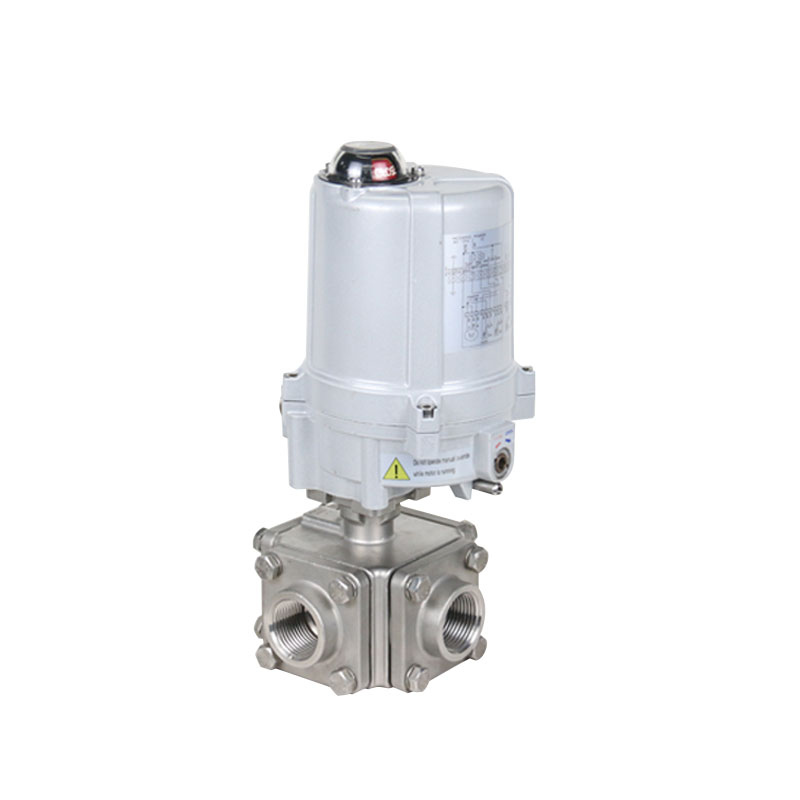

Unique design of GKV144 three-way and four-way ball valves

The integral casting of the upper flange ensures the correct installation

of the actuator. Under full load pressure conditions, the actuator device

can be easily and safely disassembled. The installation flange is designed

according to ISO 5211 standard and can be directly embedded for installation.

By changing the position of the travel limit pin bolt on the installation flange,

standard valves can achieve all flow modes.

Product Brochure

Soft sealed ball valve - English

GKV144 series three-way&four-way ball valves are used in multiple industries

Petrochemical and natural gas industries
The GKV-144 series three-way and four-way ball valves are widely used in refining and natural gas systems for pipeline cutting, liquefied natural gas flow control, and sulfur-containing medium diversion.
Municipal water supply and HVAC engineering
These full-bore valves with corrosion-resistant coatings and standard flange connections optimize flow efficiency in water supply, HVAC and district heating systems (-20°C~150°C).
Ship and Ocean Engineering
For the high salt spray environment of seawater, the valve body is made of 316 stainless steel and epoxy coating.
Environmental Protection and Industrial Water Treatment
Corrosion-resistant valves with soft seals and high-performance flange connections enable reliable chemical dosing,while reducing maintenance costs
