Double Seat Control Valve With Perforated Plug Design

GKV-225V port (V-ball type) rotary control valve combines the advantages of zero leakage Class VI bubble sealed ball valves with the high adjustability of control valves, making it suitable for various control valve applications and achieving excellent flow control, lower pressure drop, and fast response.  All V-ball control valves comply with multiple industry standards and certifications, including API 607, ATEX, NACE MR0175, PED, and SIL, ensuring reliability and compliance with international standards.

The GKV1800C Pneumatic single seat regulating valve is a high-precision process control valve that drives the linear displacement of the valve core through a pneumatic actuator, accurately adjusting the flow rate, pressure or temperature of the medium in the pipeline. Its single seat valve body structure (single sealing surface) design, combined with top guide or cage guide system, ensures stability and sealing under high pressure differential conditions, adapts to the continuous regulation requirements of harsh media such as liquids, gases, and steam, and is widely used in automation control systems in industries such as chemical, petroleum, and power, achieving millimeter level control of process parameters.

The GKV16N GKV18C GKV16H series intelligent electric control valve integrates high-precision electric actuators and intelligent control modules, adopts hardened sealing and corrosion-resistant valve bodies, and is widely used in chemical, energy, pharmaceutical and other fields.

GKV200/220 three-way regulating valve For extremely short on/off cycles in the cooling spray lines of wire rolling mills we developed these three-way on/off control valves. Already for several years they are performing excellently under these severe conditions and guarantee a long life cycle.

The GEKO Angular Control Valves of the series GKV3500 (PN 16 - 250) and GKV3800 (PN 16 - 400) are part of the well proven GEKO valve modular parts system. In case of difficult working conditions and sonic relevant applications it is often recommended to use angular valves, because the flow of the medium is turned only once by 90°, contrary to single or double seated valves.

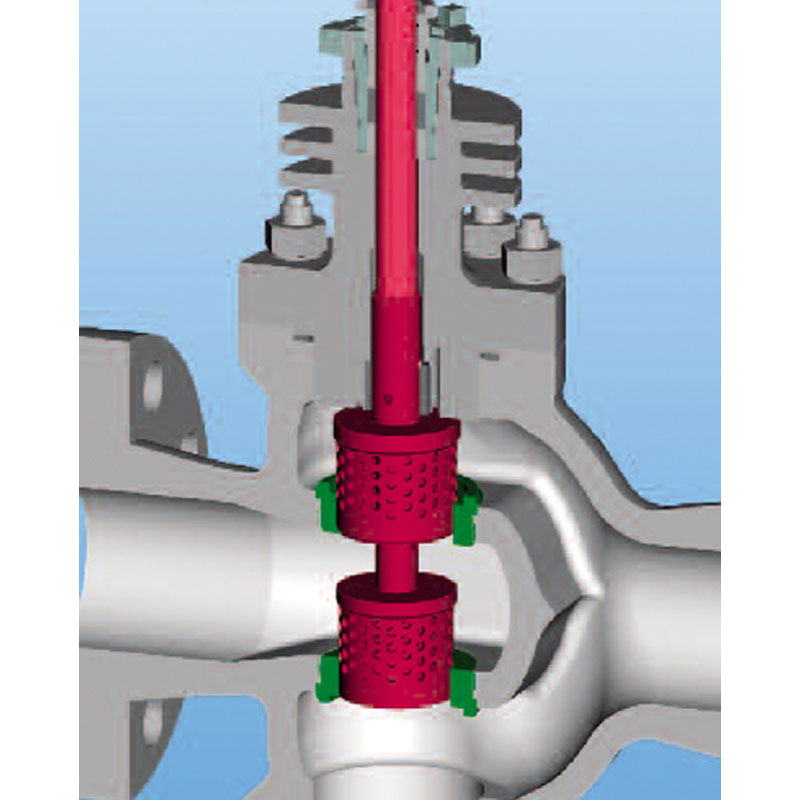

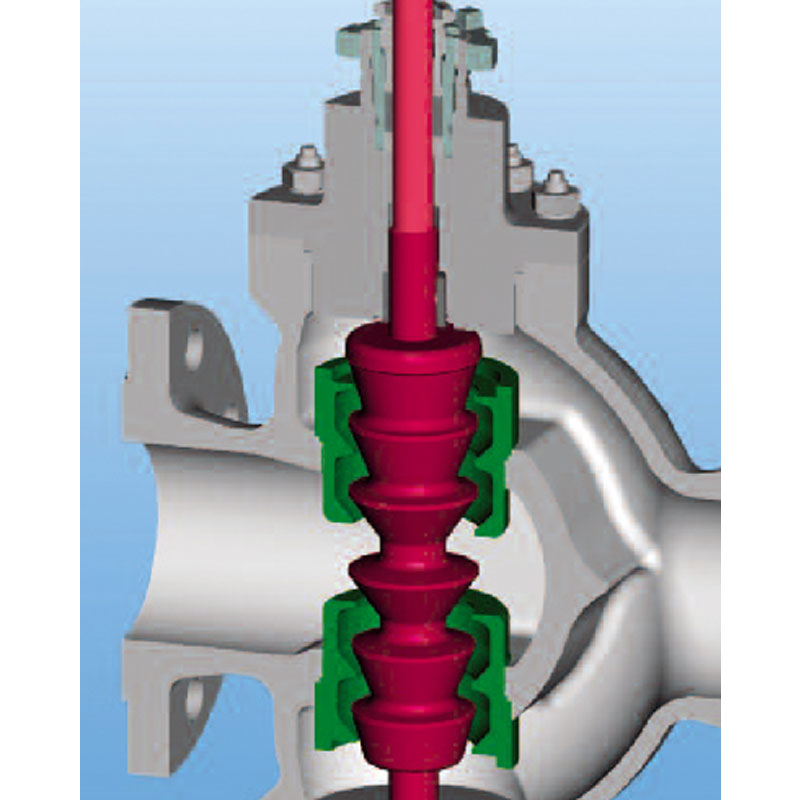

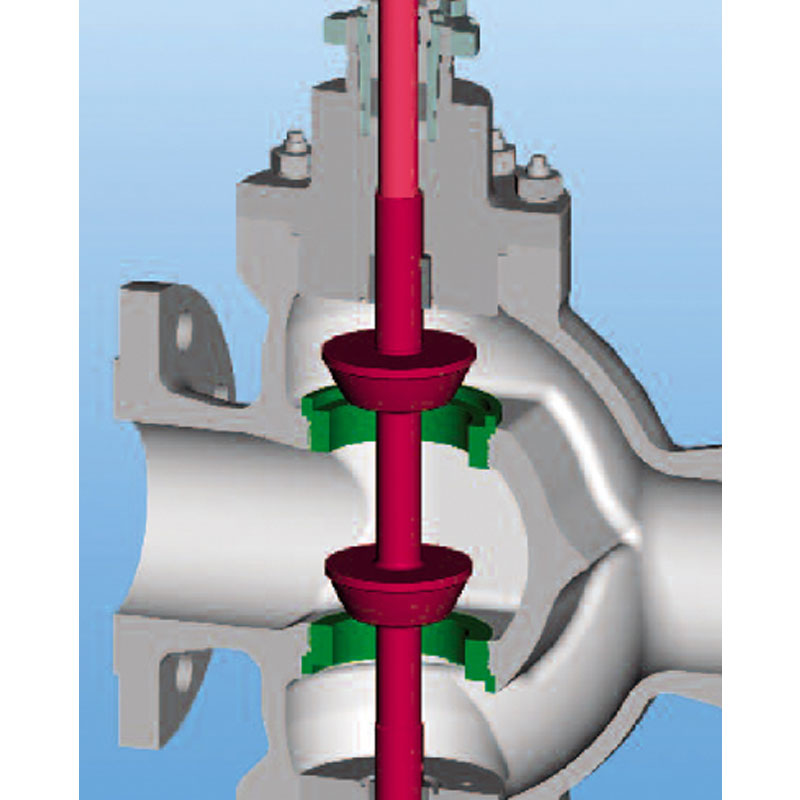

GKV2500/280 Series double seat control valves featuring both parabolic plug and perforated plug options. These valves provide precise fluid regulation, robust construction, and reliable operation in industrial applications. The parabolic plug design ensures smooth flow control, while the perforated plug design reduces noise and is ideal for high-pressure environments. Widely used in water treatment, chemical, and industrial process systems, Geko double seat valves deliver long service life and stable performance.
