V-Port Rotary Control Valve

GKV-128 Two-Pieces Ball Valve 3000 WOG / 6000 WOG Thread End provide an economical solution to achieve zero leakage sealing at pressures up to 3000 psi or 6000 psi, making them an ideal choice for many industrial applications. The manufacturing accuracy of its closure is very high, ensuring a tight seal.   The GKV-128 series valves are designed specifically for the process industry and perform well in high-pressure applications.

GKV132 Three-Pieces Ball Valve Screwed End provides maximum flexibility through threading, socket welding, butt welding, flange end connections, and various high-performance seat materials.The three piece valve body design allows for simple online maintenance using replaceable components, thereby reducing maintenance costs and lowering total cost of ownership throughout the valve's entire lifecycle.

The GKV-133 series Stainless Steel Ball Valve Welded End can be made of precision cast CF8M (316L) stainless steel or WCB carbon steel material, with a swing type central valve body design for easy online maintenance.

The GKV135 series three pieces ball valve is designed for durability and precision, complying with API 607 and ASME B16.34 standards, featuring bubble level emergency seals, offering elastic metal base options, corrosion resistance, maintenance free, solid load stem packing, and stable performance in industrial applications.

The GKV-143 series three-way  L-Port T-Port ball valve is designed according to ASME B16.34 standard, with a rated pressure of 1000psi (63bar), and has been tested to comply with API 598 standard.   The GKV-143 series port ball multi valve provides solid reliability for high-pressure instruments in fluid and gas measurement applications.

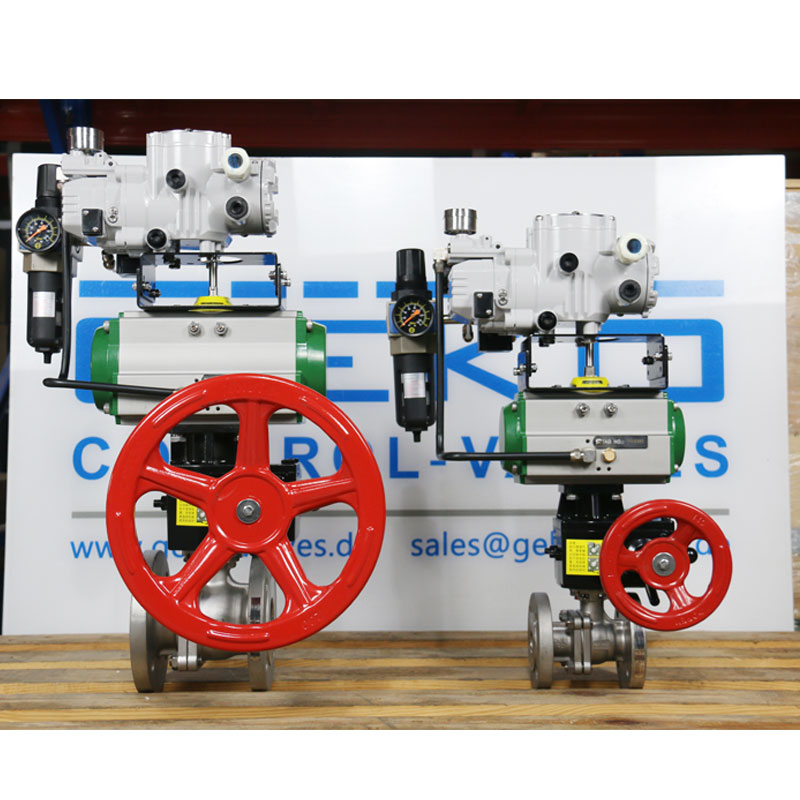

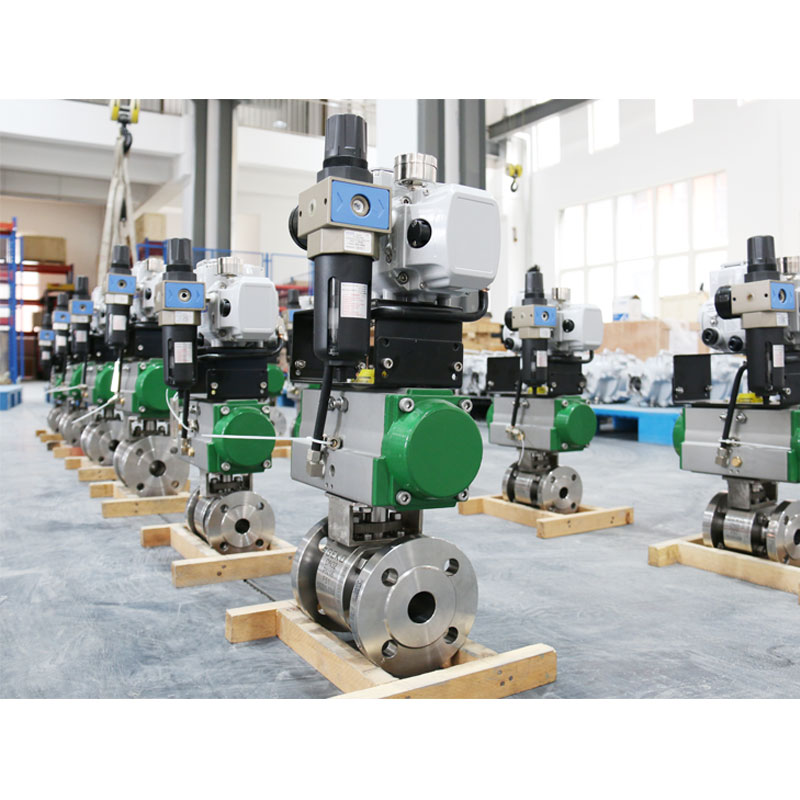

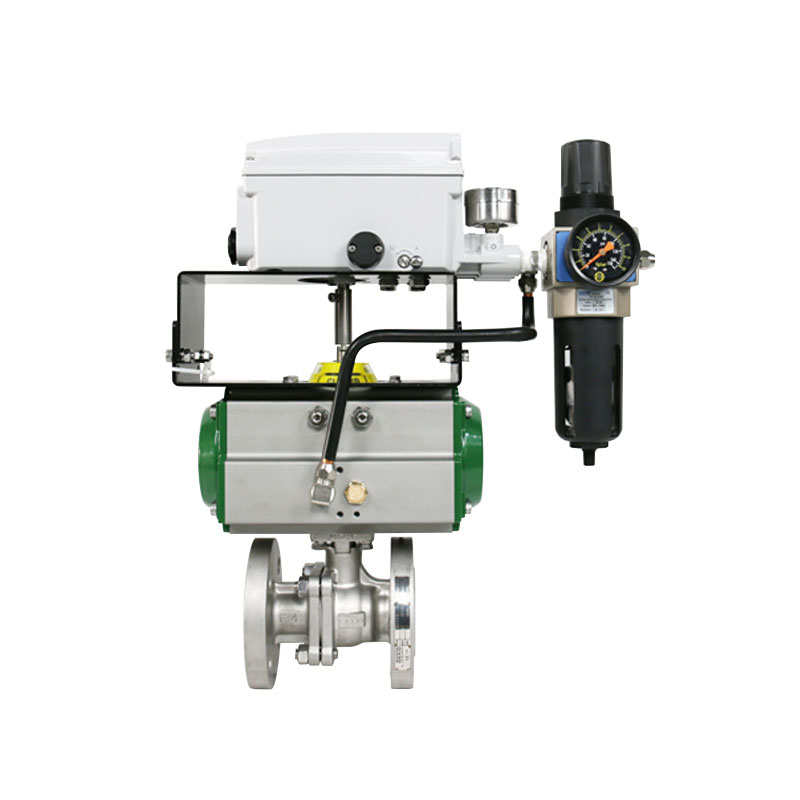

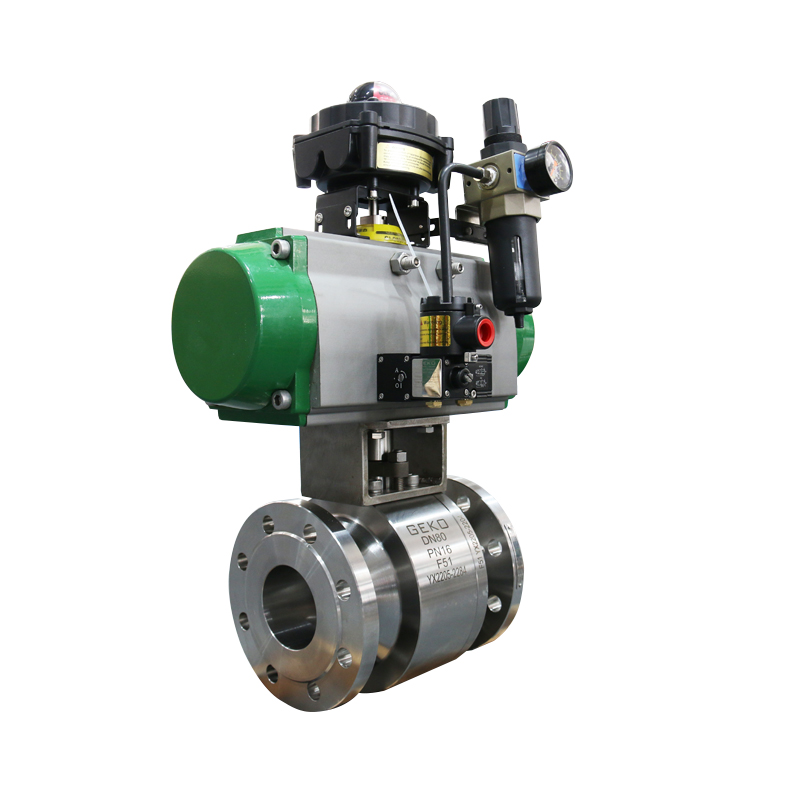

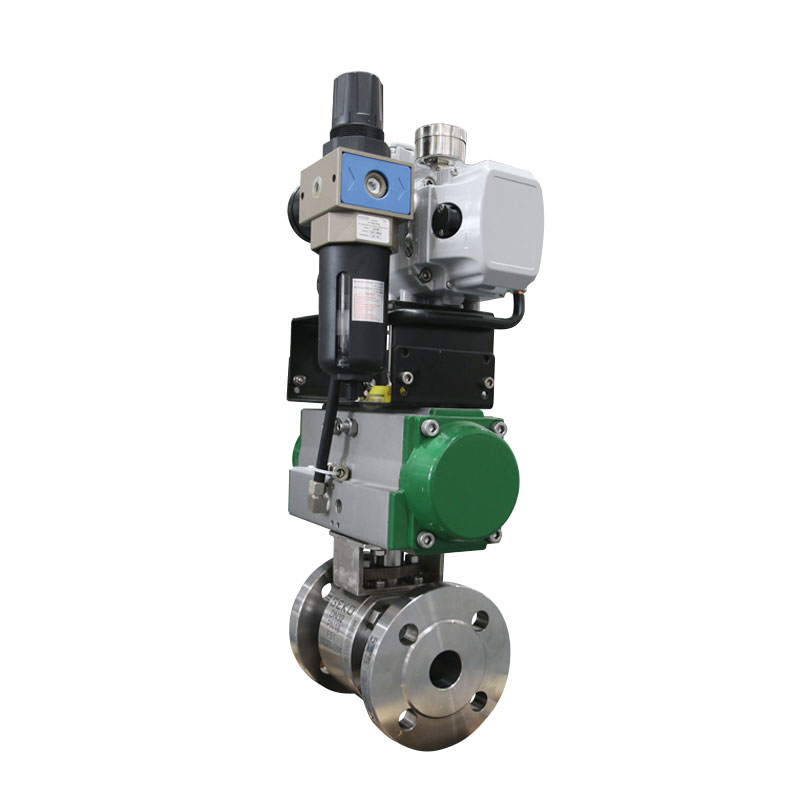

GKV-225V port (V-ball type) rotary control valve combines the advantages of zero leakage Class VI bubble sealed ball valves with the high adjustability of control valves, making it suitable for various control valve applications and achieving excellent flow control, lower pressure drop, and fast response.  All V-ball control valves comply with multiple industry standards and certifications, including API 607, ATEX, NACE MR0175, PED, and SIL, ensuring reliability and compliance with international standards.

The GKV1800C Pneumatic single seat regulating valve is a high-precision process control valve that drives the linear displacement of the valve core through a pneumatic actuator, accurately adjusting the flow rate, pressure or temperature of the medium in the pipeline. Its single seat valve body structure (single sealing surface) design, combined with top guide or cage guide system, ensures stability and sealing under high pressure differential conditions, adapts to the continuous regulation requirements of harsh media such as liquids, gases, and steam, and is widely used in automation control systems in industries such as chemical, petroleum, and power, achieving millimeter level control of process parameters.

The GKV16N GKV18C GKV16H series intelligent electric control valve integrates high-precision electric actuators and intelligent control modules, adopts hardened sealing and corrosion-resistant valve bodies, and is widely used in chemical, energy, pharmaceutical and other fields.

GKV200/220 three-way regulating valve For extremely short on/off cycles in the cooling spray lines of wire rolling mills we developed these three-way on/off control valves. Already for several years they are performing excellently under these severe conditions and guarantee a long life cycle.

The GEKO Angular Control Valves of the series GKV3500 (PN 16 - 250) and GKV3800 (PN 16 - 400) are part of the well proven GEKO valve modular parts system. In case of difficult working conditions and sonic relevant applications it is often recommended to use angular valves, because the flow of the medium is turned only once by 90°, contrary to single or double seated valves.
